8 IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02
IDS404 INSTALLER MANUAL

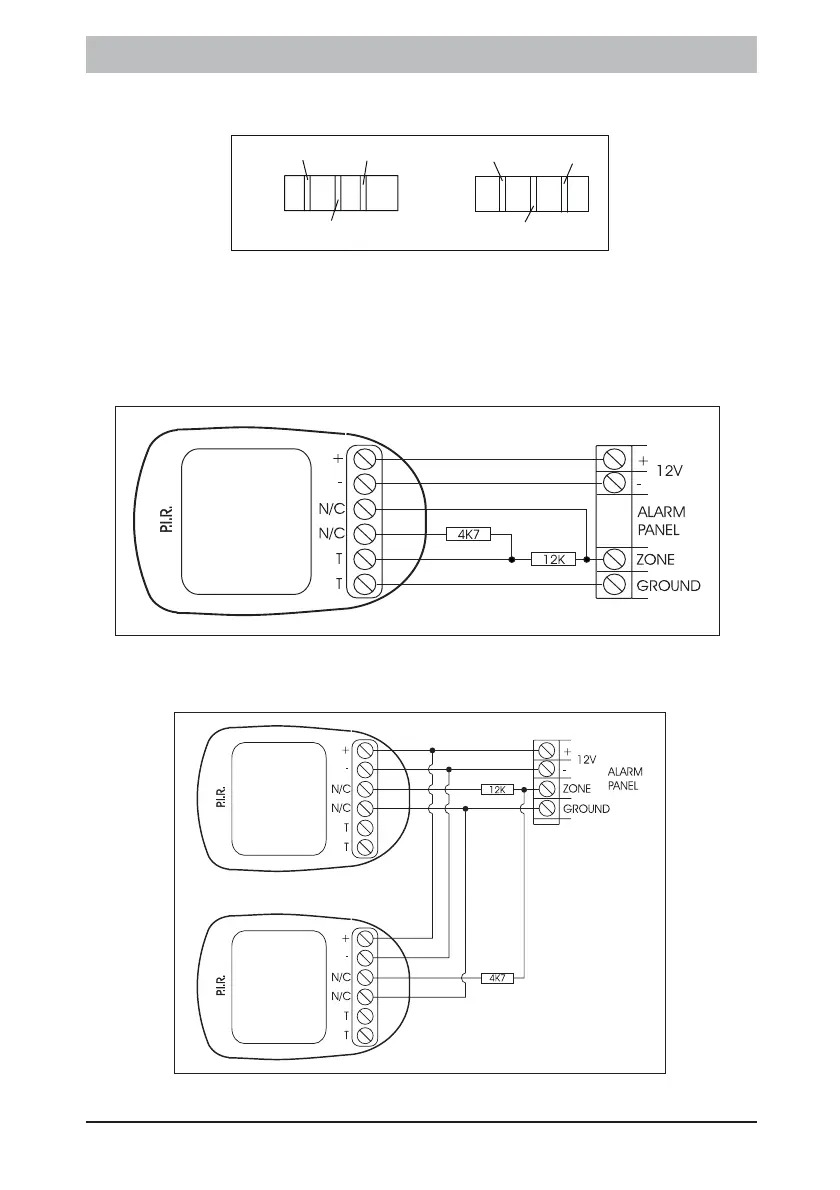

Figure 2: Resistors used for Tamper per Zone and Zone doubling
Purple
Brown
Orange
Red
12K
4K7
Yellow
Red
NOTE: The 4K7 and 12K zone doubling resistors are not included with
the panel but may be obtained from your local IDS distributor.
Figure 3: Tamper per Zone Connection
Figure 4: Connection for Zone Doubling
