Inovance IS650P Series - Parameter Setting

3 Keypad and Display
3
- 25 -
3.2 Keypad Display
The keypad can display the running status, parameter, faults, and monitored information during running of
the servo drive.
● Status display: Displays the current servo drive status, such as servo ready or running.
● Parameter display: Displays function codes and their values.
● Fault display: Displays the fault and warnings occurring in the servo drive.
● Monitoring display: Displays the current running parameters of the servo drive.
3.2.1 Display Switchover

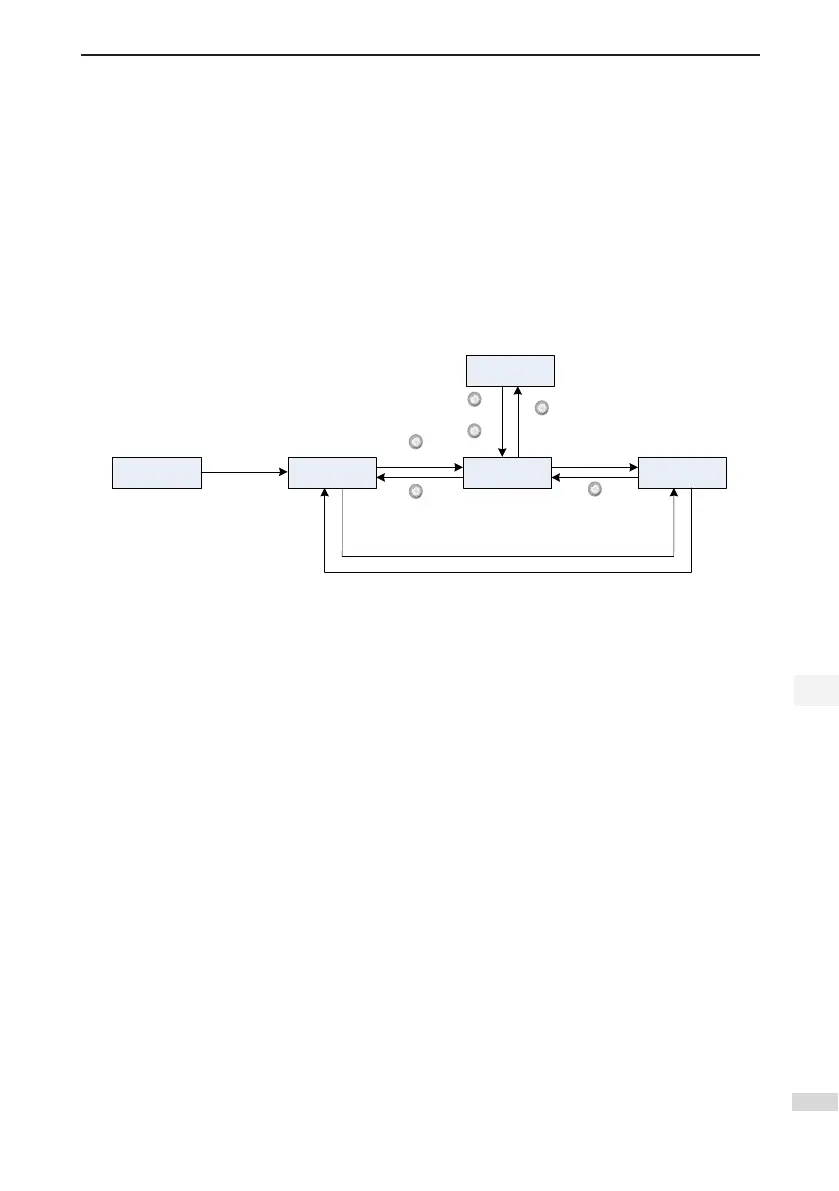

Figure 3-2 Switching between different display
Power-on
Status
display
Parameter
display
Monitoring
display
Fault display
MODE
Switch to
group H0B
MODE
MODE
MODE
MODE
SET
Motor static
After you set H02-32, the keypad switches over
the display automatically after motor rotation.
● After the power is on, the keypad enters the status display mode.
● Press key MODE to switch over between different modes, as shown in the preceding gure.
● In status display mode, set H02-32 and select the monitored parameters. When the motor rotates,
the keypad automatically switches over to monitoring display. After the motor becomes stopped, the
keypad automatically restores to status display.
● In parameter display mode, set group H0B and select the parameters to be monitored, and the keypad
switches over to the monitoring display mode.
● Once a fault occurs, the keypad immediately enters the fault display mode, and all 5-digit LEDs blink.
Press key SET to stop blinking, and then press key MODE to switch over to the parameter display
mode.
