Description of Function Codes
MD380 User Manual
- 168 -

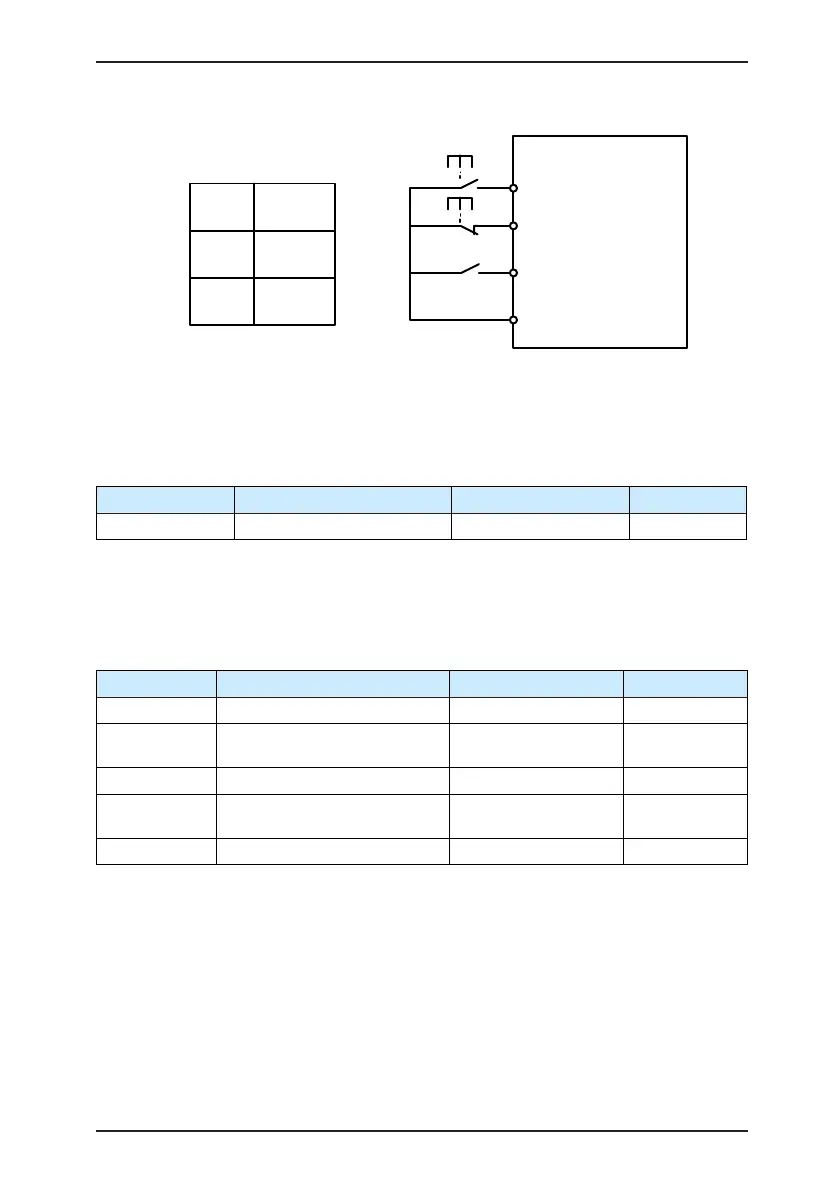

Figure 6-10 Setting of three-line mode 2
MD380
DI1
COM Digital common
DI2
RUN command
Running direction
DI3
Stop running
SB1
SB2
K
Running
direction
K
0
1
Forward
Reverse
RUN
button
Stop
button
As shown in the preceding gure, if SB1 is ON, the AC drive starts running when SB2 is
pressed to be ON; the AC drive instructs forward rotation when K is OFF and instructs
reverse rotation when K is ON. The AC drive stops immediately after SB1 becomes
OFF. During normal startup and running, SB1 must remain ON. The AC drive's running
state is determined by the nal actions of SB1, SB2 and K.
Function Code Parameter Name Setting Range Default
F4-12 Terminal UP/DOWN rate 0.01–65.535 Hz/s 1.00 Hz/s
It is used to adjust the rate of change of frequency when the frequency is adjusted by means
of terminal UP/DOWN.
• If F0-22 (Frequency reference resolution) is 2, the setting range is 0.001–65.535 Hz/s.
• If F0-22 (Frequency reference resolution) is 1, the setting range is 0.01–655.35 Hz/s.
Function Code Parameter Name Setting Range Default
F4-13 AI curve 1 minimum input 0.00 V to F4-15 0.00 V
F4-14
Corresponding setting of AI
curve 1 minimum input
-100.00%–100.0% 0.0%
F4-15 AI curve 1 maximum input F4-13 to 10.00 V 10.00 V
F4-16
Corresponding setting of AI
curve 1 maximum input
-100.00%–100.0% 100.0%
F4-17 AI1 lter time 0.00–10.00s 0.10s
These parameters are used to dene the relationship between the analog input voltage and
the corresponding setting. When the analog input voltage exceeds the maximum value (F4-
15), the maximum value is used. When the analog input voltage is less than the minimum
value (F4-13), the value set in F4-34 (Setting for AI less than minimum input) is used.
When the analog input is current input, 1 mA current corresponds to 0.5 V voltage.
F4-17 (AI1 lter time) is used to set the software lter time of AI1. If the analog input is liable
to interference, increase the value of this parameter to stabilize the detected analog input.
However, increase of the AI lter time will slow the response of analog detection. Set this
parameter properly based on actual conditions.
