MD380 User Manual Desc
ription of Function Codes
- 185 -
Function
Code
Parameter
Name
Setting Range Default

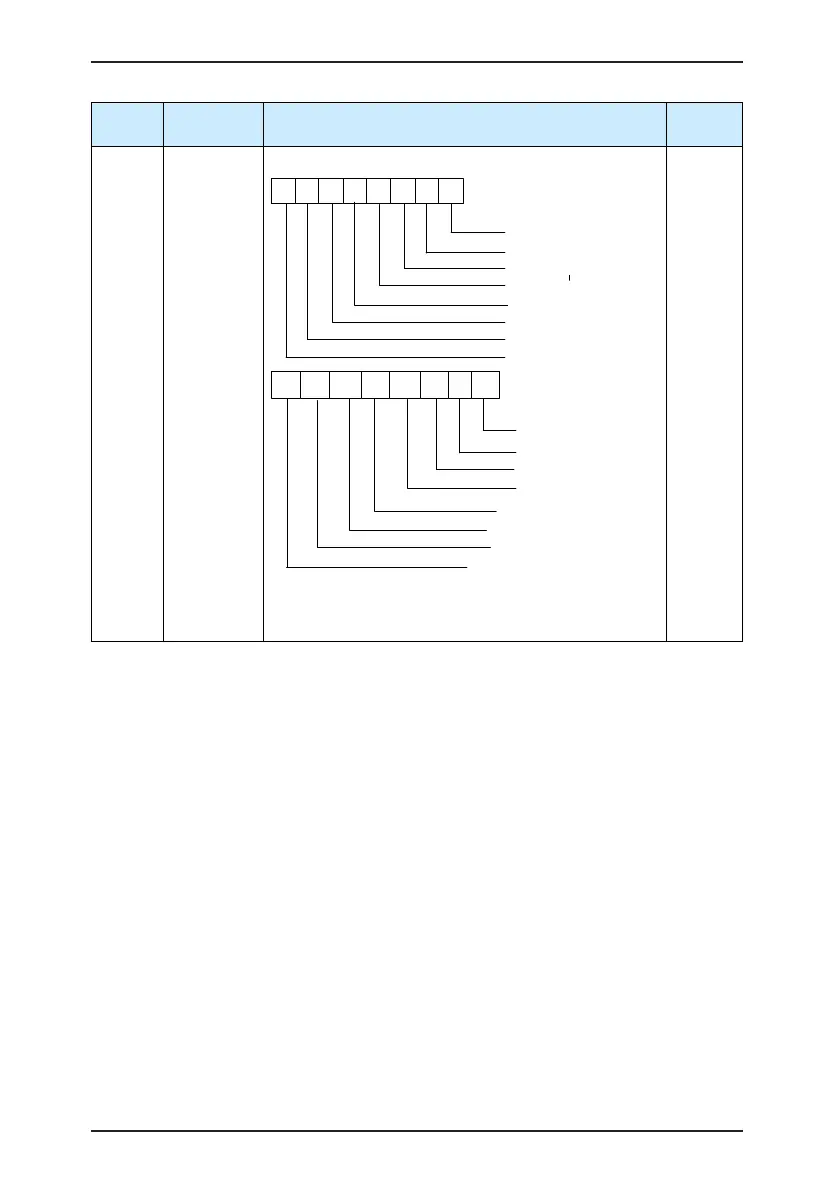

F7-04
LED display
running
parameters 2
0000–FFFF
7 6 5 4 3 2 1
0
PID feedback
PLC stage
Pulse setting frequency (kHz)
Running frequency 2
Remaining running time
AI1 voltage before correction
AI2 voltage before correction
AI3 voltage before correction
15 14 12 11 10 9 8
Linear speed
Current power-on time (Hour)
Current running time (Minute)
Pulse setting frequency (Hz)
Communication setting value
Encoder feedback speed (Hz)
Main frequency X display (Hz)
Auxiliary frequency Y display (Hz)
13
If a parameter needs to be displayed during the running,
set the corresponding bit to 1, and set F7-03 to the
hexadecimal equivalent of this binary number.
0
These two parameters are used to set the parameters that can be viewed when the AC
drive is in the running state. You can view a maximum of 32 running state parameters that
are displayed from the lowest bit of F7-03.
