Description of Function Codes
MD380 User Manual
- 202 -

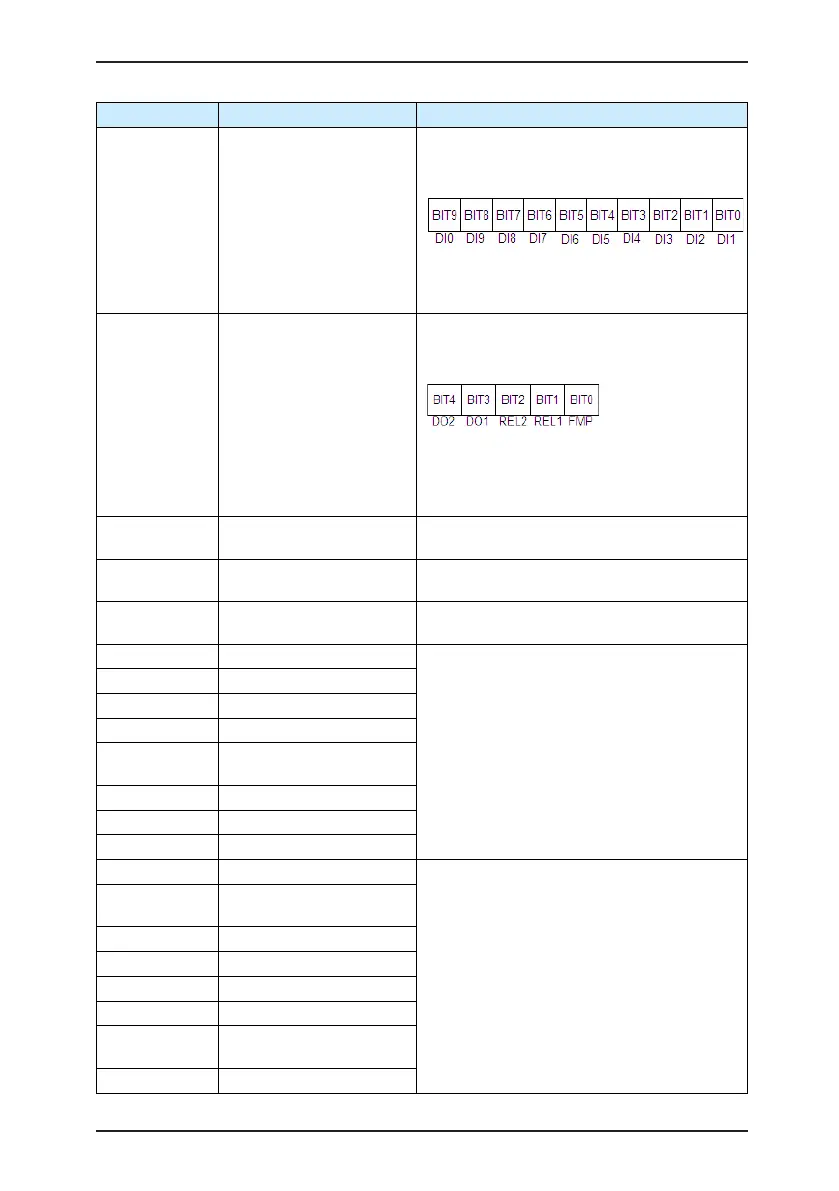

Function Code Parameter Name Description
F9-20 DI status upon 3rd fault
It displays the status of all DI terminals when
the latest fault occurs.
The sequence is as follows:
If a DI is ON, the setting is 1. If the DI is OFF,
the setting is 0. The value is the equivalent
decimal number converted from the DI status..
F9-21
Output terminal status
upon 3rd fault
It displays the status of all output terminals
when the latest fault occurs.
The sequence is as follows:
If an output terminal is ON, the setting is 1.
If the output terminal is OFF, the setting is 0.
The value is the equivalent decimal number
converted from the DI statuses.
F9-22
AC drive status upon 3rd
fault
Reserved
F9-23
Power-on time upon 3rd
fault
It displays the present power-on time when the
latest fault occurs.
F9-24
Running time upon 3rd
fault
It displays the present running time when the
latest fault occurs.
F9-27 Frequency upon 2nd fault
Same as F9-17–F9-24.
F9-28 Current upon 2nd fault
F9-29 Bus voltage upon 2nd fault
F9-30 DI status upon 2nd fault
F9-31
Output terminal status
upon 2nd fault
F9-32 Frequency upon 2nd fault
F9-33 Current upon 2nd fault
F9-34 Bus voltage upon 2nd fault
F9-37 DI status upon 1st fault
Same as F9-17–F9-24.
F9-38
Output terminal status
upon 1st fault
F9-39 Frequency upon 1st fault
F9-40 Current upon 1st fault
F9-41 Bus voltage upon 3rd fault
F9-42 DI status upon 1st fault
F9-43
Output terminal status
upon 1st fault
F9-44 Frequency upon 1st fault
