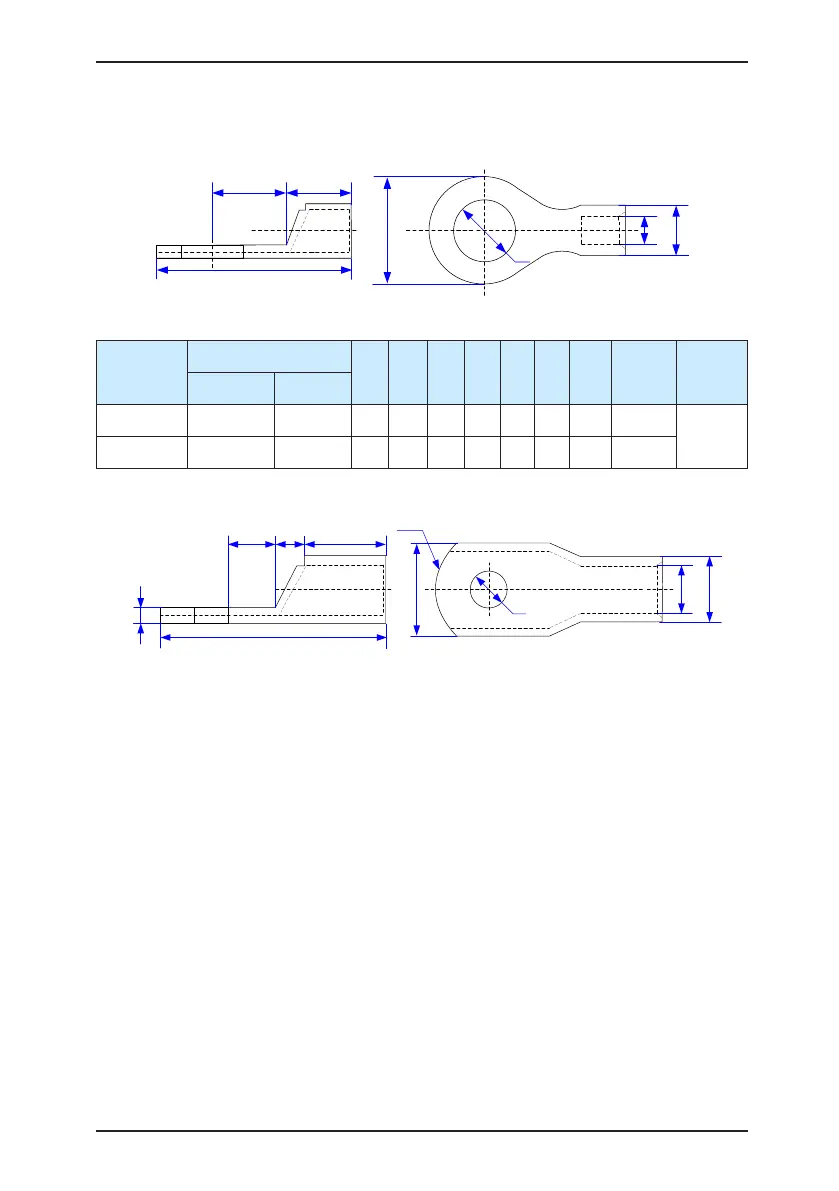

The following gure shows the dimensions of recommended cable lugs
Figure 8-13 Dimensions of recommended TNR series cable lugs
L
B
d2
d1
D
E
F
Table 8-12 Models and dimensions of the TNR series cable lugs
Model
Cable Range
D d1 E F B d2 L
Current
A
Crimping
Tool
AWG/MCM mm
2
TNR0.75-4 22-16 0.25-1.0 2.8 1.3 4.5 6.6 8.0 4.3 15.0 10
RYO-8
AK-1M
TNR1.25-4 22-16 0.25-1.65 3.4 1.7 4.5 7.3 8 5.3 15.8 19
Figure 8-14 Dimensions of recommended GTNR series cable lugs
B
d1 D
d2
R
L
F
H K E
