MD380 User Manual Selection and Dimensions
- 273 -

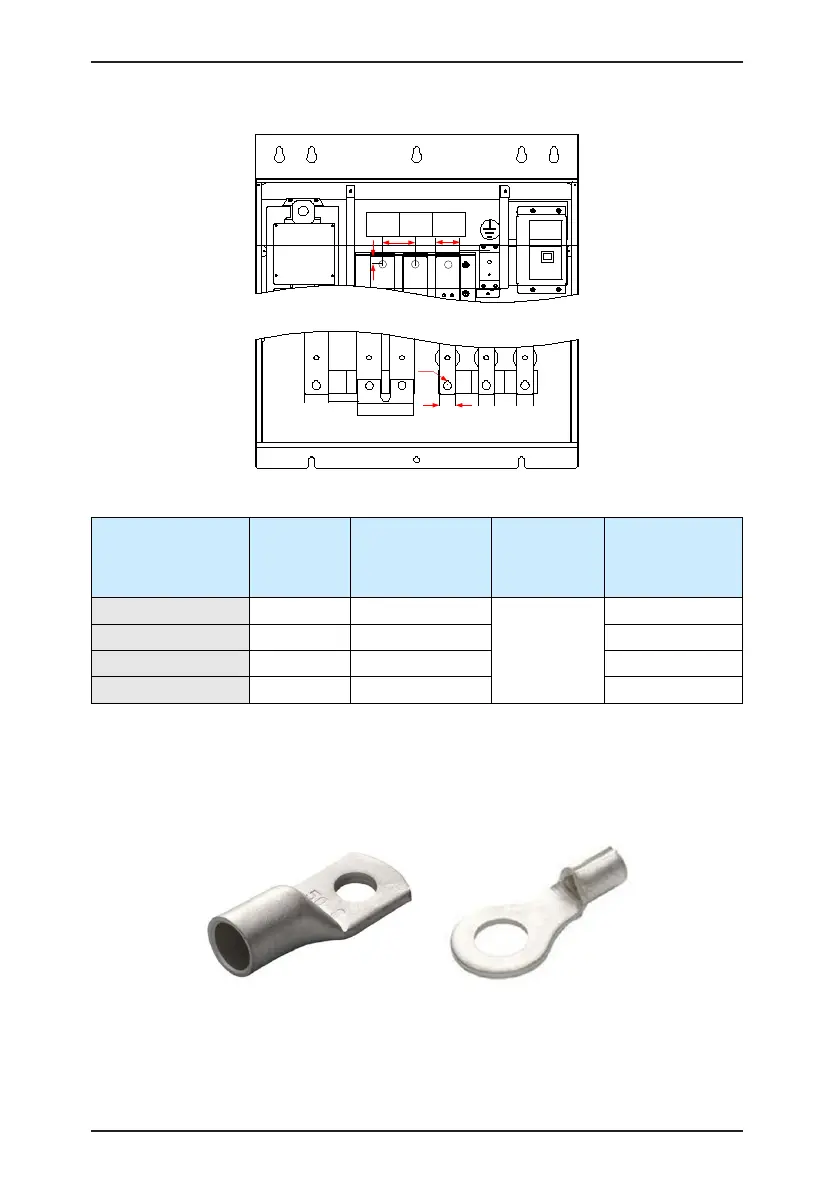

Figure 8-11 Dimensions of power terminals of the MD380 (size J)
Table 8-11 Recommended cable diameter and cable lug model (size I)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm2)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380T355G 665.00 185 x 2
85
GTNR185-16
MD380T400G 785.00 240 x 2 GTNR240-16
MD380-5T355G 665.00 185 x 2 GTNR185-16
MD380-5T400G 785.00 240 x 2 GTNR240-16
Reference information about the recommended cable lug (Suzhou Yuanli Metal Enterprise)
is provided in the following part.
The following gure shows appearance of recommended cable lugs
Figure 8-12 Appearance of recommended cable lugs
