Selection and Dimensions MD380 User Manual
- 272 -

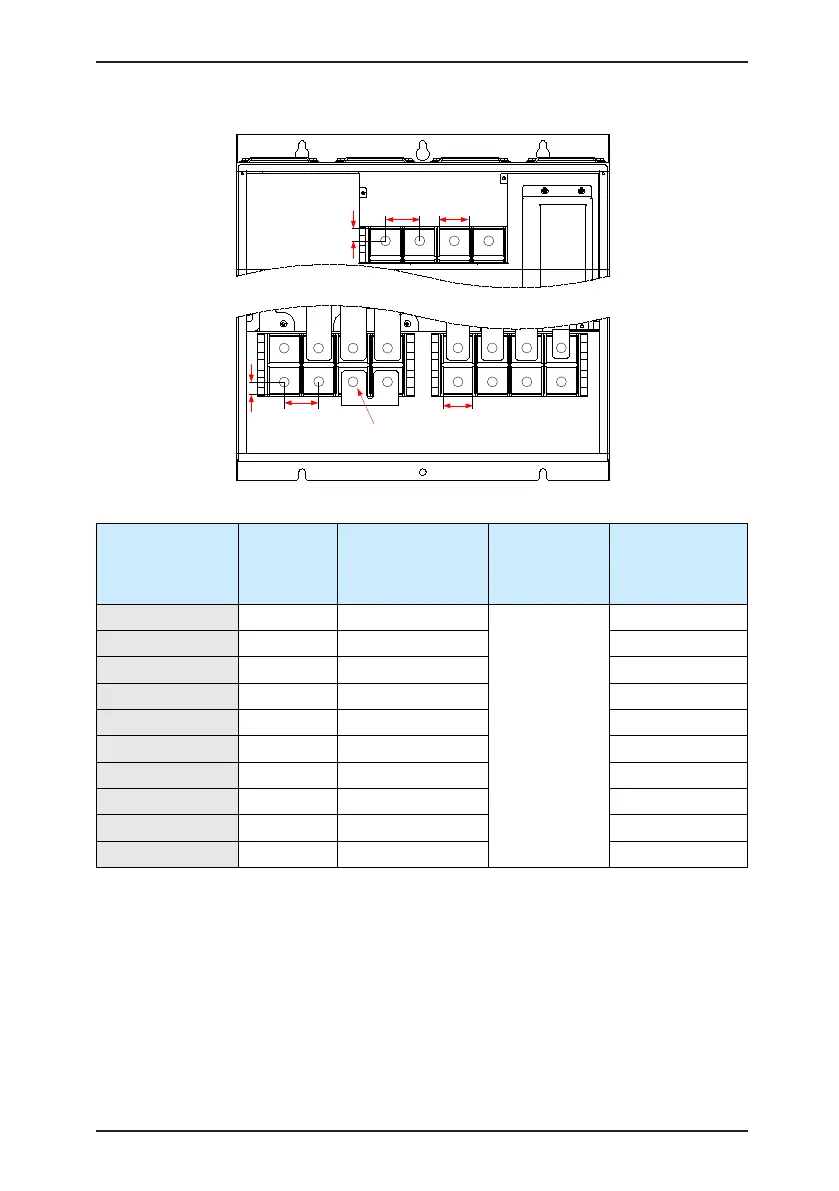

Figure 8-10 Dimensions of power terminals of the MD380 (size I)
22
60
52
60 52
22
M16 combination scew
Table 8-10 Recommended cable diameter and cable lug model (size I)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm2)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380T200G 385.00 185
85
GTNR185-16
MD380T220G 430.00 240 GTNR240-16
MD380T250G 468.00 120 x 2 GTNR120-16
MD380T280G 525.00 120 x 2 GTNR120-16
MD380T315G 590.00 150 x 2 GTNR150-16
MD380-5T200G 385.00 185 GTNR185-16
MD380-5T220 430.00 240 GTNR240-16
MD380-5T250G 468.00 120 x 2 GTNR120-16
MD380-5T280G 525.00 120 x 2 GTNR120-16
MD380-5T315G 590.00 150 x 2 GTNR150-16
