MD380 User Manual Selection and Dimensions
- 271 -

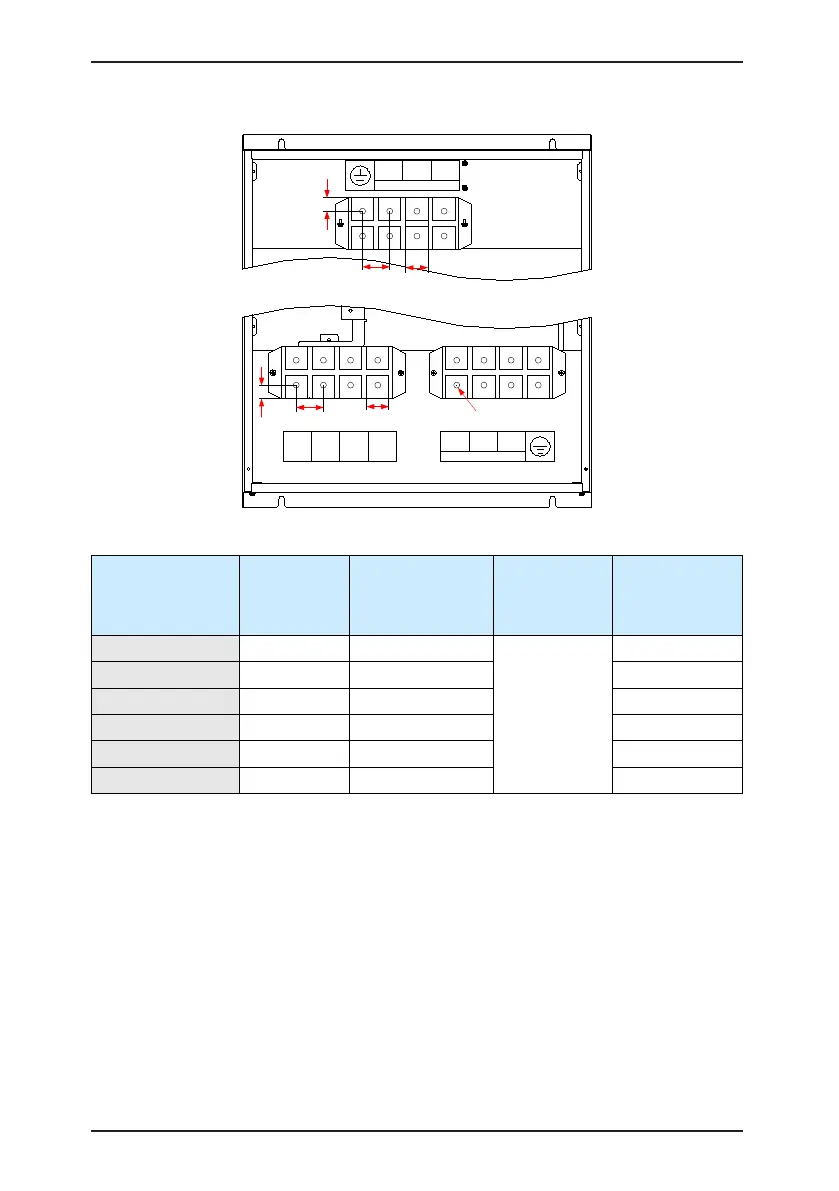

Figure 8-9 Dimensions of power terminals of the MD380 (size H)
22.8
45
M10 combination screw
37
22.8
45
37
R S T
POWER
U V W
MOTOR
(-) (+)
P
Table 8-9 Recommended cable diameter and cable lug model (size H)
AC Drive Model
Rated Input
Current (A)
Recommended
Output Power
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug
Model
MD380T110G 214.00 120
20
GTNR120-12
MD380T132G 256.00 120 GTNR120-12
MD380T160G 307.00 150 GTNR150-12
MD380-5T110G 214.00 120 GTNR120-12
MD380-5T132G 256.00 120 GTNR120-12
MD380-5T160G 307.00 150 GTNR150-12
