Mechanical and Electrical Installation MD380 User Manual
- 34 -

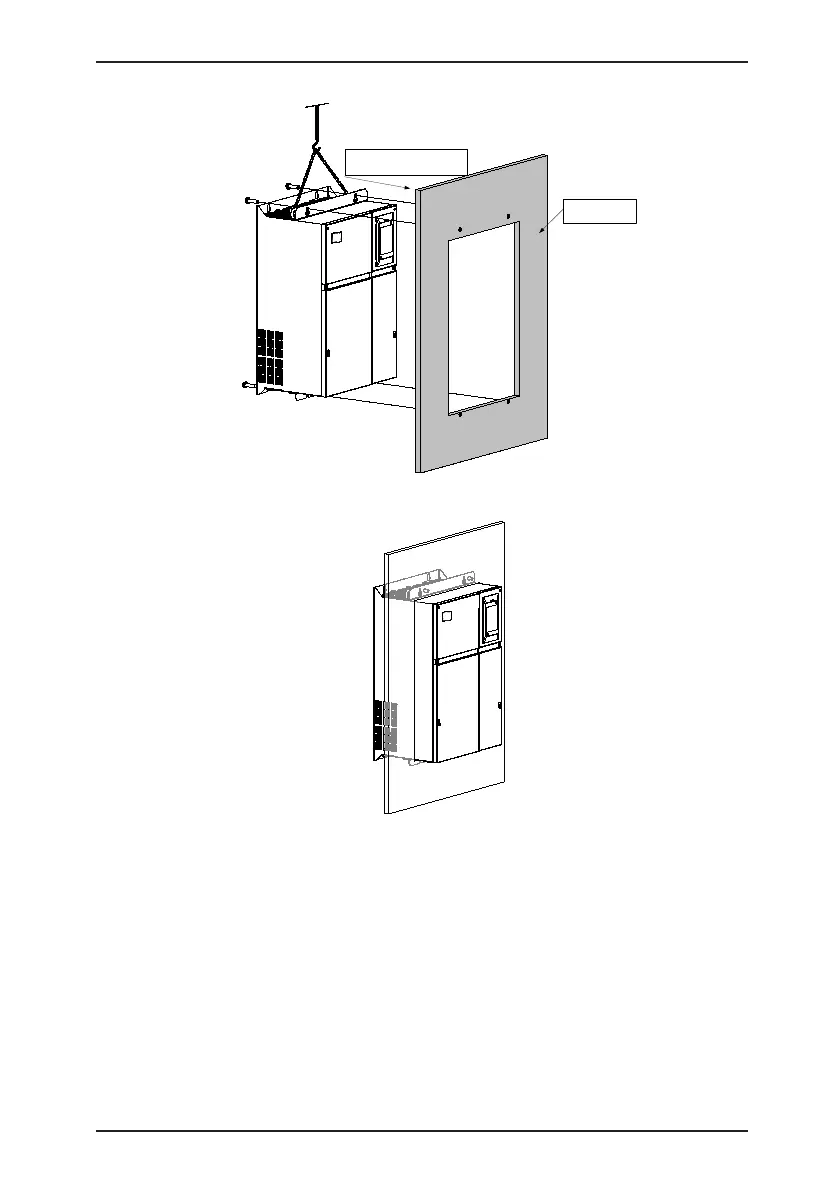

Install the AC drive from the
back of the control cabinet.
Back panel of
control cabinet
Figure 3-11 Embedded installation effect of the MD380 (sheet metal housing)
■
Installation Precautions
1) Reserve the installation clearances as specified in Figure 3-1 to ensure sufficient
space for heat dissipation. Take heat dissipation of other parts in the cabinet into
consideration.
2) Install the AC drives upright to facilitate heat dissipation. If multiple AC drives are
installed in the cabinet, install them side by side. If one row of AC drives need to be
installed above another row, install an insulation guide plate, as shown in Figure 3-2.
3) Use the incombustible material for the installation support.
4) It is suggested to increase the IP level of the cabinet in scenarios with heavy metal
powder. For example, seal the cabinet door and attach a lter to the cooling fan.
