MD380 User Manual Mechanical and Electrical Installation
- 33 -
3) Wall-mounting installation of the MD380 (sheet metal housing)

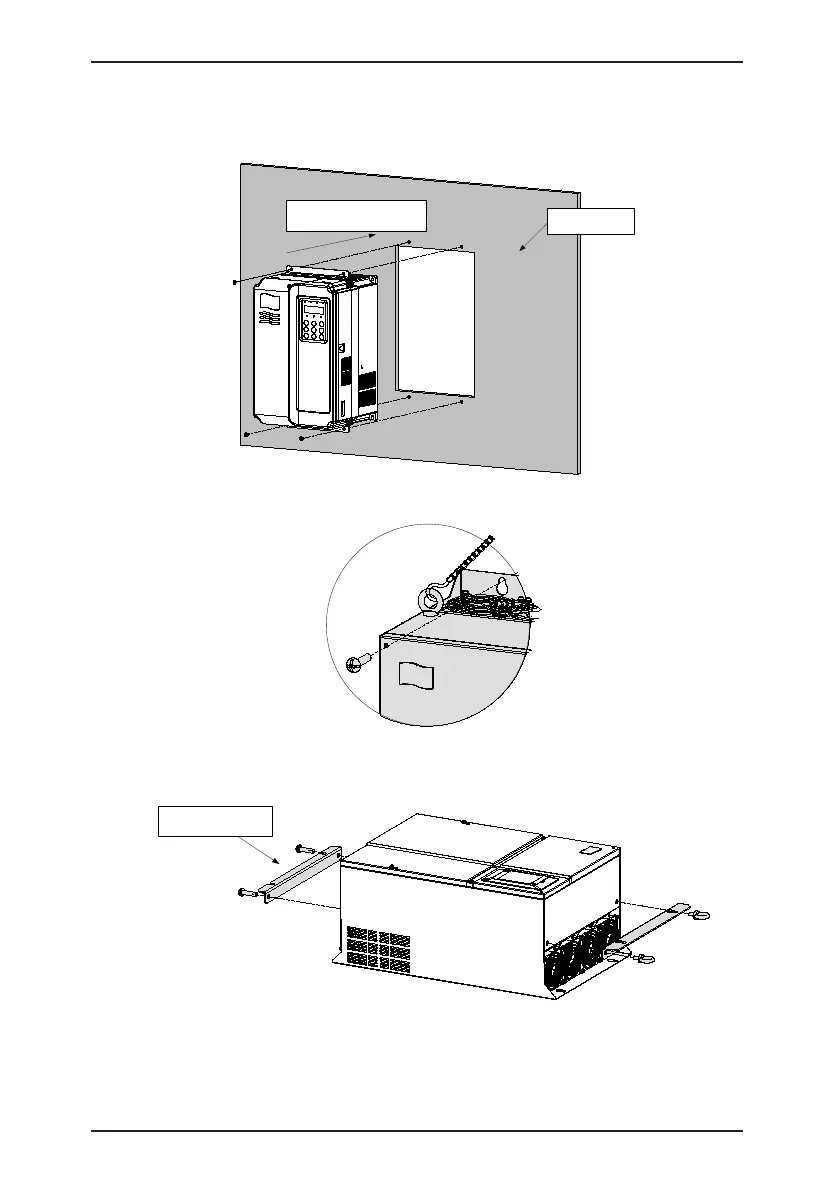

Figure 3-7 Wall-mounting installation of the MD380 (sheet metal housing)
Install the AC drive on the
front of the control cabinet.
Back panel of
control cabinet
Figure 3-8 Hoisting the MD380 (sheet metal housing)
4) Embedded installation of the MD380 (sheet metal housing)
Figure 3-9 External hanging bracket for the MD380 (sheet metal housing)
Figure 3-10 Embedded installation of the MD380 (sheet metal housing)
