Inovance MDKE9 Series User Manual

4 Function and Application
- 20 -
4
1） Modifying digit parameters
to set F1-04 to 40.00Hz, that is taking the rates frequency of 40.00 Hz as an example. The setting steps are
as follows:

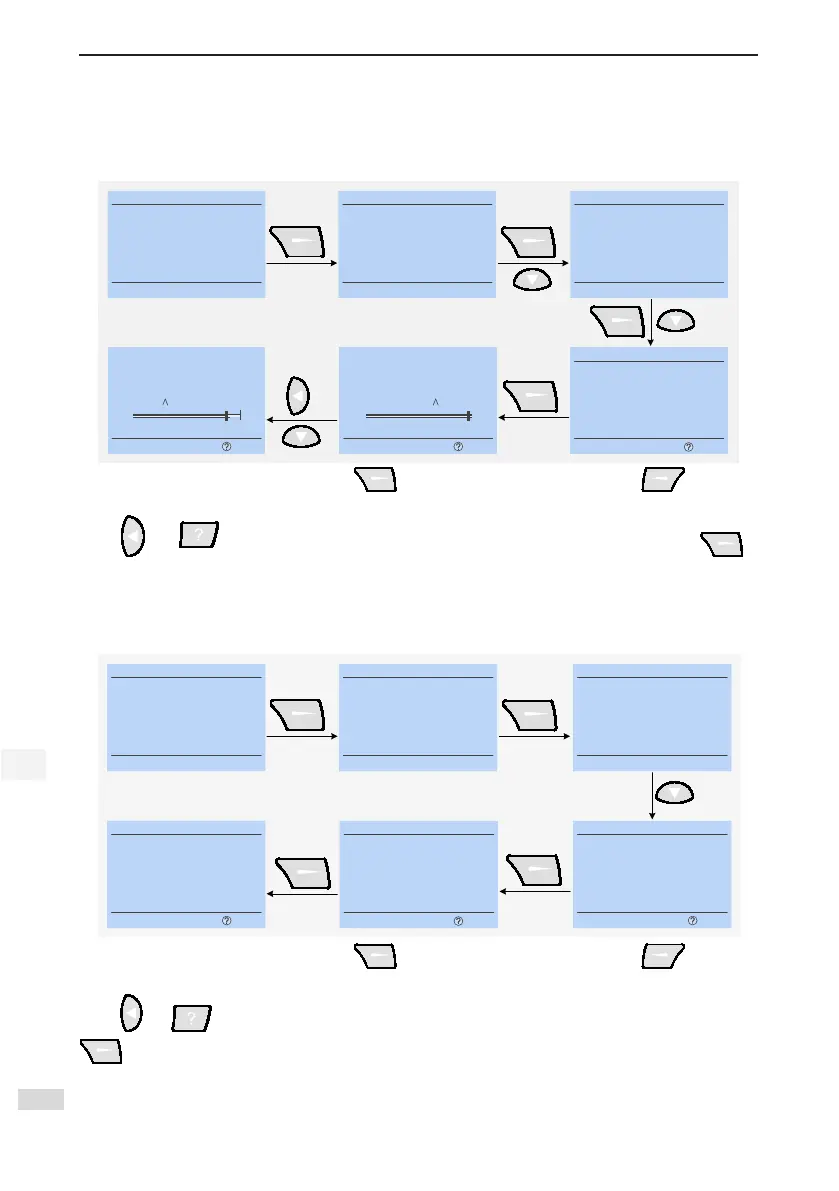

Figure 4-5 Example of modifying digit parameters
Inverter
OK18:00:02
Loc
Stop
Back
25.00A
50.00HZ
F1-05 Motor rated speed
1460 rpm
Back OK18:00:02
Loc
Default: 50.00
F1-04 Rated motor frequency
5 0 . 0 0 HZ
0.01
50.00
Max:
Min:
Back OK18:00:02
Loc
Default: 50.00
F1-04 Rated motor frequency
4 0 .0 0 HZ
0.01
50.00
Max
:
Min:
Inverter
01 Running frequency
0.00Hz
02 Frequency reference
50.00Hz
03 Bus voltage
298.6V
Menu
18:00:
02
Loc
Stop
Dev
Inverter
• 01 Parameter Set
02 Status Monitor
03 Device Control
Back
Select18:
00:02
Loc
Stop
04 Authority
Inverter
F0 Basic Functions
F2 Vector Control Parameters
Back Select18:00:02
Loc
Stop
F3 V/F Control Parameters
• F1 Motor Parameters
F4 Input Terminal
F1-03 Rated motor current
• F1-04 Motor rated frequency
Max LimitMax Limit
When the F1-04 is set to 40.00 Hz, press to save the setting and exit or press to quit and
exit.
Press and at the same time to restore the parameter to default value, and then press to
save the modication.
2） Modifying select list parameters
Take setting F0-00 to 2, that is to set GP type to P type as the example. The setting steps are as follows:
Figure 4-6 Modifying selection table parameter
Inverter
2: P type (Fan and pump type load
model)
• F0-01 Motor 1 control mode
Back Select18:00:02
Loc
Stop
0: SVC control
F0-02 Command source selection
F0-00 GP type display
Select18:00:02
Loc
Back
Back OK18:00:02
Loc
• 2：P type (Fan and pump type
load model)
Inverter
01 Running frequency
0.00Hz
02 Frequency reference
50
.00Hz
03 DC bus
298.6V
Menu18:00:02
Loc
Stop
Dev
Inverter
• 01 Parameter Set
02 Status Monitor
03 Device Control
Back Select18:00:02
Loc
Stop
04 Authority
Inverter
• F0 Basic Functions
F1 Motor Parameters
F2 Vector Control Parameters
Back Select18:00: 02
Loc
Stop
F3 V/F Control Parameters
F4 Input Terminals
F0-00 GP type display
0: Keypad &display/ software
command
• 1：G type (Constant torque load)
2：P type (Fan and pump type
load model)
F0-00 GP type display
1：G type (Constant torque load)
When the F1-04 is set to 40.00 Hz, press to save the setting and exit or press to quit and
exit.
Press and at the same time for 1.5s to restore the parameter to default value and then press
to save the modication.
