2 Installation and Wiring
-
45
-
D
W
A
B
H
Ø

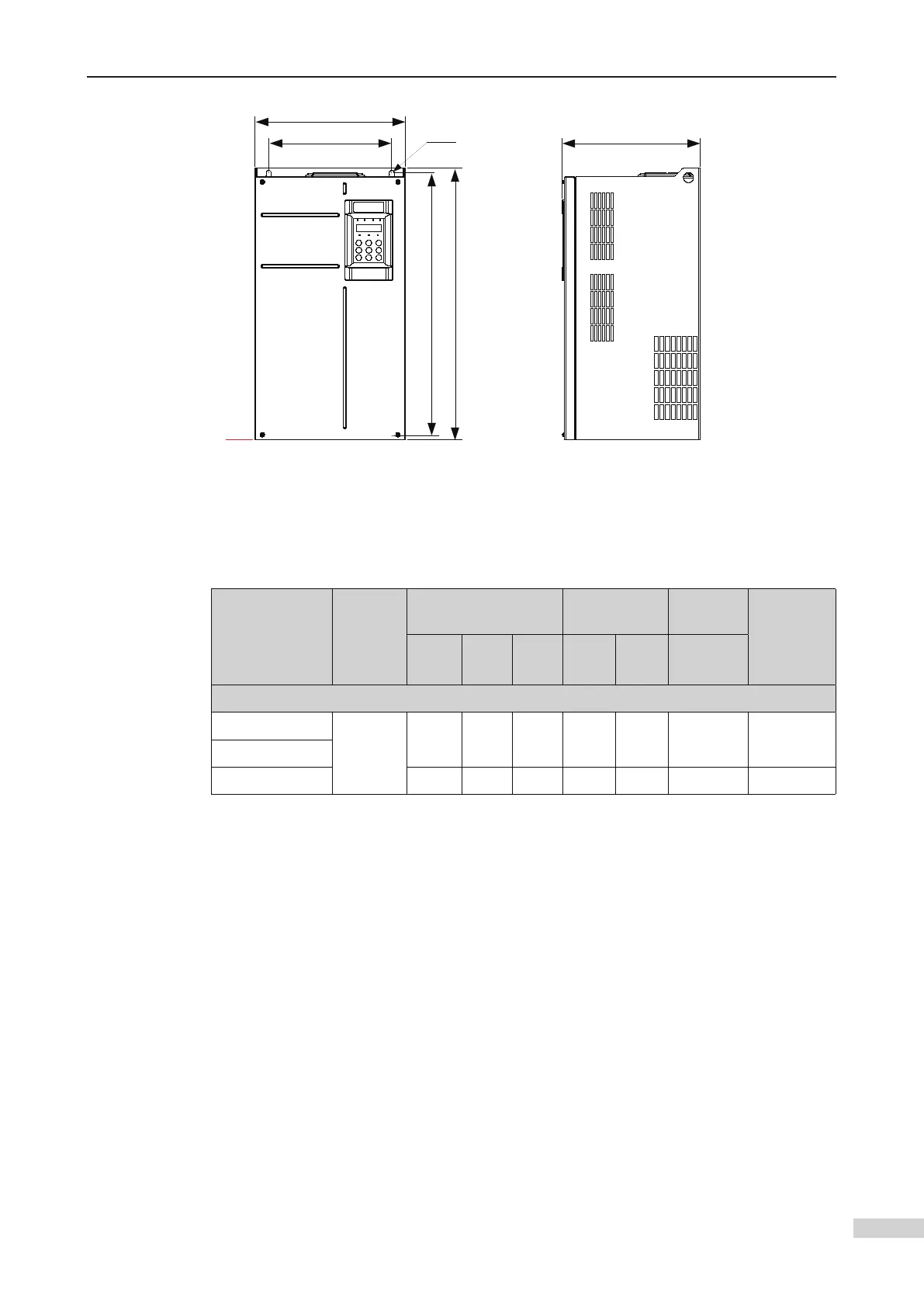

󶙽[F model] Overview and installation dimensions of the sheet metal structure

󶙽[F model] Installation dimensions of the sheet metal structure 
Controller
Model
Structure
Physical Dimensions
Mounting
Hole
Hole
Diameter
Gross
Weight (kg)
H
(mm)
W
(mm)
D
(mm)
A
(mm)
B
(mm)

(mm)
 󶏒 
NICE-L-C-4045F
Sheet
metal
542 300 275 245 523 10 35
NICE-L-C-4055F
NICE-L-C-4075F 580 338 315 270 560 10 51.5
