FIRST THINGS FIRST
BASIC CONNECTIONS

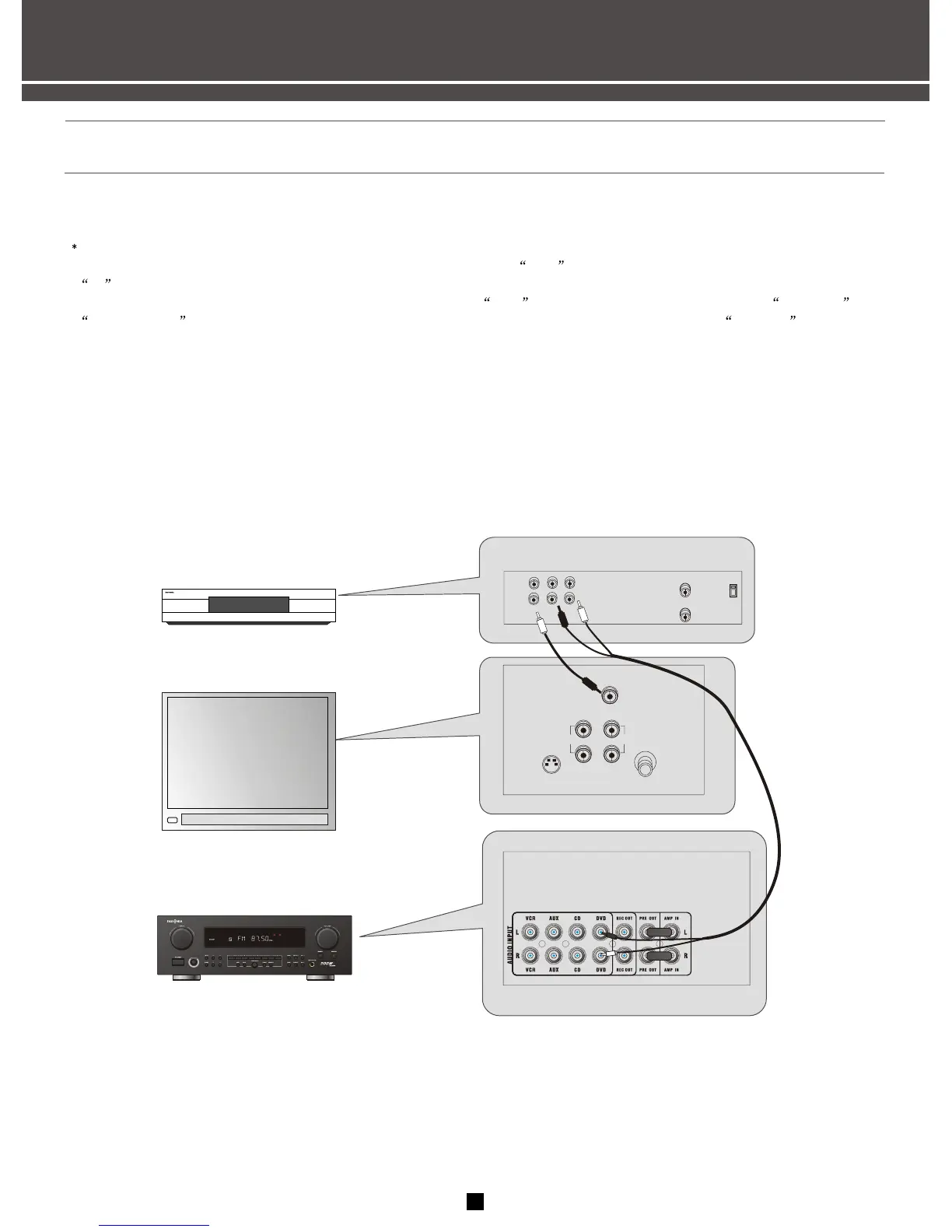

Assuming you have a DVD, the following steps will help you quickly set up your new receiver. If you have more electronic compone-
nts, consult the table of contents or index for the page on which to find the connection description that best suits your situation.
the wires(bought from store ) and jacks have been color-coded to assist you.
1.Using an audio wire with red and white connectors, connect the audio OUT jack on the back of your stereo DVD to the audio
IN jack under the DVD heading on the back of the receiver.
2.Using the video cable with yellow connectors, connect the video OUT jack on the back of your DVD to the VIDEO IN or
VIDEO INPUT on the back of your TV. If there are multiple video jacks on the back of your TV, use VIDEO 1 .
L/
MONO
OUT AUDIO
RIGHT
IN
CABLE/
ANTENNA
VIDEO
INPUT
S-VIDEO
DVD
VIDEO
OUT
IN
R L
IN FROM ANT
OUT TO TV
Ch3
Ch4
AUDIO
RECEIVER
TV
199
4
STEREO RECEIVER AMPLIFIER IS-HC040918
