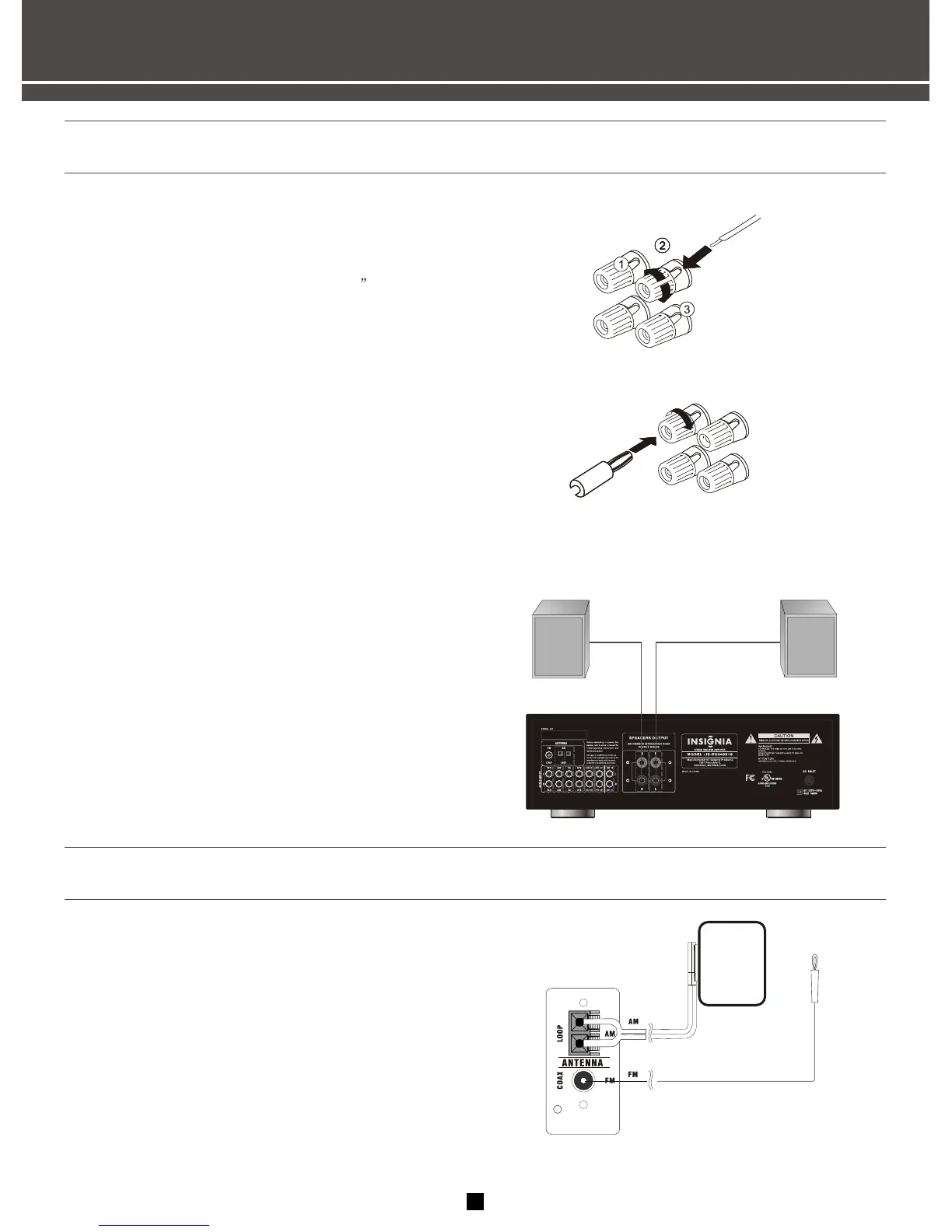

CONNECTING THE SPEAKERS
CONNECTING THE WIRES
CONNECTING THE MAIN SPEAKERS
The two main speakers should be set between six and 10 feet
apart. Putting the speakers any closer or any farther apart may
result in distorted sound. The speakers should also form a 45
degree angle to the central listening point in the room, creating
a triangle of listening enjoyment.
CONNECTING THE ANTENNAS
The AM and FM antennas connect to the AM and FM terminals
on the system's back panel. They must be hooked up for you
to receive clear reception. Uncoil the antenna wires and locate
the bare ends. Press down on the tab to open the terminal and
insert the wire. Snap the tab closed. After connecting the ante-
nnas, extend them to their full length and adjust their positioni-
ng for better reception.
Method 1
Method 2
1.Loosen the knob.
2.Insert the bare wire.[Remove approx.5mm(1/4 ) insulation
from the speaker wires].
3.Tighten the knob and secure the wire.
Or you also may use a banana plug.
Speaker Polarity
When connecting the speakers, make sure the polarities ("+"
speaker wire to "+" on the receiver) of speaker wires and term-
inals are matched. If the cords are reversed, the sound will be
distorted and will lack bass("out of phase"effect).
1.Do not let the bare speaker wires touch each other or any metal part
of this unit. This could damage this unit or the speakers, or both.
2.Connect the speakers terminals to your speakers with the wire of the
proper gauge (keep as short as possible).if the connections are faulty,
no sound will be heard from the speakers.
5
NOTE:
RIGHT SPEAKER
RIGHT LEFT
LEFT SPEAKER
FIRST THINGS FIRST
