23
NS-28D220NA16 28" 720p 60Hz, LED TV
www.insigniaproducts.com
Component video (better)
1 Make sure that your TV’s power adapter is unplugged and the game console is turned off.
2 Connect the game console’s component video cable (not provided) to the VIDEO / Y, P
B, and PR video jacks and
L and RAUDIO jacks on the back of your TV and to the component jack(s) on the game console.
3 Plug your TV’s power adapter into a power outlet, then turn on your TV and the game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or to select Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Important
• Your game console may require a special component video cable. See
the documentation that came with your game console or check the
manufacturer’s website.
•The VIDEO / Y, P
B, and PR video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your game
console supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

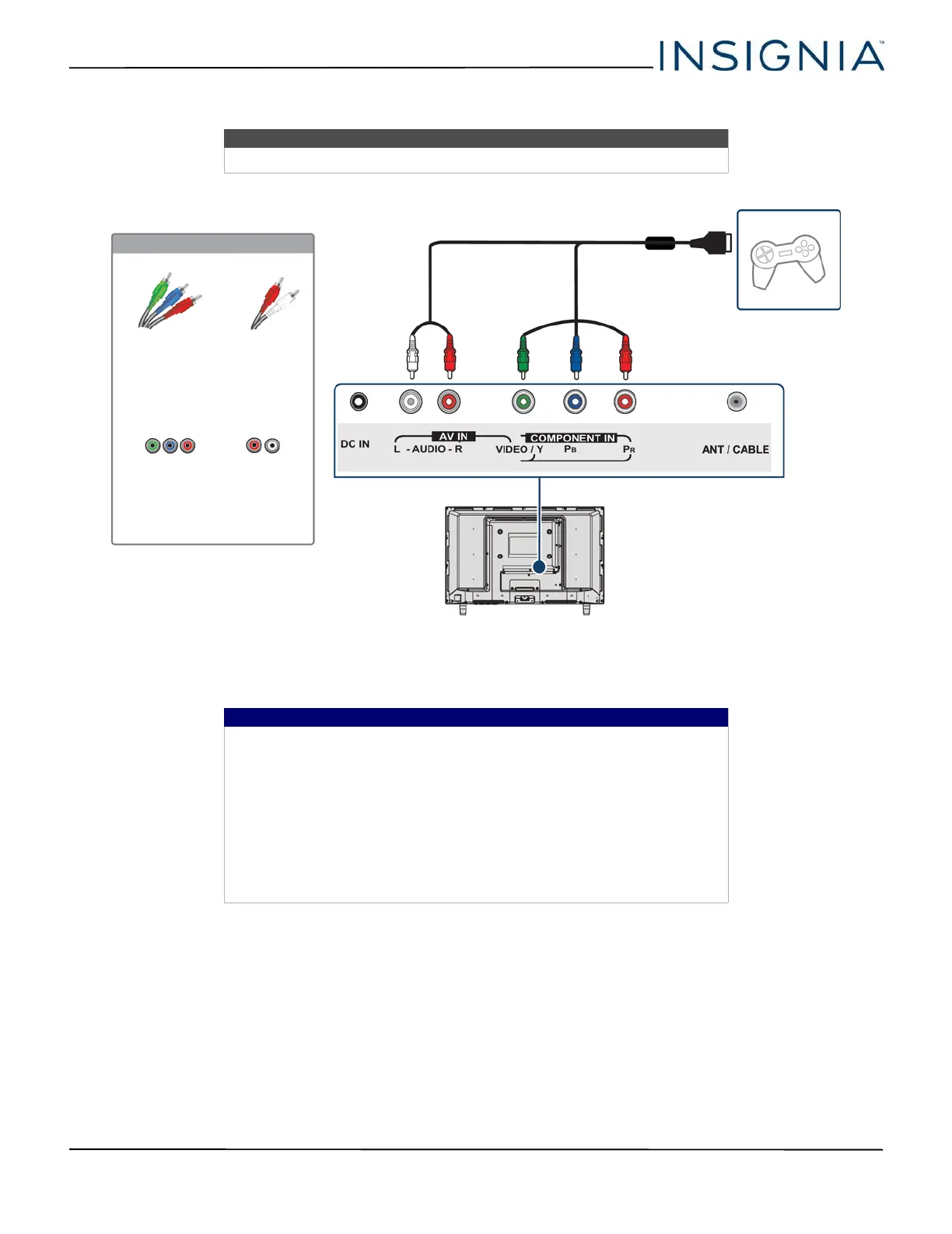

Game console
Back of TV
Console-specific component video
and audio cable
On your TV
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
NS-28D220NA16_14-1311_MAN_V1_ENG.book Page 23 Friday, April 24, 2015 9:15 AM
