Insignia NS-42E760A12 User Manual

7
Insignia 42" LED-LCD HDTV, 1080p
www.insigniaproducts.com

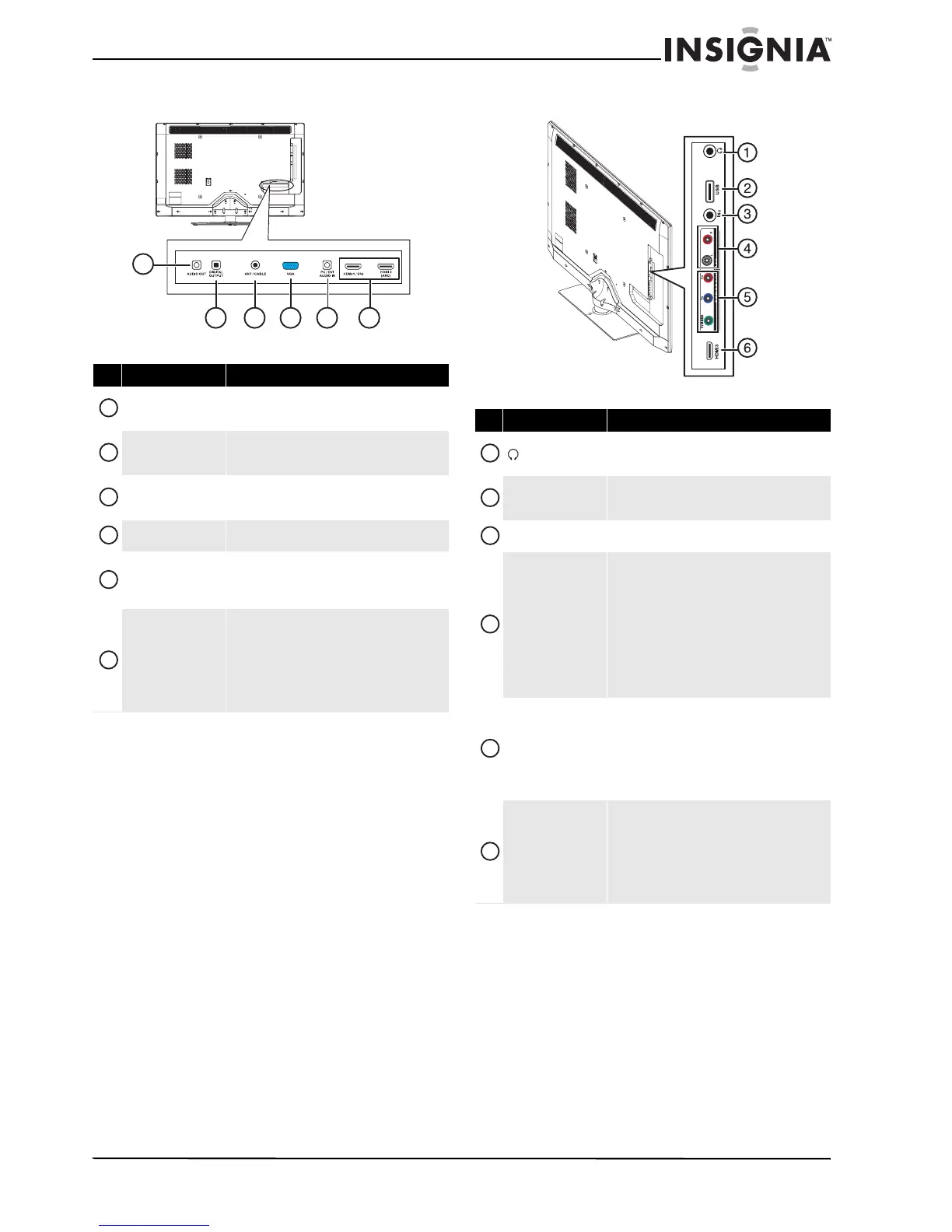

Back Side
# Item Description
AUDIO OUT (analog)
Connect an external sound system to this jack. For
more information, see “Using analog audio output” on
page 20.
DIGITAL OUTPUT
Connect an external sound system to this jack. For
more information, see “Using digital audio output” on
page 20.
ANT/CABLE
Connect an antenna or cable TV to this jack. For more
information, see “Connecting an antenna or cable TV
(no box)” on page 15.
VGA
Connect the video (VGA) for a computer to this jack.
For more information, see “Using VGA” on page 18.
PC/DVI AUDIO IN
Connect the audio for a computer or a DVI device to
this jack. For more information, see “Using VGA” on
page 18 or “Using DVI (same as HDMI but requires a
sound connection)” on pages 13 or 16.
HDMI 1/DVI
HDMI 2 (ARC)
Connect HDMI devices to these jacks. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device.
For more information, see “Using HDMI (best)” on
pages 12, 15, or 19.
When connecting a DVI device using an HDMI-DVI
adapter, connect the device to the HDMI1 jack.
1
32
4
5 6
1
2
3
4
5
6
# Item Description
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 20.
USB
Connect a USB flash drive to this jack. For more
information, see “Connecting a USB flash drive” on
page 19.
INc
Connect a soundbar to this jack. For more information,
see “Connecting a soundbar” on page 20.
COMPONENT/AV
L/R audio
The component video jacks (Y-VIDEO/PB/PR) share
these audio jacks with the composite video jack
(Y-VIDEO).
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 13 or 16.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)“ on page 14 or 17.
COMPONENT
Y/P
B/PR
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 13 or 16.
OR
Connect the video for a composite video device to the
Y-VIDEO jack. For more information, see “Using
composite video (good)” on page 14 or 17.
HDMI3
Connect an HDMI device to this jack. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device.
For more information, see “Using HDMI (best)” on
pages 12, 15, or 19.
When connecting a DVI device using an HDMI-DVI
adapter, connect the device to the HDMI1 jack.
1
2
3
4
5
6

Insignia NS-42E760A12 Specifications

General

Response time	- ms
Display diagonal	42 \
Display brightness	360 cd/m²
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080p
Contrast ratio (dynamic)	40000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
PC Audio in	No
HDMI ports quantity	3
DVI-I ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of speakers	2
Power consumption (standby)	1 W
Power consumption (typical)	100 W

Weight and Dimensions

Depth (with stand)	228.6 mm
Height (with stand)	660.4 mm
Weight (with stand)	14514.9 g
Depth (without stand)	25.4 mm
Width (without stand)	991 mm
Height (without stand)	609.6 mm
Weight (without stand)	10976.9 g
