Insignia NS-42E760A12 User Manual

12
NS-42E760A12 Insignia 42" LED-LCD HDTV, 1080p
www.insigniaproducts.com

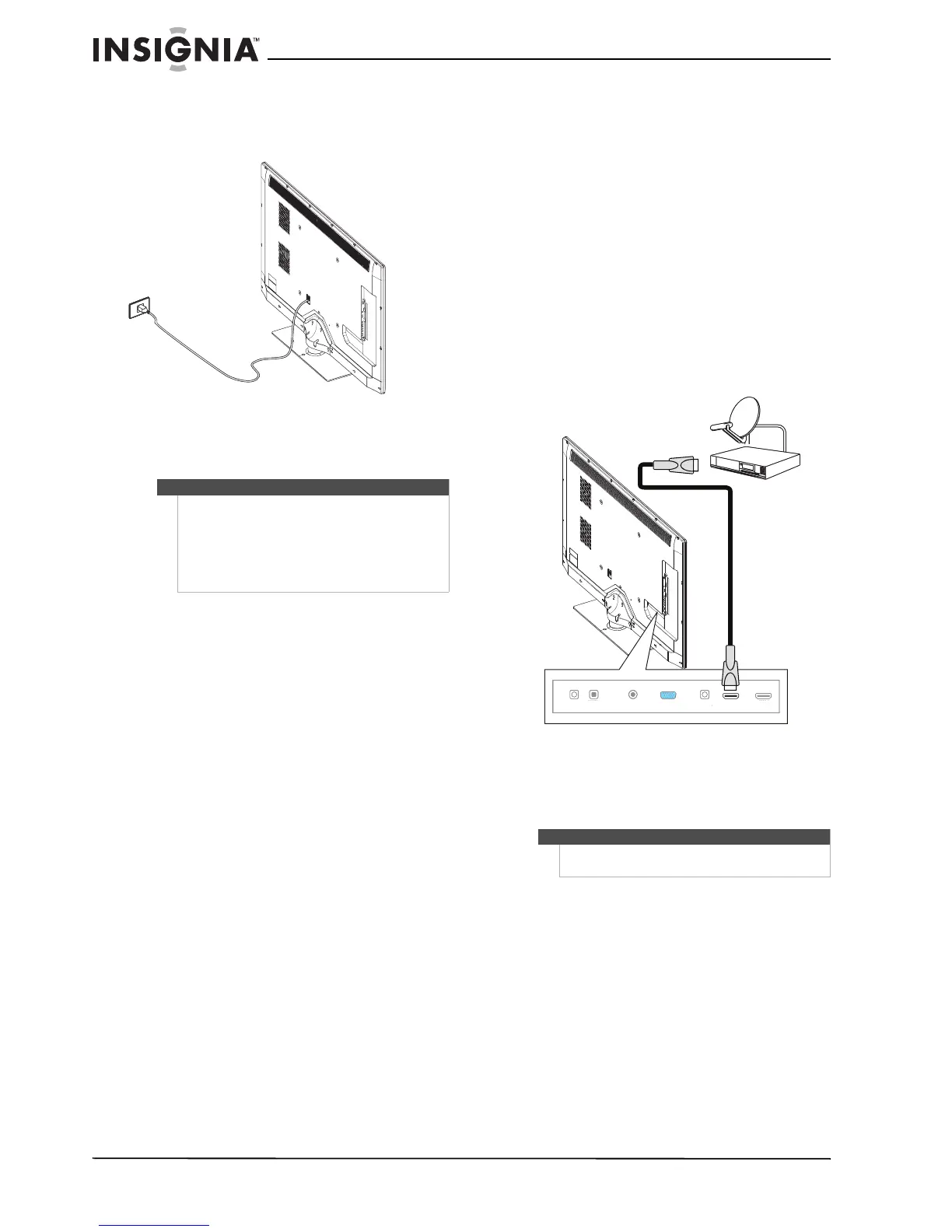

Connecting power
To connect the power:
• Plug the AC power cord into a power outlet.
Connecting a cable or satellite box
Many cable or satellite TV boxes have more than
one connection type. To get the best video, you
should use the best connection type available. For
more information, see “What connection should I
use?” on page 11.
Using HDMI (best)
To connect a cable or satellite box using HDMI:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect an HDMI cable (not included) to one of
the HDMI jacks on the back of your TV, then plug
the other end of the cable into the HDMI jack on
the cable or satellite box.
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the setup wizard on page 22.
Notes
• Your TV should only be operated from the
power source indicated on the label.
• Always unplug the AC power cord from the
power outlet when you will not be using your
TV for an extended period of time.
• The AC power cord is permanently attached to
the back of your TV. Do not try to pull it out.
Notes
An HDMI cable carries both audio and video. You do
not need to use any audio cables.
AUDIO OUT
DIGITAL
OUTPUT
ANT /CABLE
VGA
PC / DVI
AUDIO IN
HDMI 1 / DVI
HDMI 2
(ARC)
AUDI
O
O
U
T
DI
G
ITA
L
OUTPUT
ANT
/C
ABLE
V
GA
P
C
/
DV
I
A
UDIO IN
HDMI
2
(
ARC
)
Back of TV
HDMI cable
Cable or satellite box

Insignia NS-42E760A12 Specifications

General

Response time	- ms
Display diagonal	42 \
Display brightness	360 cd/m²
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080p
Contrast ratio (dynamic)	40000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
PC Audio in	No
HDMI ports quantity	3
DVI-I ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of speakers	2
Power consumption (standby)	1 W
Power consumption (typical)	100 W

Weight and Dimensions

Depth (with stand)	228.6 mm
Height (with stand)	660.4 mm
Weight (with stand)	14514.9 g
Depth (without stand)	25.4 mm
Width (without stand)	991 mm
Height (without stand)	609.6 mm
Weight (without stand)	10976.9 g
