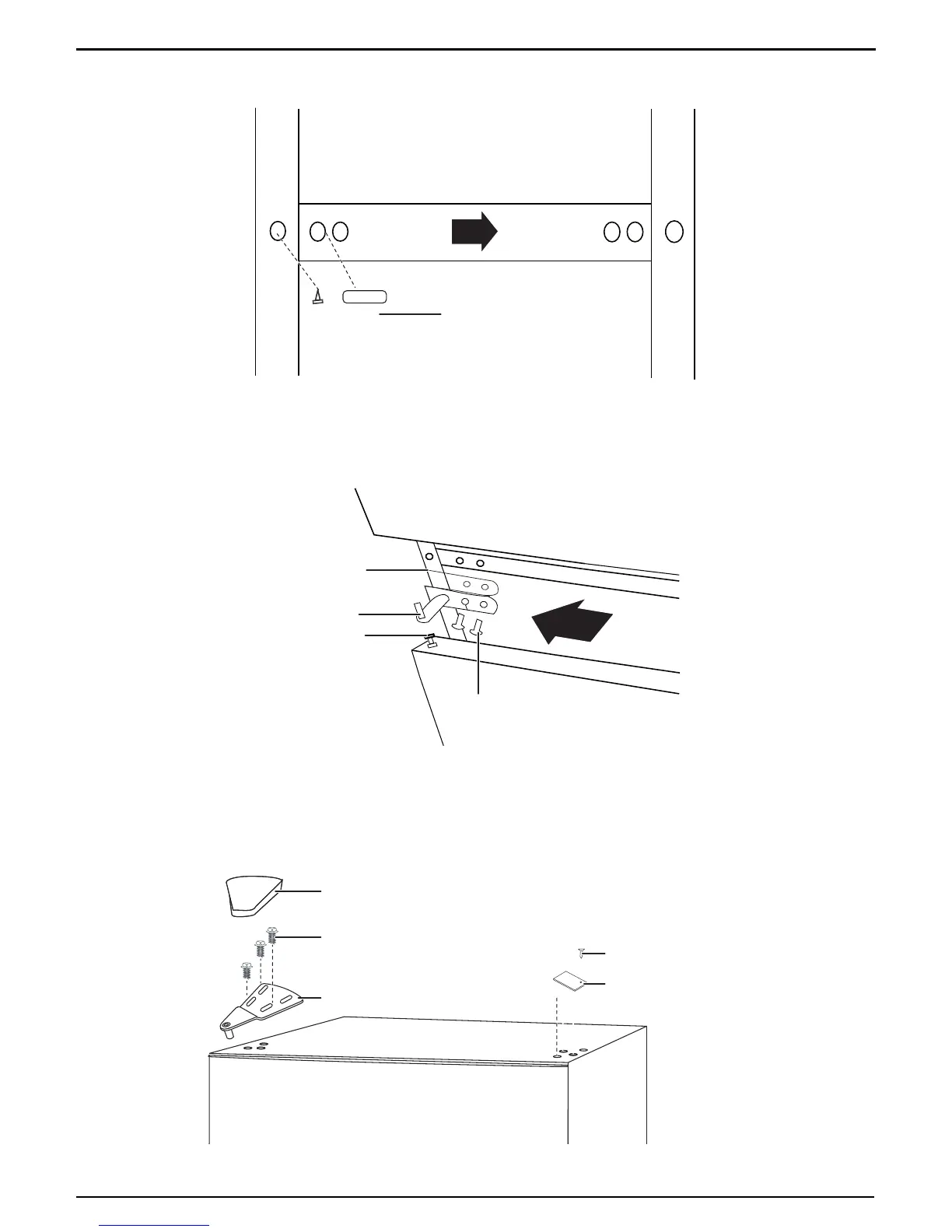

13 Remove the center hinge screw hole plugs on the left side of the cabinet, then install the plugs in the screw holes on
the right side of the cabinet.
14 Install the freezer compartment door, then secure the center hinge with the two screws you removed previously. Make
sure that the center hinge spacer is installed with the hinge. The spacer provides the full range of motion for the door.
15 Remove the door stop from the bottom right side of the refrigerator compartment door, then install it to the bottom
left side of the refrigerator compartment door.
16 Install the refrigerator compartment door, then secure the upper hinge to the top left side of the cabinet with the three
screws you removed previously. Before you tighten the upper hinge screws, make sure that the top of the door is level
with the cabinet and that the rubber gasket makes a good seal.
17 Install the hinge cover over the hinge on the top left side of the cabinet.
18 Install the hinge screw hole cover on the top right side of the cabinet.
Screw hole plugs
Center hinge
spacer
Center hinge
Door bushing
Screws
Hinge cover
Screws
Upper hinge
Hinge screw
hole cover
Screw
