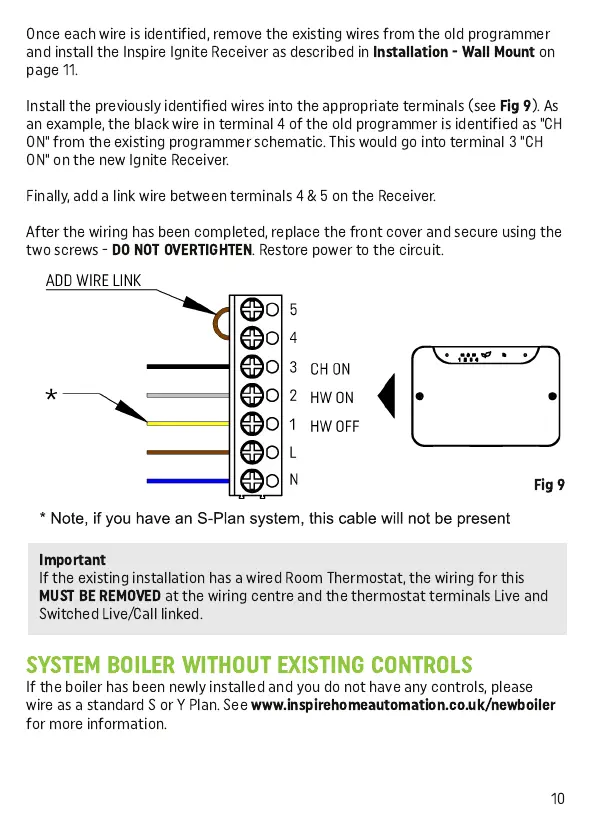

Once each wire is identified, remove the existing wires from the old programmer
and install the Inspire Ignite Receiver as described in
Installation - Wall Mount
on
page 11.
Install the previously identified wires into the appropriate terminals (see
Fig 9
). As
an example, the black wire in terminal 4 of the old programmer is identified as "CH
ON" from the existing programmer schematic. This would go into terminal 3 "CH
ON" on the new Ignite Receiver.
Finally, add a link wire between terminals 4 & 5 on the Receiver.
After the wiring has been completed, replace the front cover and secure using the
two screws -
DO NOT OVERTIGHTEN
. Restore power to the circuit.
SYSTEM BOILER WITHOUT EXISTING CONTROLS
If the boiler has been newly installed and you do not have any controls, please
wire as a standard S or Y Plan. See
www.inspirehomeautomation.co.uk/newboiler
for more information.
10
Important
If the existing installation has a wired Room Thermostat, the wiring for this
MUST BE REMOVED
at the wiring centre and the thermostat terminals Live and
Switched Live/Call linked.
Fig 9
