3

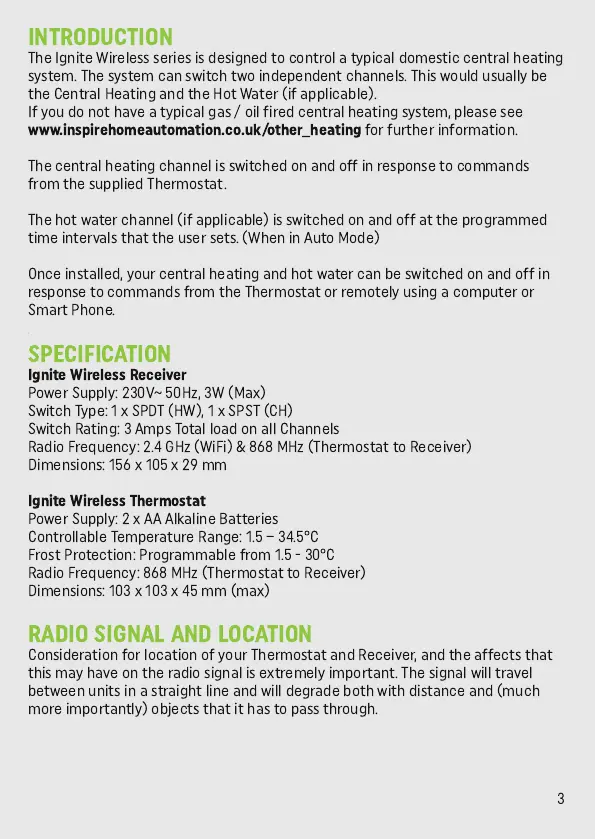

INTRODUCTION
The Ignite Wireless series is designed to control a typical domestic central heating
system. The system can switch two independent channels. This would usually be
the Central Heating and the Hot Water (if applicable).
If you do not have a typical gas / oil fired central heating system, please see
www.inspirehomeautomation.co.uk/other_heating
for further information.
The central heating channel is switched on and off in response to commands
from the supplied Thermostat.
The hot water channel (if applicable) is switched on and off at the programmed
time intervals that the user sets. (When in Auto Mode)
Once installed, your central heating and hot water can be switched on and off in
response to commands from the Thermostat or remotely using a computer or
Smart Phone.
.
SPECIFICATION
Ignite Wireless Receiver
Power Supply: 230V~ 50Hz, 3W (Max)
Switch Type: 1 x SPDT (HW), 1 x SPST (CH)
Switch Rating: 3 Amps Total load on all Channels
Radio Frequency: 2.4 GHz (WiFi) & 868 MHz (Thermostat to Receiver)
Dimensions: 156 x 105 x 29 mm
Ignite Wireless Thermostat
Power Supply: 2 x AA Alkaline Batteries
Controllable Temperature Range: 1.5 – 34.5°C
Frost Protection: Programmable from 1.5 - 30°C
Radio Frequency: 868 MHz (Thermostat to Receiver)
Dimensions: 103 x 103 x 45 mm (max)
RADIO SIGNAL AND LOCATION
Consideration for location of your Thermostat and Receiver, and the affects that
this may have on the radio signal is extremely important. The signal will travel
between units in a straight line and will degrade both with distance and (much
more importantly) objects that it has to pass through.
