IF1200A Pilot Operating Handbook 2. IF1200A Overview

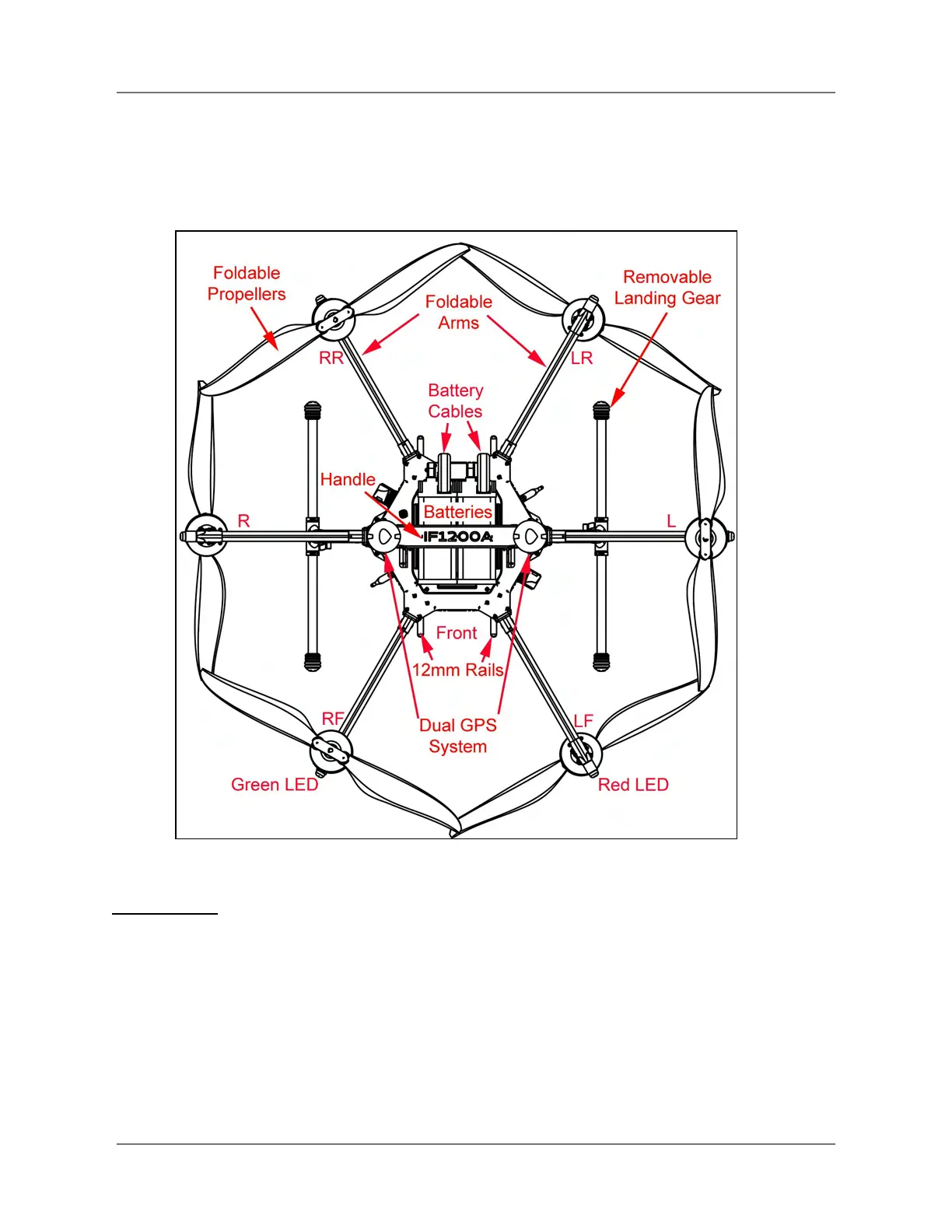

Figure 2 below is a top view of the IF1200A aircraft, and shows some features used to orient
yourself to the aircraft.
NOTE: The Handle incorporates a dual GPS, and also serves as a battery clamp for the aircraft.
Figure 2. Top View of the IF1200A Aircraft facing towards you
Orientation: The six arms in Figure 2 are designated as follows:
● LF: Left Front (red LED)
● RF: Right Front (green LED)
● R: Right side of aircraft (white LED)
● RR: Right Rear (white LED)
● LR: Left Rear (white LED)
● L: Left side of aircraft (white LED)
IFT Doc Num 102094, Rev 1.02 Page 3
