IF1200A Pilot Operating Handbook 6. Long Range Telemetry (LRT)
6. Long Range Telemetry (LRT)
The LRT system includes:
● IF1200A aircraft
● Jeti DS-12 hand controller
● RFD900x-US telemetry radio
Customer-supplied:
● Laptop or tablet, with QGroundControl and/or Mission Planner installed. The
RFD900x-US telemetry radio plugs into a USB port on this device.
The RFD900x-US telemetry radio connects to a USB port on a device (laptop or tablet).
The device operates as a ground control station. MAVLink compatible Ground Control station
software such as QGroundControl (QGC), Mission Planner (MP), UGCS, or MAVProxy must be
installed on the device before flying.
Figure 5 below shows how the parts of the LRT work together.

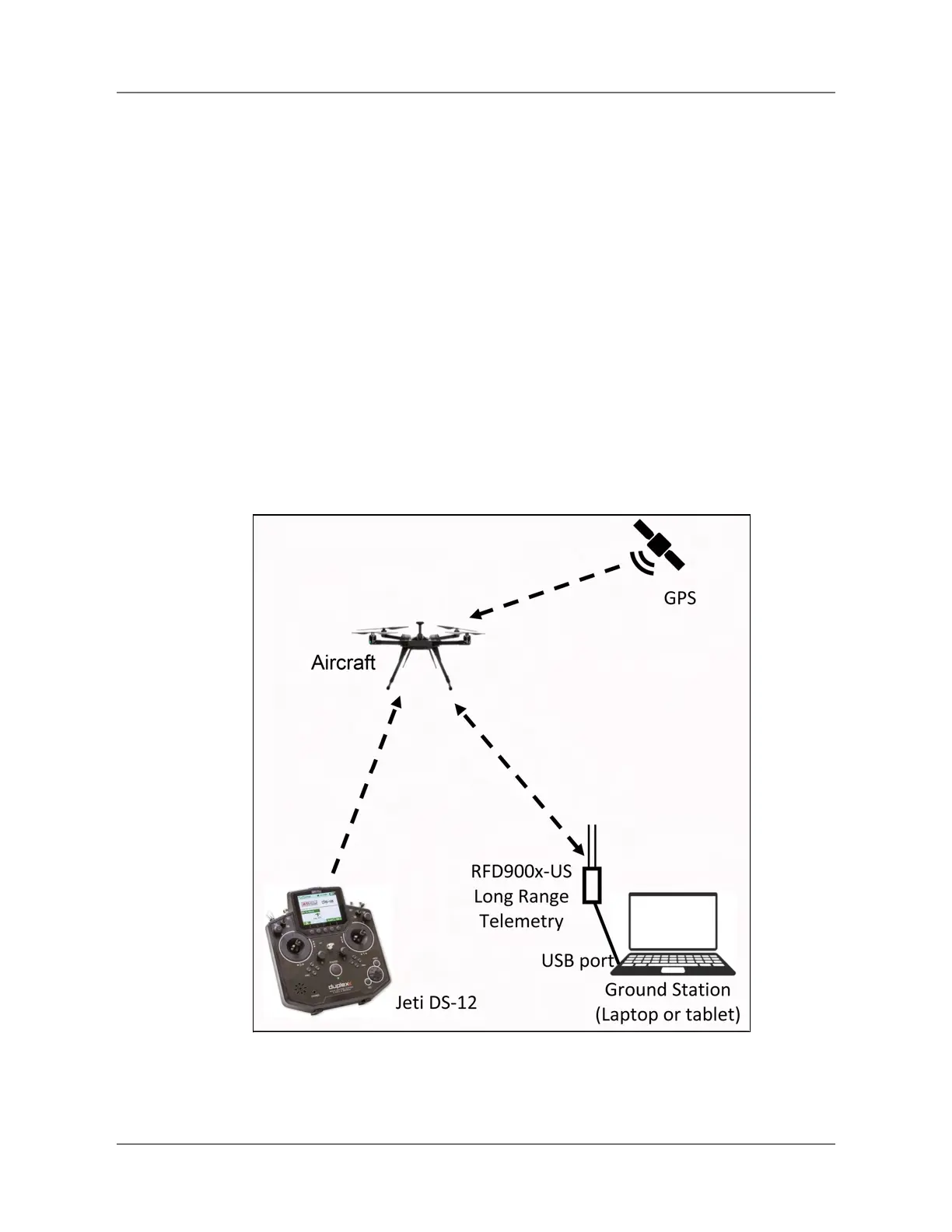

Figure 5. Long Range Telemetry Signals
IFT Doc Num 102094, Rev 1.02 Page 7
