IF1200A Pilot Operating Handbook Appendix

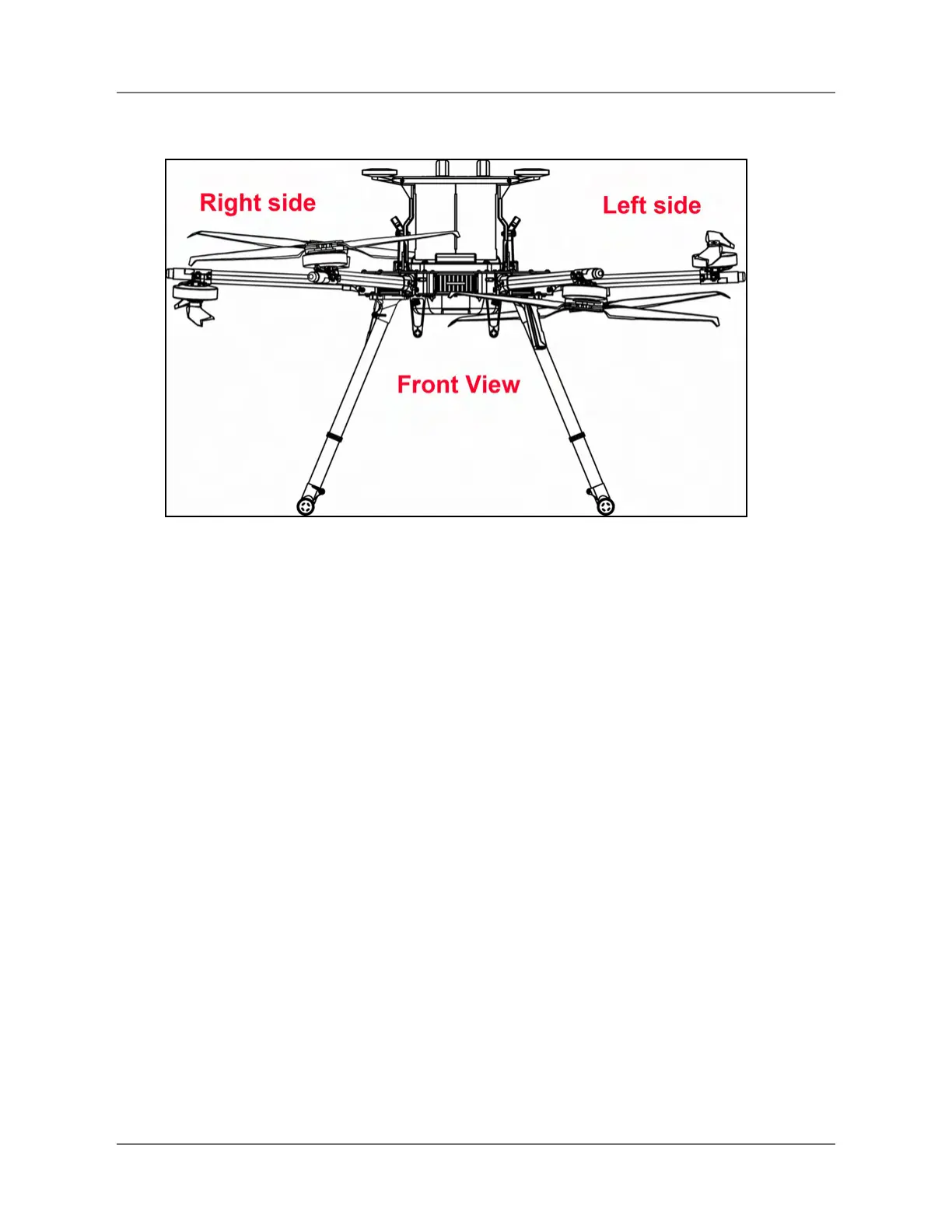

Figure 32. IF1200A Front View (Level) Orientation
● Front View (and Level): See Figure 32. This graphic shows the front view, and shows
the right and left sides of the aircraft. If you imagine the ground being at the bottom of
this graphic, this is the be the “Level” orientation of the aircraft
IFT Doc Num 102094, Rev 1.02 Page 67
