5-7
General Maintenance Procedures
Product Support: www.instron.com
The frame disabled warning indicates that the limit stops are working correctly. If the
frame disabled warning does not display, contact your local Instron service office for
assistance.
After testing the limit stops, you need to re-enable the load frame.
1. In Bluehill software, click in the console area to open the Load Frame Settings dialog.
2. Click the Frame tab.
3. Click Enable frame.
4. Click Done to close the dialog box. The
FRAME READY light on the control panel
illuminates when the frame is enabled.
Replace a Fuse
Replace a fuse with the same type and size as the original. Installing the wrong fuse
could damage the electrical circuits inside the machine.
1. Turn the power switch to the Off (O) position and disconnect the power cable from the
main power source. Ensure that the
POWER indicator light does not illuminate.
2. Verify that the voltage setting is correct on the power input connector. Refer to “Set the
Input Voltage” on page 4-2 if you need to change the line voltage.
3. Insert a small flat-head screwdriver into the slot indicated in Figure 5-2 on page 5-7
and pry out the fuse holder.
Electrical Hazard - Shut down the system and disconnect the power cable from
the main power source before replacing a fuse. Dangerous voltages can cause
personal injury.

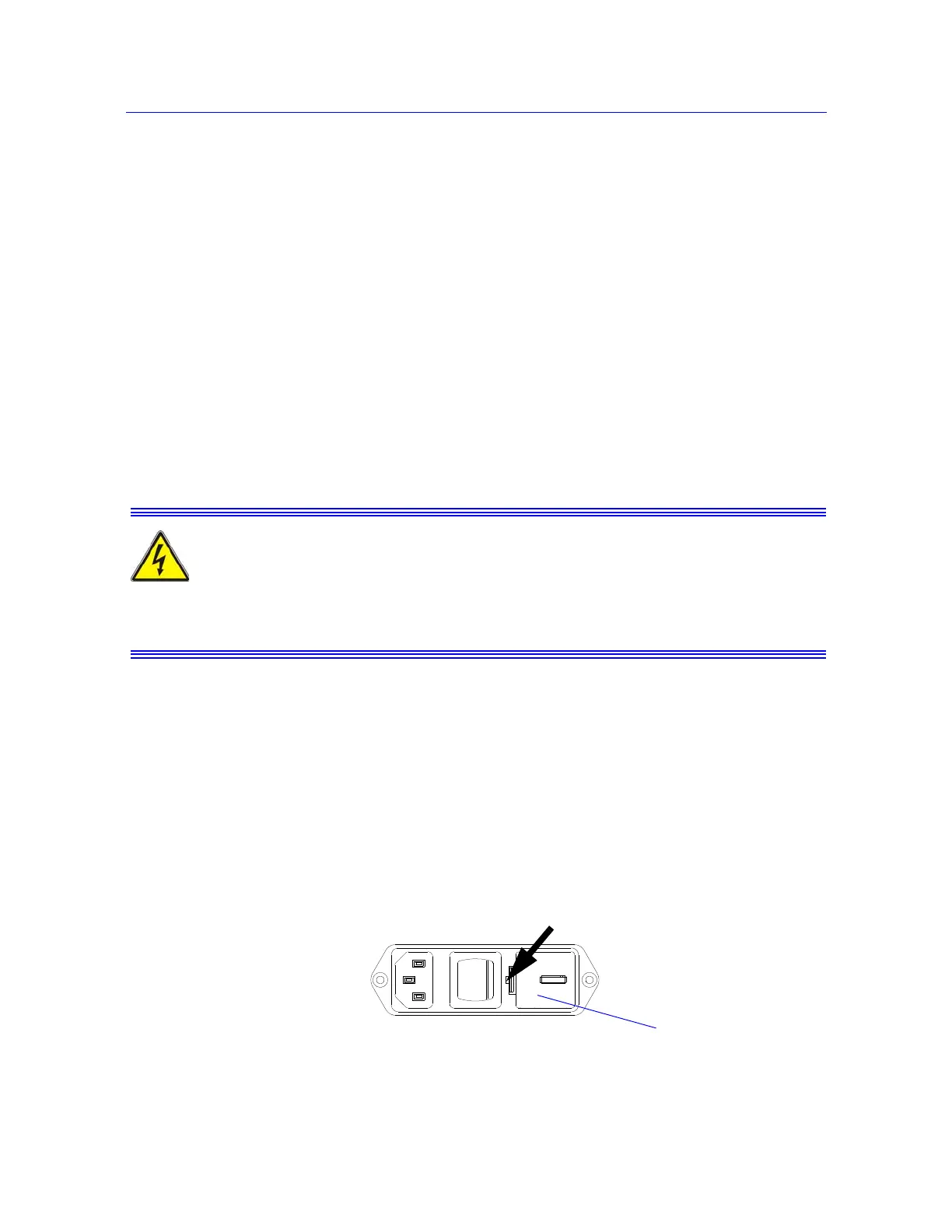

Figure 5-2. Prying out the fuse holder
