Chapter: Lifting and Handling
3-10 M10-16250-EN
To transport the load frame using the frame base method:
1. Ensure that the frame is bolted to the shipping skid.
2. Carefully insert the forks under the shipping skid as shown in Figure 3-2 on page 3-10.
3. The crosshead should be in its lowest position so that the frame is not top heavy.
4. Slowly and carefully lift the frame off the floor.
5. Move the frame to its operating location.
6. Slowly lower the frame to the floor.
7. Before placing the frame in its operating location, you must insert the leveling feet into
each corner of the base. The shipping skid must be removed to insert the feet and before
placing the frame in its operating location. Follow the instructions described under
“Crosshead Method” on page 3-11 to remove the shipping skid, insert the leveling
feet and position the frame.
When the frame is in its operating location, you can proceed with the installation process.

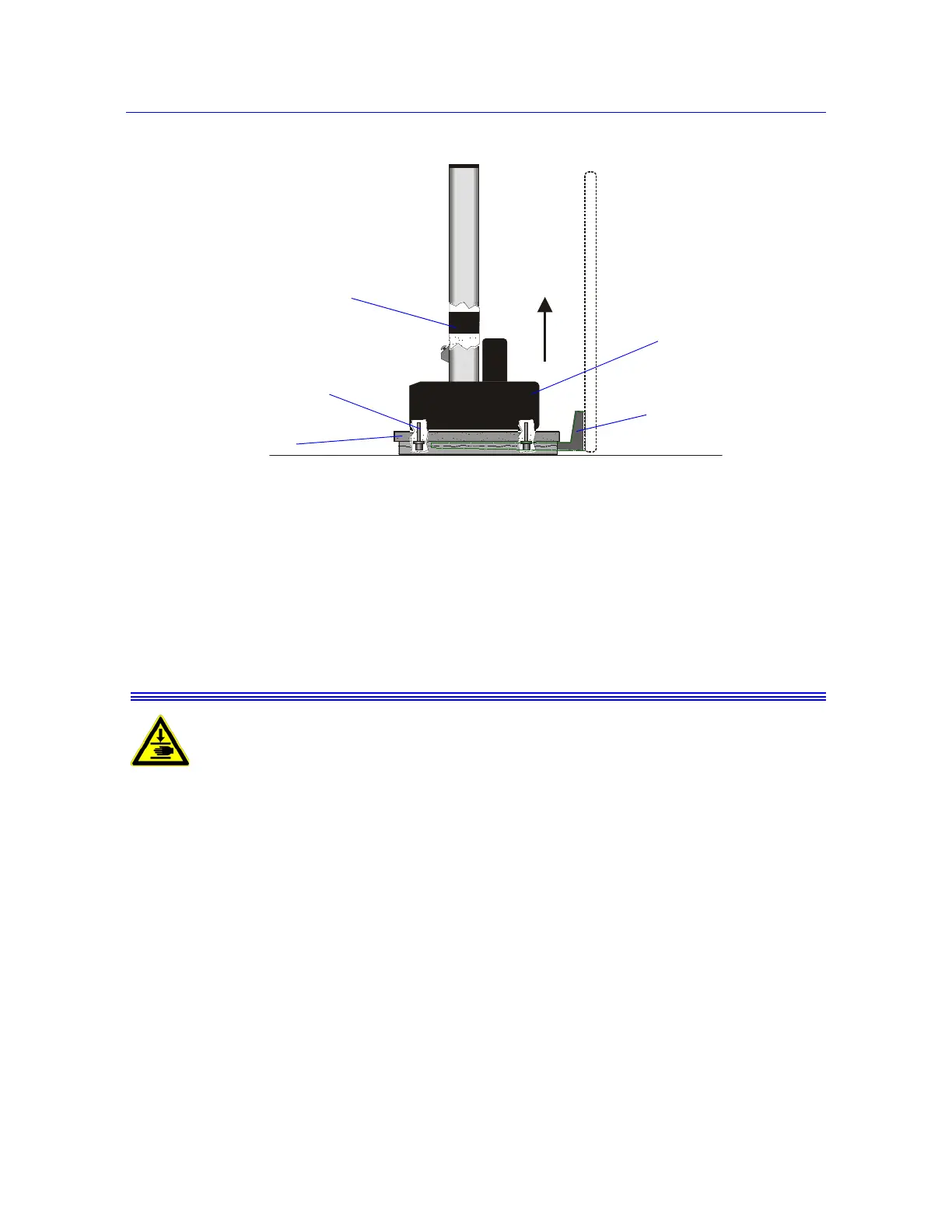

Figure 3-2. Lifting the Frame from the Base
Crosshead
Shipping skid
Shipping bolt
(Total of 4)
Forklift arm
Load frame base
Crush hazard - Ensure that all persons in the immediate area are standing away
from the frame during lifting.
Do not lift the frame more than 8 cm (3 in) off the floor.
