Instron 68TM-10 - Top Plate Dimensions; System Performance

43
System Performance
Product Support: www.instron.com

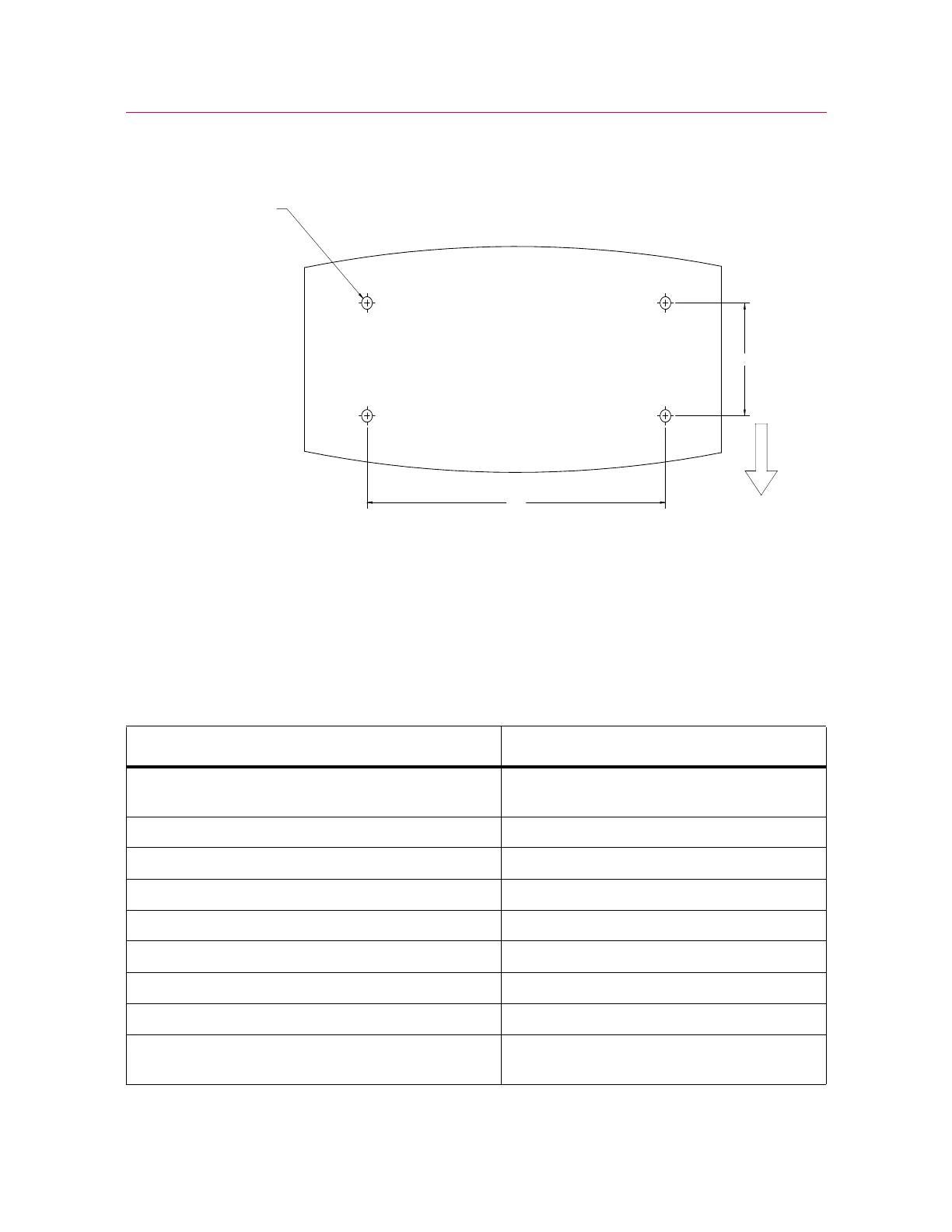

Top plate dimensions
Figure 9. View of underside of top plate
System Performance
4X M10 THRU
90
280
Table 12. 68TM-10 system performance
Parameter Specifications
Testing type Tension, compression, and through zero
operation.
Basic control mode Closed loop position control
Load capacity - kN (lbf) 10 (2250)
Maximum speed - mm/min (in/min) 2032 (80)
Minimum speed - mm/min (in/min) 0.001 (0.00004)
Maximum force at full speed - kN (lbf) 5 (1125)
Maximum speed at full force - mm/min (in/min) 1016 (40)
Return speed - mm/min (in/min) 2100 (82.7)
Crosshead speed accuracy ± 0.1% of set speed at steady state and no
load
