Instrutech CVM211 User Manual

Instruction Manual CVM211 Stinger
InstruTech Page 4

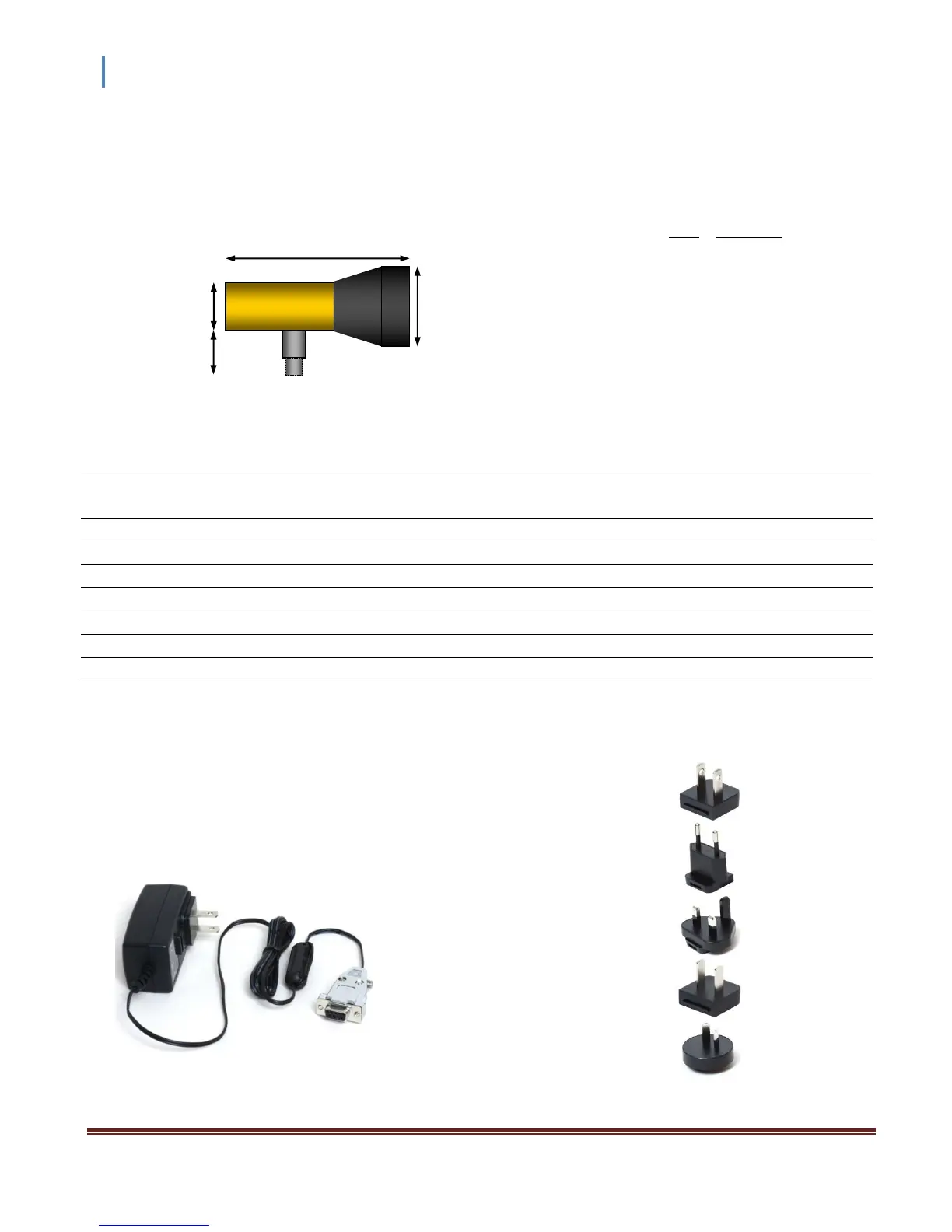

1.3 Dimensions
1.4 Part Numbers
With Log-Linear With Non-Linear
CVM211 Fittings / Flanges Analog Output Analog Output
Combination 1/8 in. NPT male - 1/2 in. tube
(use 1/8 in. NPT male or 1/2 in. O.D. O-ring compression)
CVM211GAA-B-L
CVM211GAA-B-NL
NW16KF
CVM211GBA-B-L
CVM211GBA-B-NL
NW25KF
CVM211GCA-B-L
CVM211GCA-B-NL
NW40KF
CVM211GDA-B-L
CVM211GDA-B-NL
1 1/3 in. Mini-CF / NW16CF Mini-Conflat®
CVM211GEA-B-L
CVM211GEA-B-NL
2 3/4 in. CF / NW35CF Conflat®
CVM211GFA-B-L
CVM211GFA-B-NL
1/4 in. Cajon® 4VCR® female
CVM211GGA-B-L
CVM211GGA-B-NL
1/2 in. Cajon® 8VCR® female
CVM211GHA-B-L
CVM211GHA-B-NL
1.5 Options & Accessories
Part Number
Optional Wall Mount AC-DC
PS401 Power Supply
Input: 100 - 240 Vac
Output: 24 Vdc @ 750 mA (18 W)
Various AC plugs, 6 ft. cable length
with North American AC Plug
PS401-A
with Universal European AC Plug
PS401-EU
with UK AC Plug
PS401-UK
with China AC Plug
PS401-C
with Australian AC Plug
PS401-SP
fitting
dimension A
1/8 in. NPT male - 1/2 in. tube
25.4 mm (1.00 in.)
NW16KF
33.0 mm (1.30 in.)
NW25KF
33.0 mm (1.30 in.)
NW40KF
33.0 mm (1.30 in.)
1 1/3 in. Mini-Conflat®
27.4 mm (1.08 in.)
2 3/4 in. Conflat®
37.3 mm (1.47 in.)
1/4 in. Cajon® 4VCR®
47.2 mm (1.86 in.)
1/2 in. Cajon® 8VCR®
44.5 mm (1.75 in.)
A
29.0 mm
1.14 in.
48.3 mm
1.9 in.
104.7 mm (4.12 in.)
