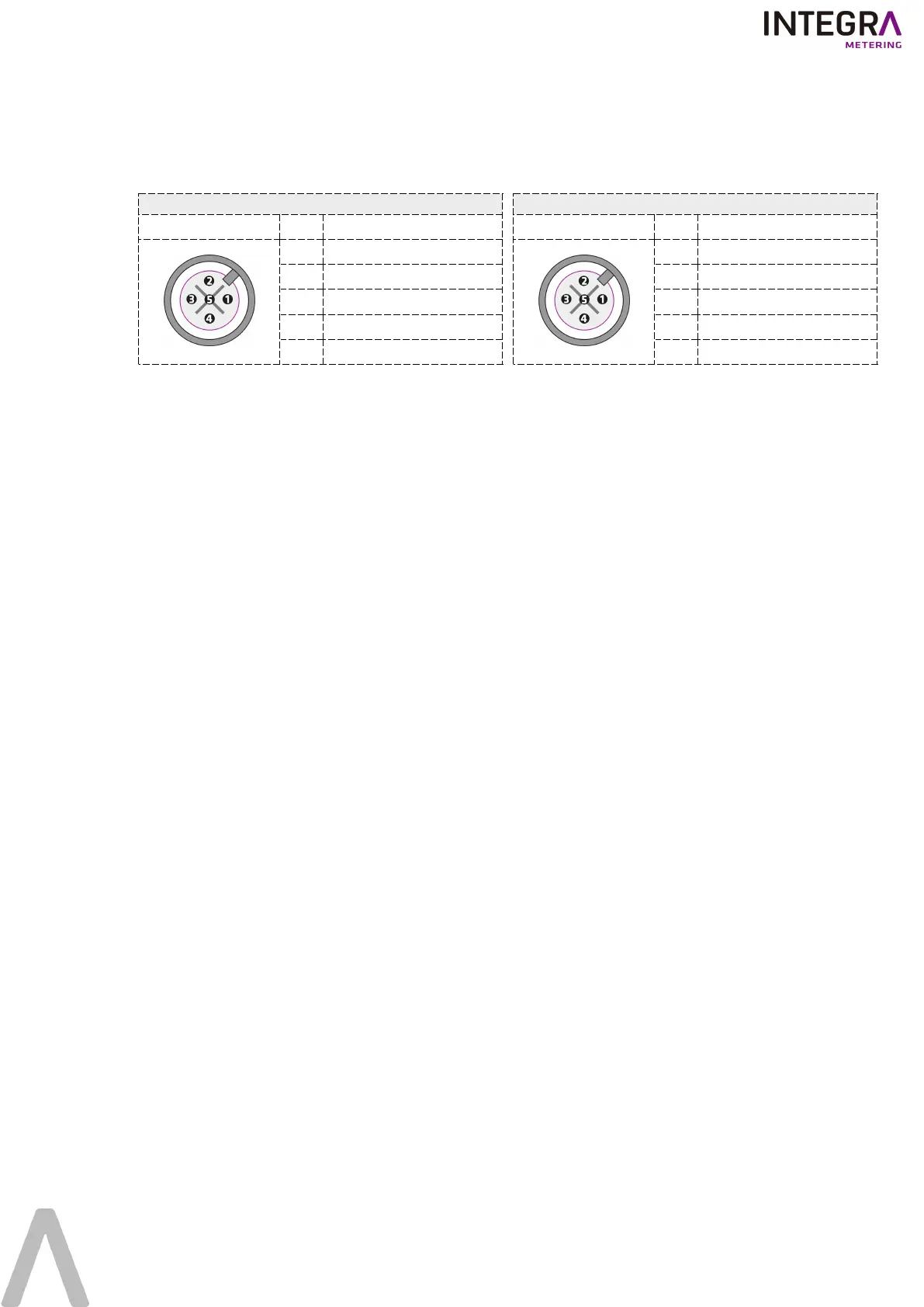

6. 2. Description of the RUBIN® SONIC Smart connector
The RUBIN® SONIC Smart has an "M 12X5" connector, it is available in two output communication systems M-Bus or Pulse
(the Pulse output is equipped with a cut cable detection alert).
M-Bus communication system
M 12X5 male connector Pinout Function
1 M-Bus B
2 Pulse
3 GND
4 Direction
5 M-Bus A
Pulse output communication system
M 12X5 male connector Pinout Function
1 Not used
2 Pulse (OC 1)
3 GND
4 Direction (OC 2)
5 Cable cut
1-320-UM-EN-03 11/13
