5. Understanding the interface RUBIN® SONIC Smart

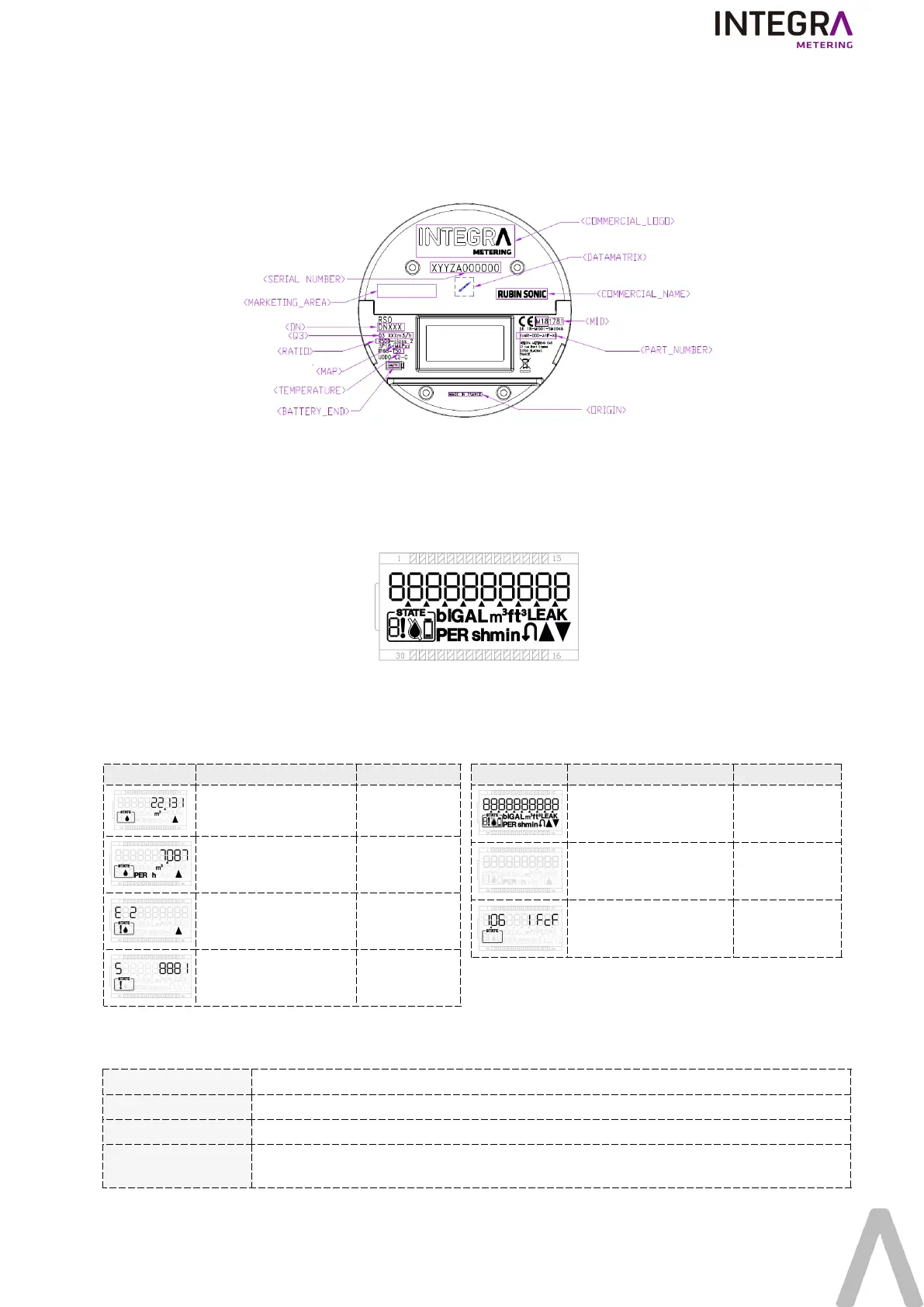

5. 1. Understand the face plate
5. 2. Screen display information
5. 2. 1. Display sequence
To show the data read by the meter in the display, various windows have been created as functions that can display the assigned
system information.
The LCD screen changes automatically to display the following information: net or forward volume, reverse volume, flow rate,
events, firmware version, flow direction, meter state.
The basic display sequence is defined in two cycles, one main cycle and a secondary which launches after 120 seconds.
The basic display sequence: The second sequence of the display every 120s:
LCD screen Description Display time
Net volume 10s
Flow rate 2s
Events (if event are set) 2s
Service (if service error
are set)
2s
LCD screen Description Display time
Display all segment ON 2s
Display all segment OFF 2s
Display metrology FW
version and CRC
2s
5. 2. 2. Display characteristics
Display indication
LCD 10 digits
Units
m
3
, L, Hour
Displayed values
Volume, flow, reverse flow, display test, events and alarms statuts, F/W version
Evenrs and alarms
Reverse flow, low battery, leakage, air bubbles, burst, frost, heat, dry, over, temperature, no con-
sumption
8/13 1-320-UM-EN-03
