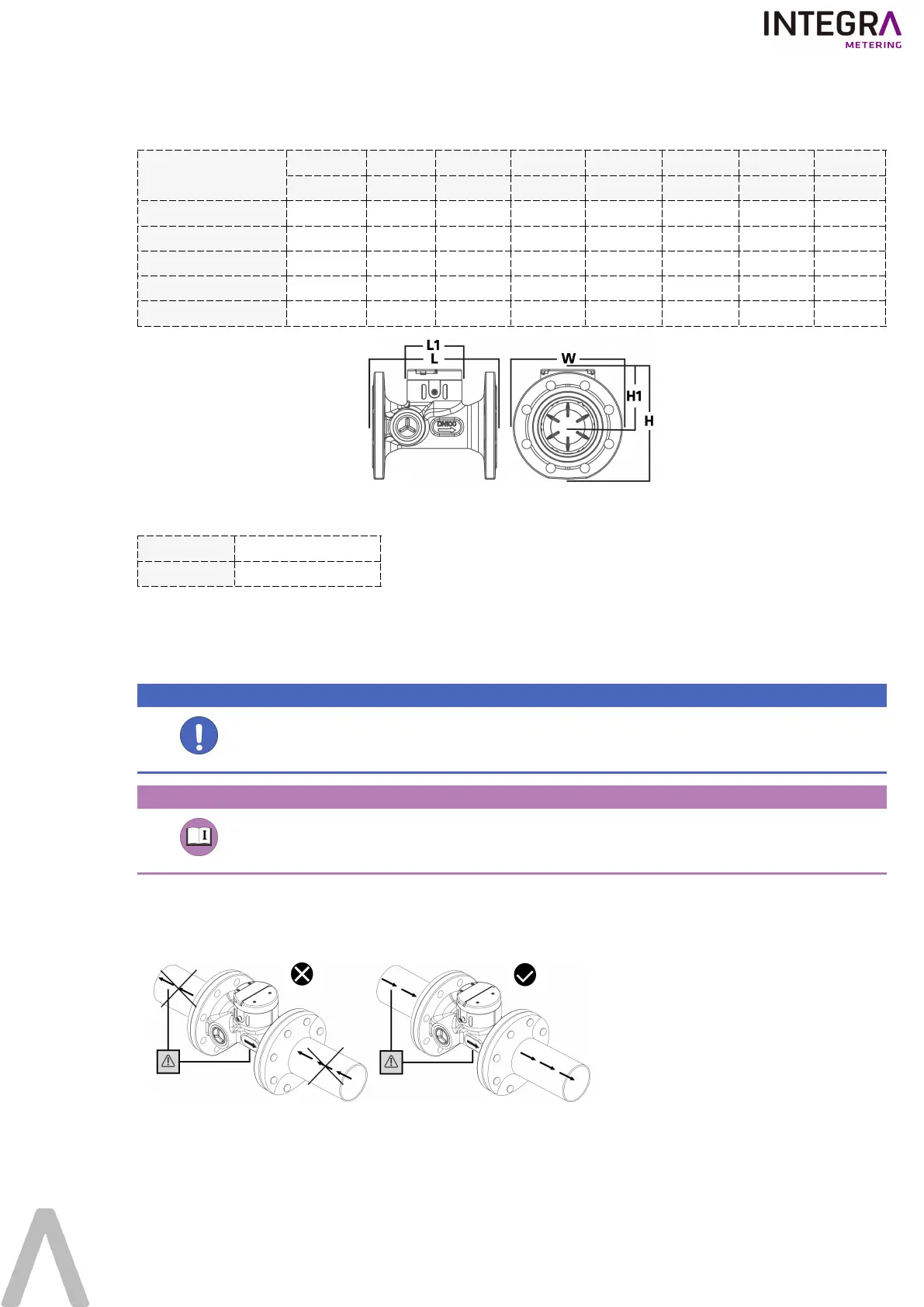

3. 2. Dimensions
Dimensions
DN 50 65 80 100 125 150 200
Inches 2 2"
1/2
3 4 5 6 8
Weight
Kg 10 12 13 15 18 25 36
Height (H1)
mm 97 103 108 115 127 134 152
Total height (H)
mm 182 198.5 215.5 233.5 259.5 275.5 312
Width (W)
mm 165 185 200 220 240 260 340
Housing length (L1)
mm 110 110 110 110 110 110 110
3. 3. Power supply
Type
Lithium battery
Lifetime
Up to 16 years*
* Depending on sending interval of radio telegram, telegram length operating temperature.
4. Installation and checks
NOTICE
Notice
The meter must be installed in compliance with the requirements of ISO 4064 and the EC Type Examination
Certificate. Medium: Water without additives.
REFERENCE
Reference
Detailed instructions can be found in the enclosed "Installation guide", which are enclosed with every pack-
age of the product.
4. 1. Installation the RUBIN® SONICSmart
1. Thoroughly flush out the pipes before installing the meter.
2. The meter has to be installed so that the direction of the arrow on the meter housing corresponds to the direction of flow.
1-320-UM-EN-03 5/13
