1-981-2180-GB, 2021-03-16 BCR-SD G2 Page: 14
SystemHouse Solutions
5.2 RS485 communication line
The RS485 bus must be configured as a bus with no branches. The bus needs to be terminated at
each end. Jumpers are provided on each device (Moveo, Moveo XL, C-Node G2 or S-Node G2 and
card readers) to enable or disable termination. Up to two card readers can be connected to the same
S-Node G2, in-reader and out-reader.
Since together with communication line is distributed also power line we do use mixed cable to
supply both in one.

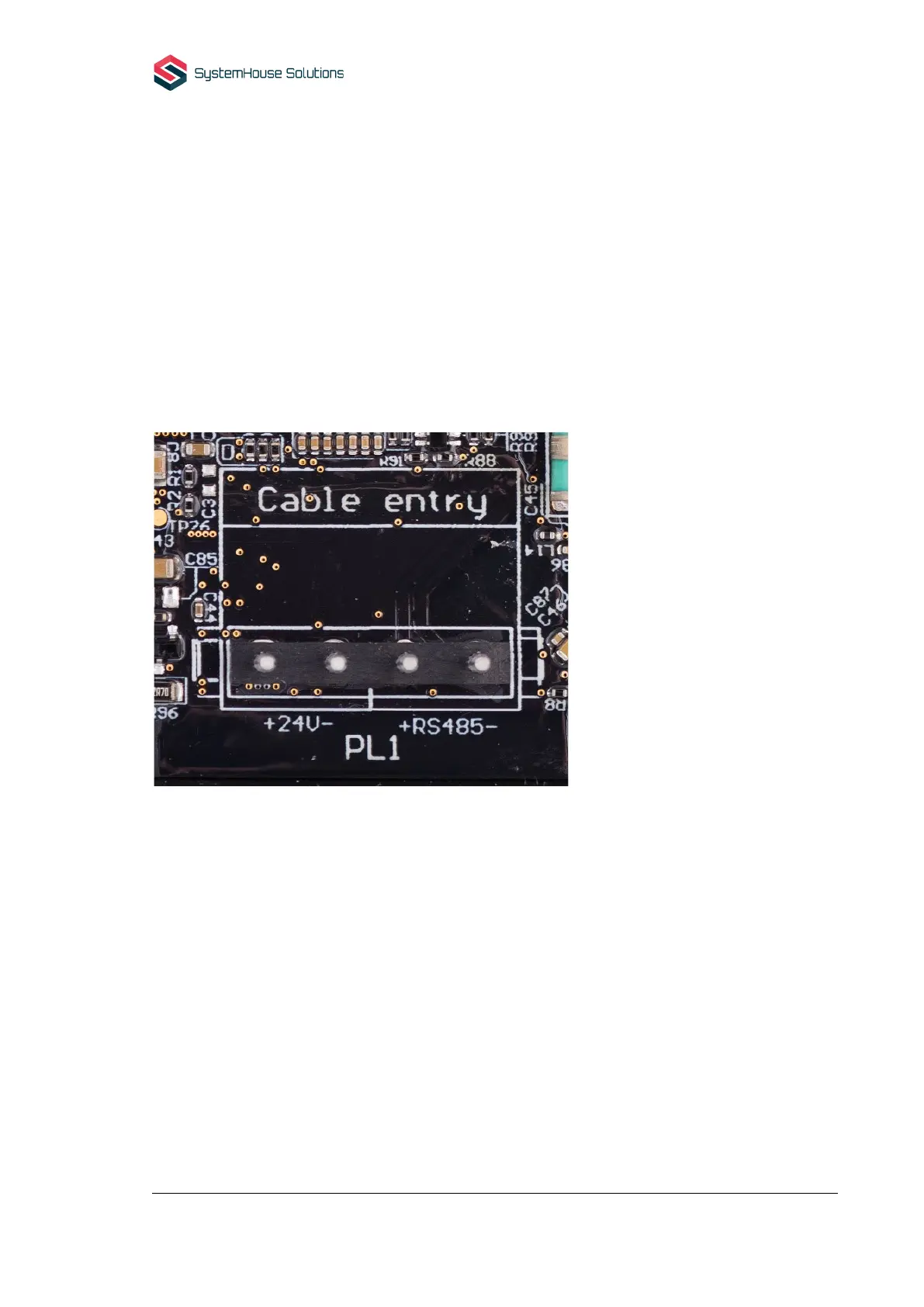

5.2.1 Line installation
PL1 24VDC/RS485
