6.2 Fixing common issues with the reader
6.2.1 No communication with the Reader

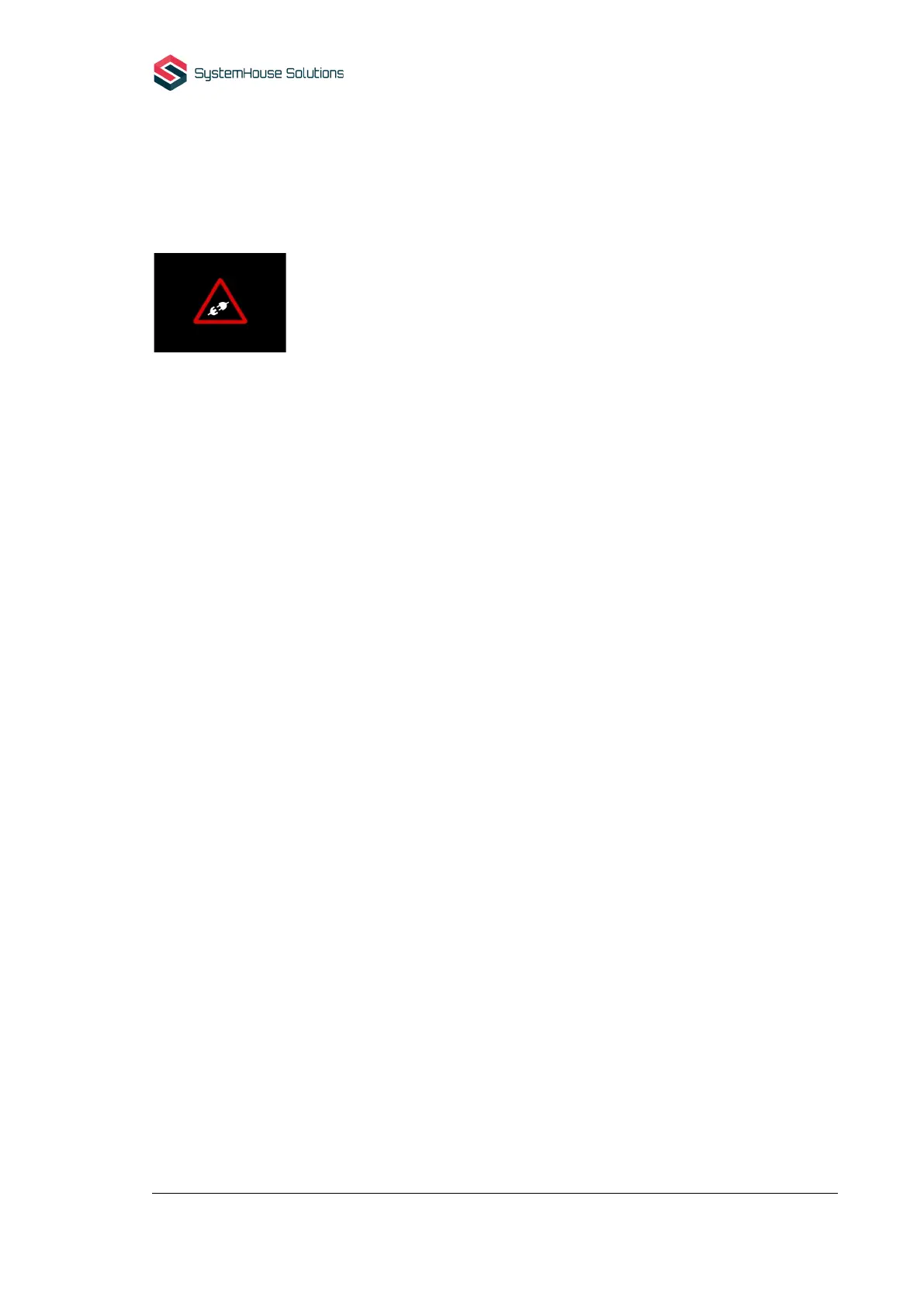

Check display, if next picture is presented there is no RS485 communication between reader and
master device.
Solution:
1. Check wires for RS485 if they are properly attached to screw terminal.
2. Check polarity for wires.
3. Check setting of switch SW1 – termination of RS485 according position of reader on the
line.
4. Compare device address with address set in the system.
6.2.2 Reader is not working
Solution:
1. Check wiring of the connectors, check polarity.
2. Check power supply if it’s within range 20-30 V DC.
3. Check setting of switch SW1 – termination of RS485 according position of reader on the
line.
4. Check setting inside system if device has proper address set.
