Integra DHC-80.3 User Manual

10
En
a UNIVERSAL PORT jack
b IR IN (A/B) and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 port
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k COMPONENT VIDEO ZONE 2 OUT jacks
l ZONE 2 OUT V jack
m PC IN jack
n FM ANTENNA jack and AM ANTENNA terminal
o AC INLET
p GND screw
q Input jacks (BALANCE L/R)
r 12V TRIGGER OUT (A/B/C) jacks
s Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT,
CBL/SAT IN, GAME IN, PC IN, TV/CD IN and
PHONO IN)
t MULTI CH input jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R and SUBWOOFER)
u PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2)
v ZONE 2 and ZONE 3 PRE/LINE OUT jacks
w PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SUBWOOFER 1 and SUBWOOFER 2)

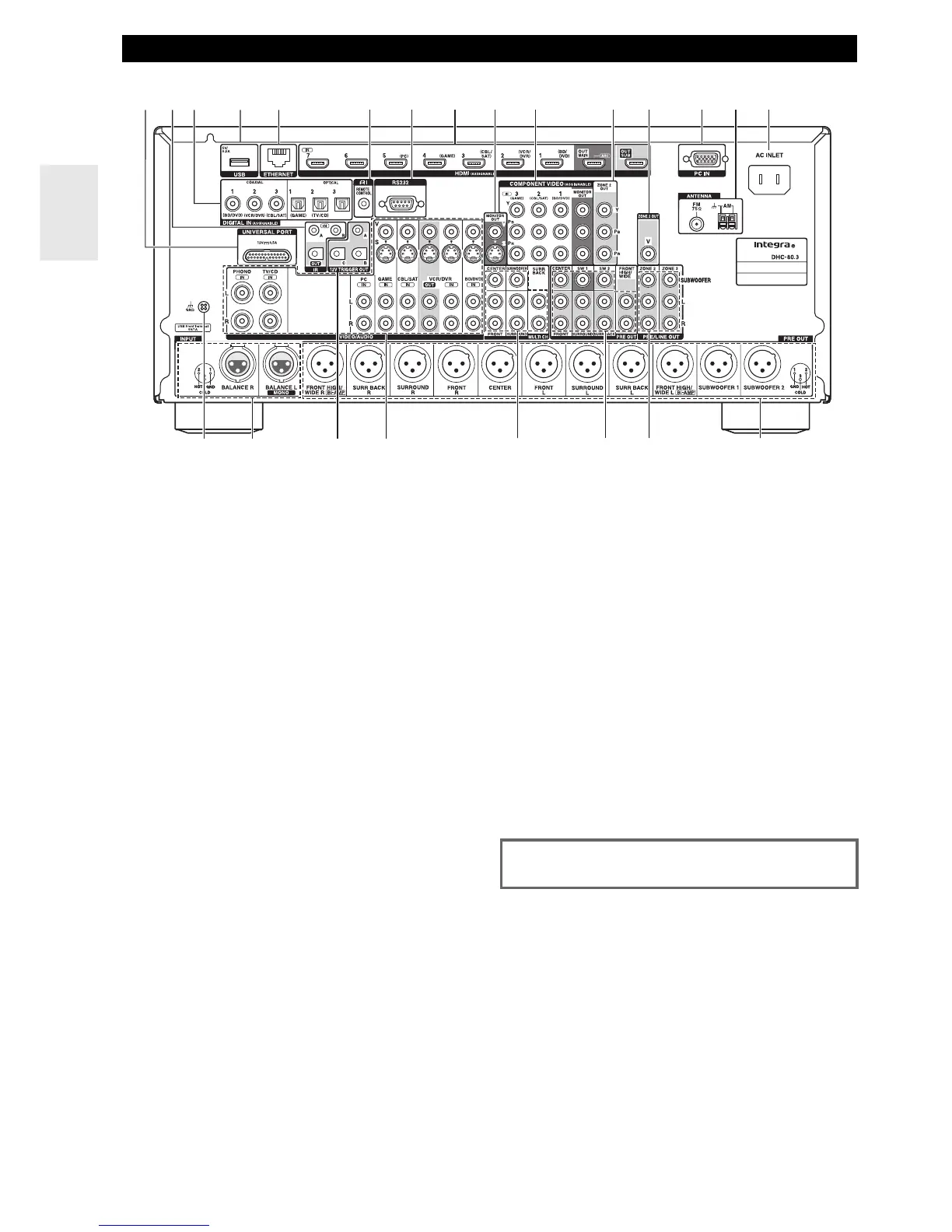

Rear Panel
fgh jilk nm
o
p
st
u
e
q r
vw
badc
See “Connecting the AV Controller” for connection
(➔ pages 12 to 24).
