74
En

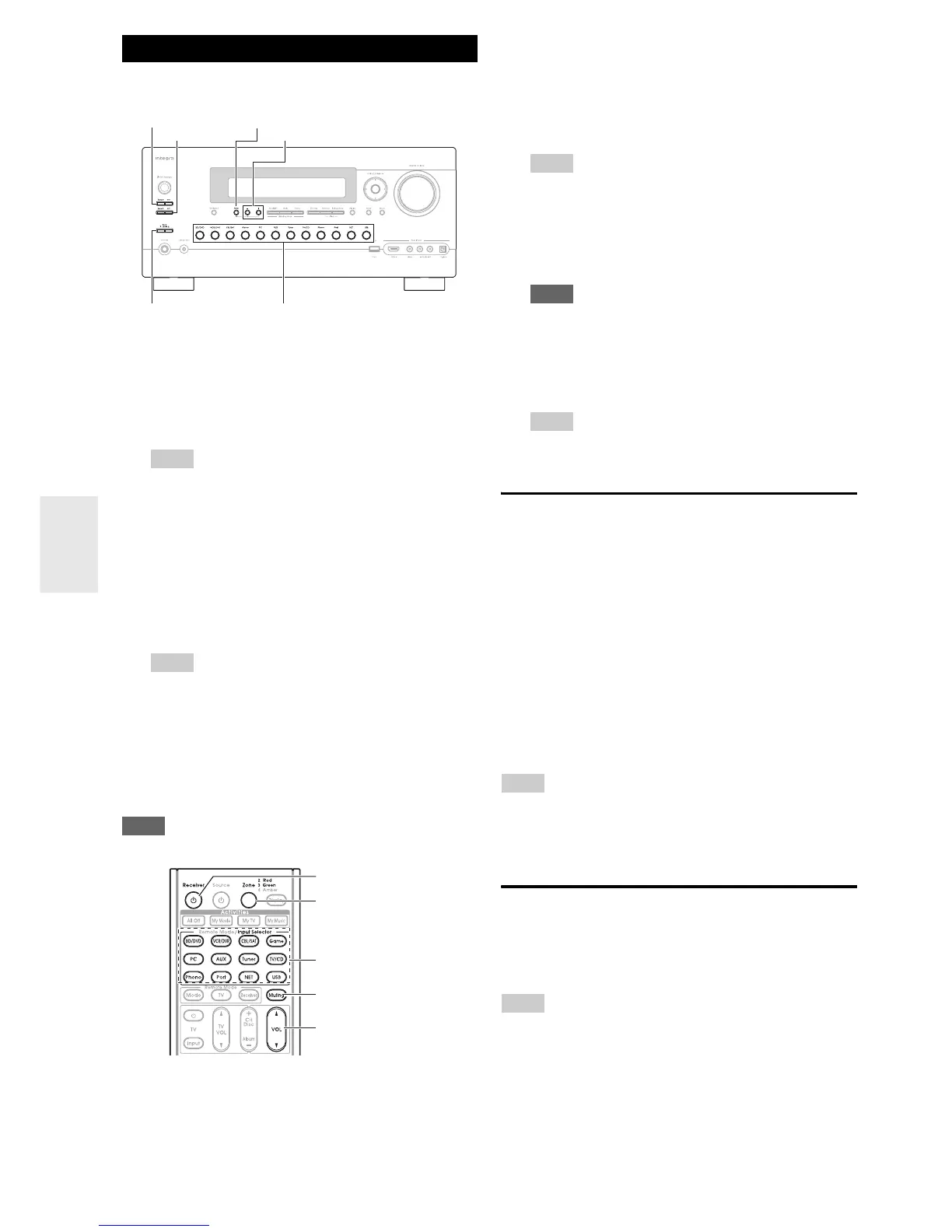

■ Operating on the AV controller
■ Operating on the remote controller
To control Zone 2/3, you must press the remote
controller’s Zone first.
Zone turns red while Zone 2 is on, and green while
Zone 3 is on.
Note
• Zone 4 is not available for this model.
Adjusting the Volume for Zones
■ Operating on the remote controller
■ Operating on the AV controller
Tip
• The Zone 2/3 volume, tone, and balance functions have no effect
on ZONE 2/3 PRE/LINE OUT when the “Zone 2 Out” or
“Zone 3 Out” setting is set to “Fixed” (➔ page 66).
Muting Zones
■ Operating on the remote controller
Tip
• To unmute, press Zone followed by Muting again. Zones can
also be unmuted by adjusting the volume.
Controlling Zone 2/3 Components
1
To turn on Zone 2/3 and select an input source,
press Zone 2 or Zone 3 followed by an input
selector button within 8 seconds.
Zone 2/3 turns on, the Z2/Z3 indicator lights on the
display.
Tip
• The corresponding trigger output goes high (+12 V).
To select AM or FM, press Tuner input selector and
Zone 2 or Zone 3 repeatedly.
To select the same source as the main room’s, press
Zone 2 or Zone 3 twice. “Z2 Selector: Source” or
“Zone 3 Selector: Source” appears on the display.
2
To turn off Zone 2/3, press Off for each Zone. The
zone is turned off, and the Z2/Z3 indicator goes off.
Tip
• The corresponding trigger output goes low (0 volts).
Zone 2, Off
Zone Level q/w
Zone 3, Off -, +
Tone
Input selector buttons
8Receiver
Muting
VOLq/w
Zone
Input selector buttons
1
Press Zone repeatedly, then point the remote
controller at the AV controller and press
8Receiver.
Zone 2/3 turns on, the Z2/Z3 indicator lights on the
display.
Tip
• The corresponding trigger output goes high (+12 V).
2
To select an input source for Zone 2/3, press Zone
repeatedly, followed by Input Selector.
To select AM or FM, press the Tuner input selector
and Zone repeatedly.
Note
• You cannot select different AM or FM radio stations for
your main room and Zone 2/3. The same AM/FM radio
station will be heard in each room.
3
To turn off Zone 2/3, press Zone repeatedly,
followed by 8Receiver.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone repeatedly.
2
Use VOL q/w to adjust the volume.
1
Press Zone 2 or Zone 3 (the Z2/Z3 indicator on
the display flash).
2
Use Zone Level q/w control within 8 seconds to
adjust the volume.
1
Press Zone repeatedly, and then press Muting.
