■ How to connect and setup
1
Confirm the connecting and setting.
1. Connect the HDMI OUT MAIN jack to the
HDMI input jack of the TV.
2. Connect the audio output from the TV to the
OPTICAL IN 2 jack of the AV controller using
an optical digital cable.
Note
• When the audio return channel (ARC) function is used with
an ARC capable TV, this connection is not necessary
(➔ page 68).
3. Connect the HDMI output of the Blu-ray
Disc/DVD player/recorder to the HDMI IN 1 jack
of the AV controller.
Note
• It is necessary to assign the HDMI input when connecting
the Blu-ray Disc/DVD player/recorder to other jacks
(➔ page 50). Do not assign the components connected to
the HDMI IN to the TV/CD input at this time. Appropriate
CEC (Consumer Electronics Control) operation can not be
guaranteed.
2
Change each item in the “HDMI” menu according
to the following settings:
• HDMI Control(RIHD): On
• Audio Return Channel (ARC): Auto
See details of each setting (➔ pages 67, 68).

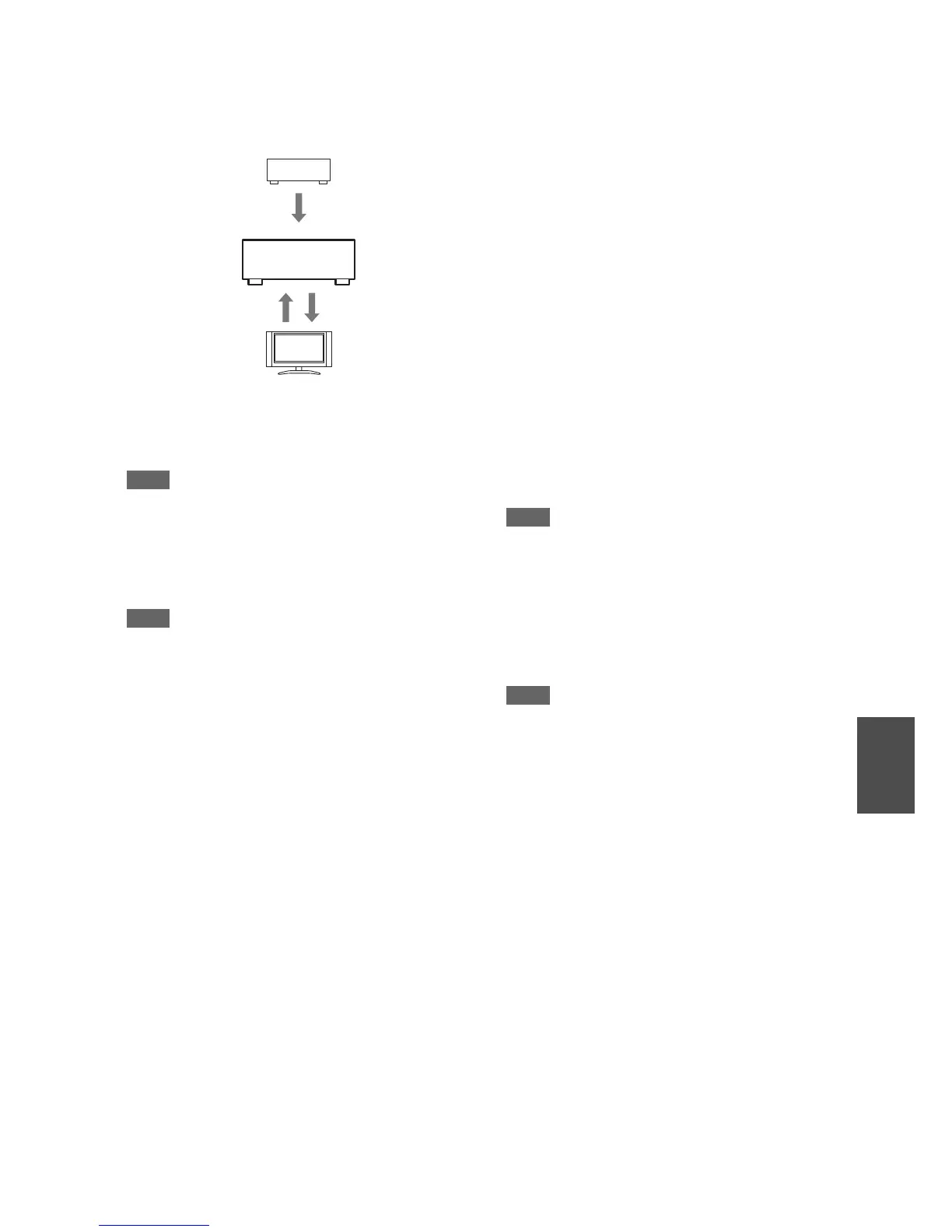

Blu-ray Disc/DVD player, etc.
AV controller
TV, projector, etc.
DIGITAL AUDIO
connection
(OPTICAL)
HDMI
connection
HDMI
connection
3
Confirm the settings.
1. Turn on the power for all connected components.
2. Turn off the power of the TV, and confirm that
the power of the connected components is turned
off automatically with the link operation.
3. Turn on the power of the Blu-ray Disc/DVD
player/recorder.
4. Start playback on the Blu-ray Disc/DVD
player/recorder, and verify the following.
• The AV controller automatically turns on, and
selects the input to which the Blu-ray
Disc/DVD player/recorder is connected.
• The TV automatically turns on, and selects the
input to which the AV controller is connected.
5. Following the operating instructions of the TV,
select “Use the TV speakers” from the menu
screen of the TV, and confirm that the audio is
output from the speakers of the TV, and not from
the speakers connected to the AV controller.
6. Select “Use the speakers connected from the AV
controller” from the menu screen of the TV, and
confirm that the audio is output from the speakers
connected to the AV controller, and not from the
TV speakers.
Note
• Perform the above operations when you use the AV
controller for the first time, when the settings of each
component are changed, when the main power of each
component is turned off, when the power cable is
disconnected from the power supply, or when there has
been a power outage.
4
Operate with the remote controller.
For buttons that can be operated (➔ page 83).
Note
• Audio from DVD-Audio or Super Audio CD may not
output from the TV speakers. You will be able to output the
audio from the TV speakers by setting the audio output of
the DVD player to 2ch PCM. (It may not be possible
depending on the player models.)
• Even if you set to output audio on the TV speakers, audio
will be output from the speakers connected to the AV
controller when you adjust the volume or switch the input
on the AV controller. To output audio from the TV
speakers, re-do the operations on the TV.
• In case of an p connection with u and u audio
control compatible components, do not connect the RI
cable at the same time.
• On the TV, when you select anything other than the HDMI
jack to which the AV controller is connected, the input on
the AV controller will be switched to “TV/CD”.
• The AV controller will automatically power on in
conjunction when it determines it to be necessary. Even if
the AV controller is connected to an p compatible
TV or player/recorder, it will not power on if it is not
necessary. It may not power on in conjunction when the TV
is set to output audio from the TV.
• Linked functions with the AV controller may not work
depending on the component model connected. In such
cases, operate the AV controller directly.
