Integra DRX-2.4 User Manual

7.1ch
3.1.2ch
5.1.2ch
3.1ch
5.1ch
26
Speaker Installation

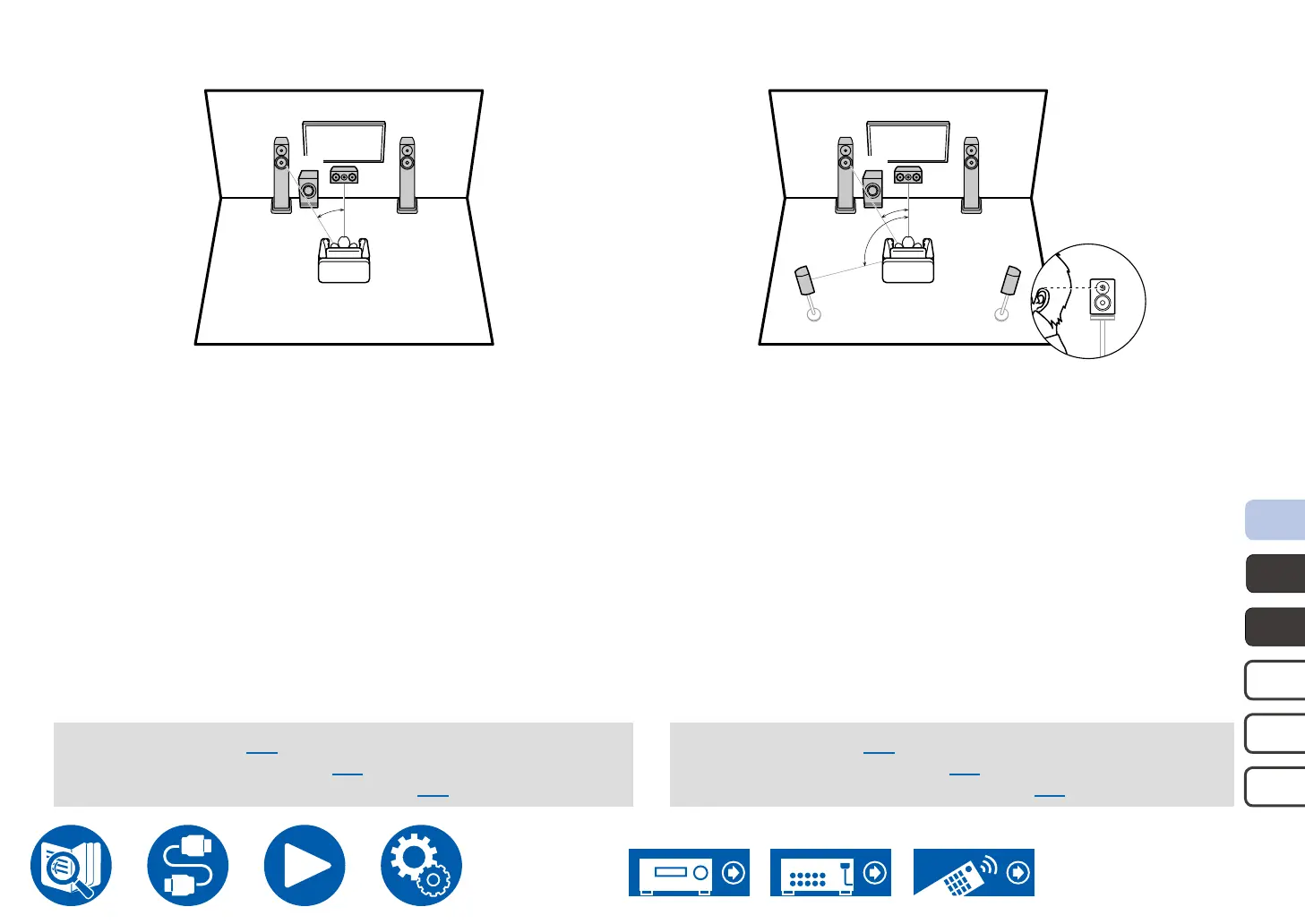

 3.1 Channel System
a
FL FR
C
SW
a: 22° to 30°
FL, FR Place the Left and Right Front Speakers to match ear height.
C The center speaker should be set up facing the listening position at
an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
3.1 ch connection ( →p33)
3.1 ch + ZONE 2 connection ( →p34)
3.1 ch (Bi-Amping (Front)) connection ( →p35)
 5.1 Channel System
b
a
FL FR
SL SR
C
SW
a: 22° to 30°, b: 120°
FL, FR Place the Left and Right Front Speakers to match ear height.
C The center speaker should be set up facing the listening position
at an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the Left and Right Surround Speakers to be just above ear
height.
5.1 ch connection ( →p36)
5.1 ch + ZONE 2 connection ( →p37)
5.1 ch (Bi-Amping (Front)) connection ( →p38)
