Speaker Installation

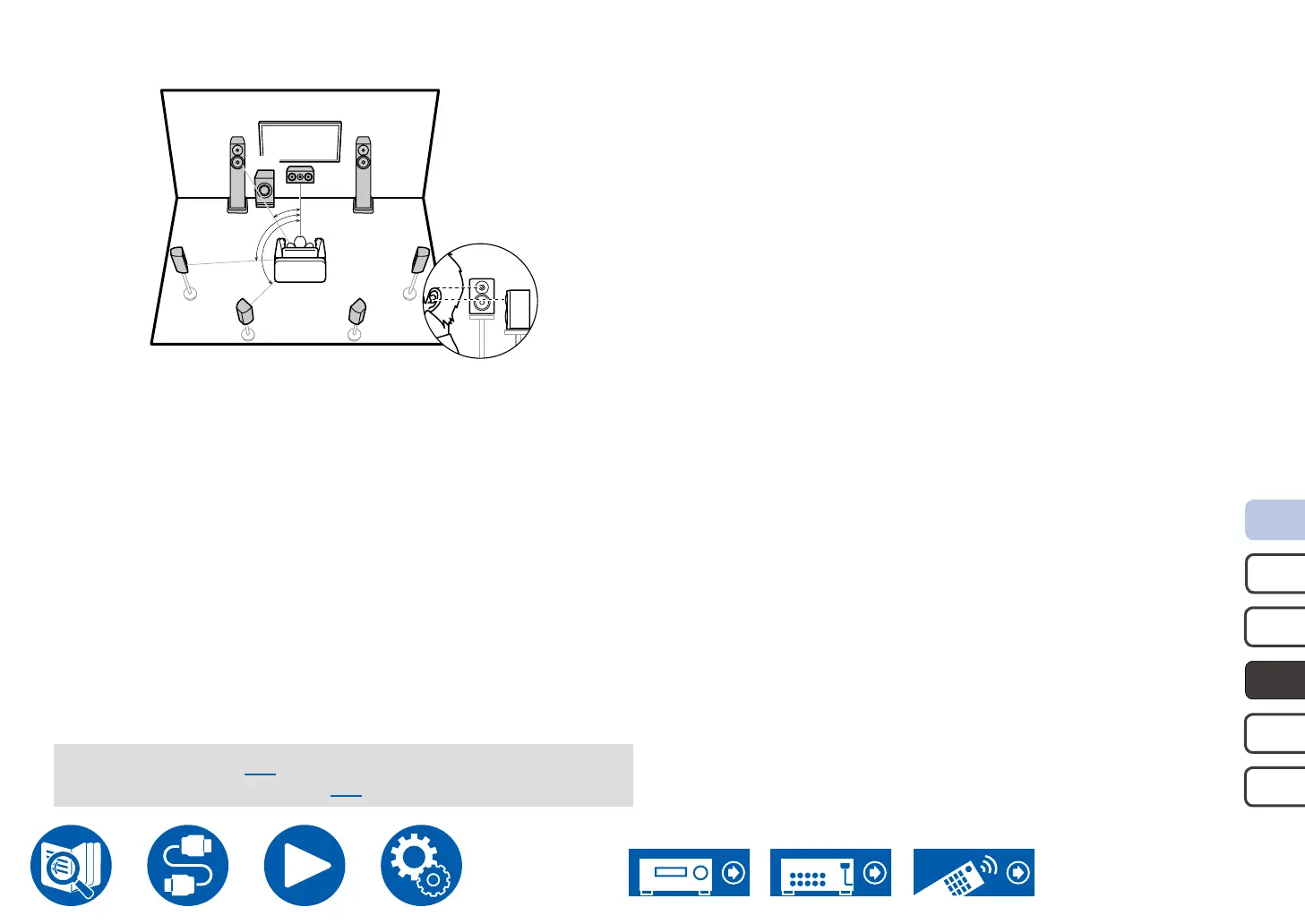

7.1 Channel System
b
c
a
FL FR
C
SW
SL SR
SBL SBR
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
FL, FR Place the Left and Right Front Speakers to match ear height.
C The center speaker should be set up facing the listening position at
an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the Left and Right Surround Speakers to be just above ear
height.
SBL, SBR Place the Left and Right Surround Back Speakers at ear height.
• If surround back speakers are installed, be sure to install surround speakers
as well.
7.1 ch connection ( →p39)
7.1 ch + ZONE 2 connection ( →p40)
