 5.1.4 Channel System + ZONE SPEAKER
MAIN ROOM
2 1
78
9bk
54
6
3
ZONE 2
bm bl

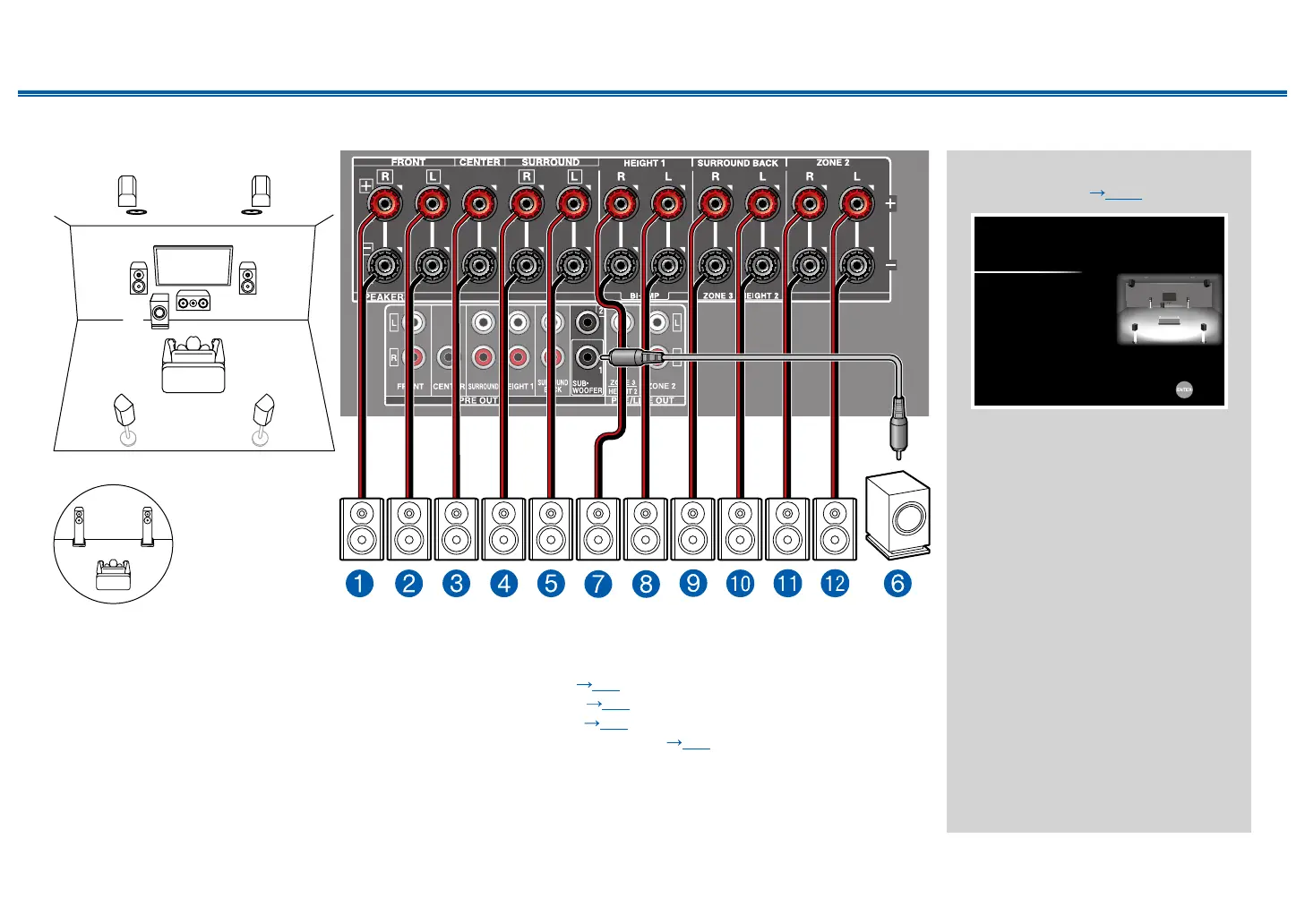

MAIN ROOM: This is an example of combining the top middle speakers at the front and the rear high speakers at the rear
to the 5.1 Channel System. The height speakers in front can be selected from following 4 types. The height speakers that
can be combined at the rear di󰀨er depending on the height speakers used at the front.
❏ Combination example when Top Front Speakers are used at the front ( p25)
❏ Combination example when Top Middle Speakers are used at the front ( p27)
❏ Combination example when Front High Speakers are used at the front ( p28)
❏ Combination example when Dolby Enabled Speakers (Front) are used at the front ( p30)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, di󰀨erent
sources can be played back in both rooms.
• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room cannot play audio.
 "Speaker Setup" settings during
Initial Setup ( p163)
Speaker Setup
< >
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Bi-Amp
5.1.4 ch
Yes
Top Middle
Rear High
Zone 2
No
Select how many speakers you have.
Next
• Speaker Channels: 5.1.4 ch
• Subwoofer: Yes
• Height 1 Speaker: Select the type of
height speaker actually installed.
• Height 2 Speaker: Select the type of
height speaker actually installed.
• Zone Speaker: Zone 2
• Bi-Amp: No
