 7.1.4 Channel System
2
9bk
blbm
87
5
4
6
3
1
Power amplier

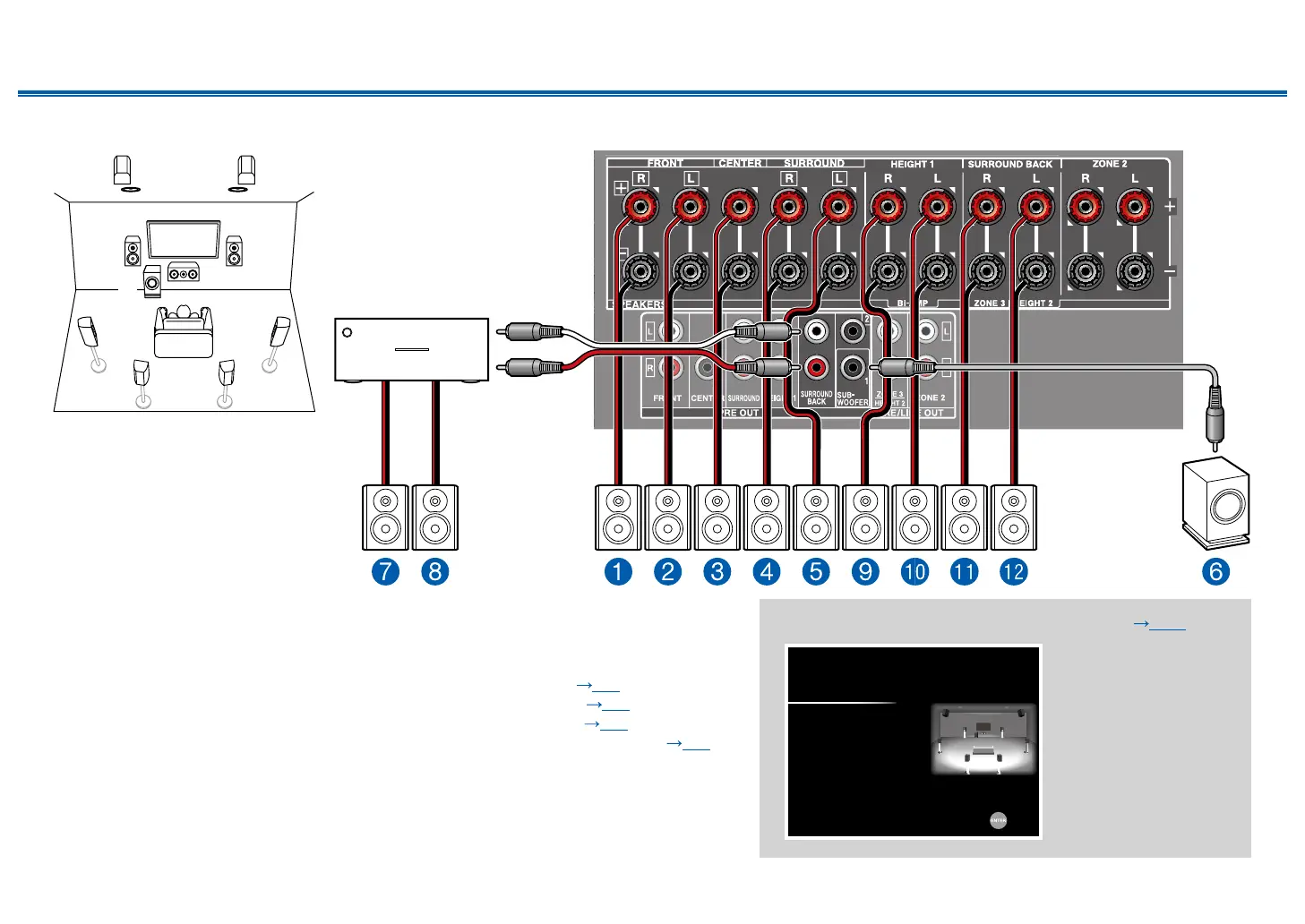

This is an example of combining the top middle speakers at the front and the rear high
speakers at the rear to the 7.1 Channel System. The height speakers in front can be selected
from following 4 types. The height speakers that can be combined at the rear di󰀨er depending
on the height speakers used at the front.
❏ Combination example when Top Front Speakers are used at the front ( p33)
❏ Combination example when Top Middle Speakers are used at the front ( p35)
❏ Combination example when Front High Speakers are used at the front ( p36)
❏ Combination example when Dolby Enabled Speakers (Front) are used at the front ( p38)
 "Speaker Setup" settings during Initial Setup ( p163)
Speaker Setup
< >
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Bi-Amp
7.1.4 ch
Yes
Top Middle
Rear High
No
No
Select how many speakers you have.
Next
• Speaker Channels: 7.1.4 ch
• Subwoofer: Yes
• Height 1 Speaker: Select
the type of height speaker
actually installed.
• Height 2 Speaker: Select
the type of height speaker
actually installed.
• Zone Speaker: No
• Bi-Amp: No
