 7.1.4 Channel System + ZONE SPEAKER
MAIN ROOM
2
9bk
blbm
87
5
4
6
3
1
ZONE 2
bo bn
Power amplier

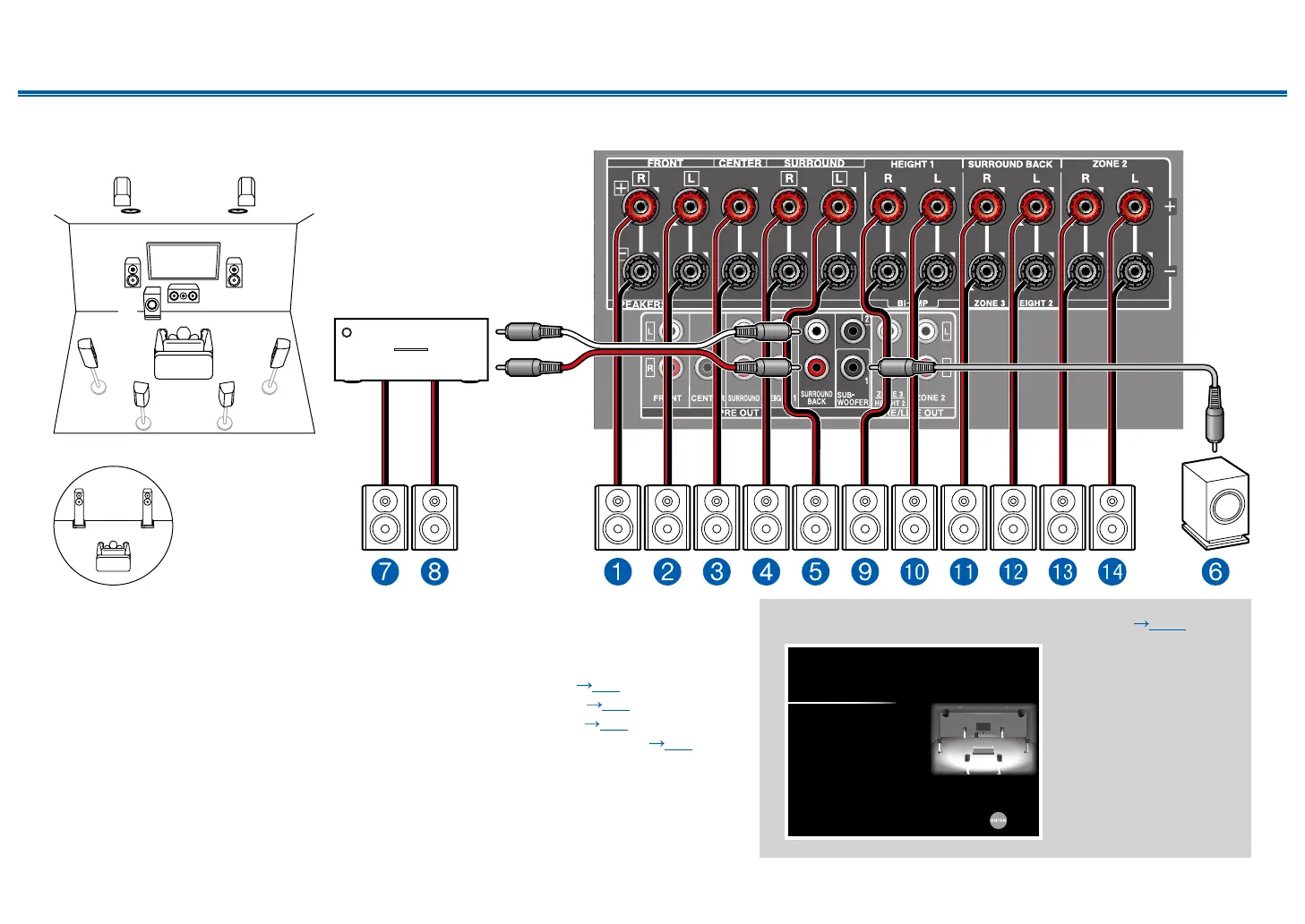

MAIN ROOM: This is an example of combining the top middle speakers at the front and the
rear high speakers at the rear to the 7.1 Channel System. The height speakers in front can be
selected from following 4 types. The height speakers that can be combined at the rear di󰀨er
depending on the height speakers used at the front.
❏ Combination example when Top Front Speakers are used at the front ( p33)
❏ Combination example when Top Middle Speakers are used at the front ( p35)
❏ Combination example when Front High Speakers are used at the front ( p36)
❏ Combination example when Dolby Enabled Speakers (Front) are used at the front ( p38)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback
in the main room (where this unit is located). The same source can be played back in the main
room and ZONE 2 simultaneously. Also, di󰀨erent sources can be played back in both rooms.
• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room
cannot play audio.
 "Speaker Setup" settings during Initial Setup ( p163)
Speaker Setup
< >
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Bi-Amp
7.1.4 ch
Yes
Top Middle
Rear High
Zone 2
No
Select how many speakers you have.
Next
• Speaker Channels: 7.1.4 ch
• Subwoofer: Yes
• Height 1 Speaker: Select
the type of height speaker
actually installed.
• Height 2 Speaker: Select
the type of height speaker
actually installed.
• Zone Speaker: Zone 2
• Bi-Amp: No
