1/2˝
(12 mm)
For high-
frequency
For low-
frequency
1 Speaker cable, 2 Subwoofer cable
in case of:
Page 8

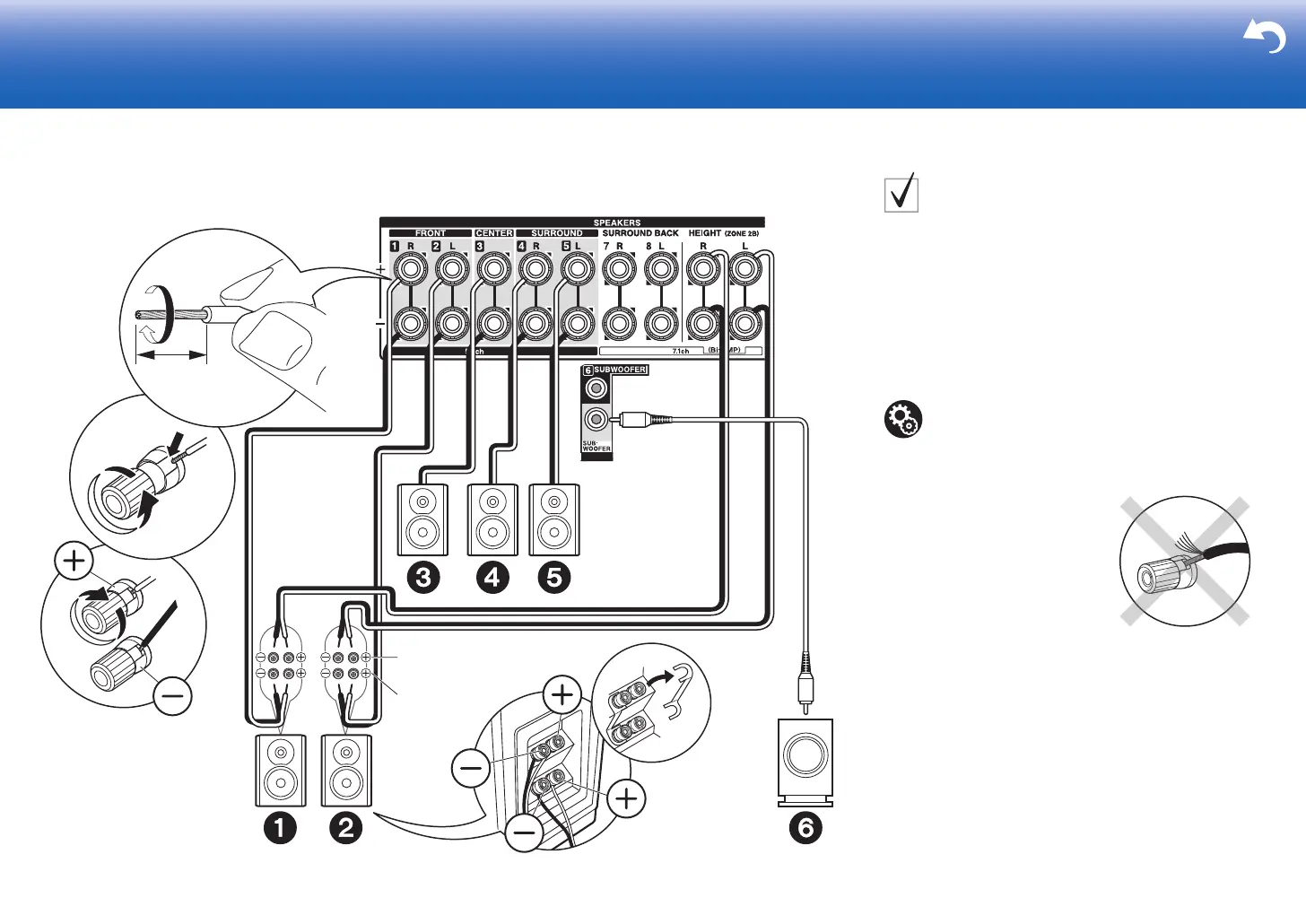

Connect front speakers compatible with Bi-Amping
connection to the FRONT jacks and the HEIGHT jacks.
Make sure you remove the jumper bar fitted between the
woofer jacks and tweeter jacks of the front speakers. In
case of Bi-Amping connection, refer to the instruction
manual of your speakers. Up to two powered subwoofers
can be connected. The same signal is output from each of
the SUBWOOFER jacks.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
Setup
0 Bi-Amping connection requires you to change
some settings. Select "Yes" in "Bi-Amp" in "1.
AccuEQ Room Calibration" (
P20) in the Initial
Setup.
