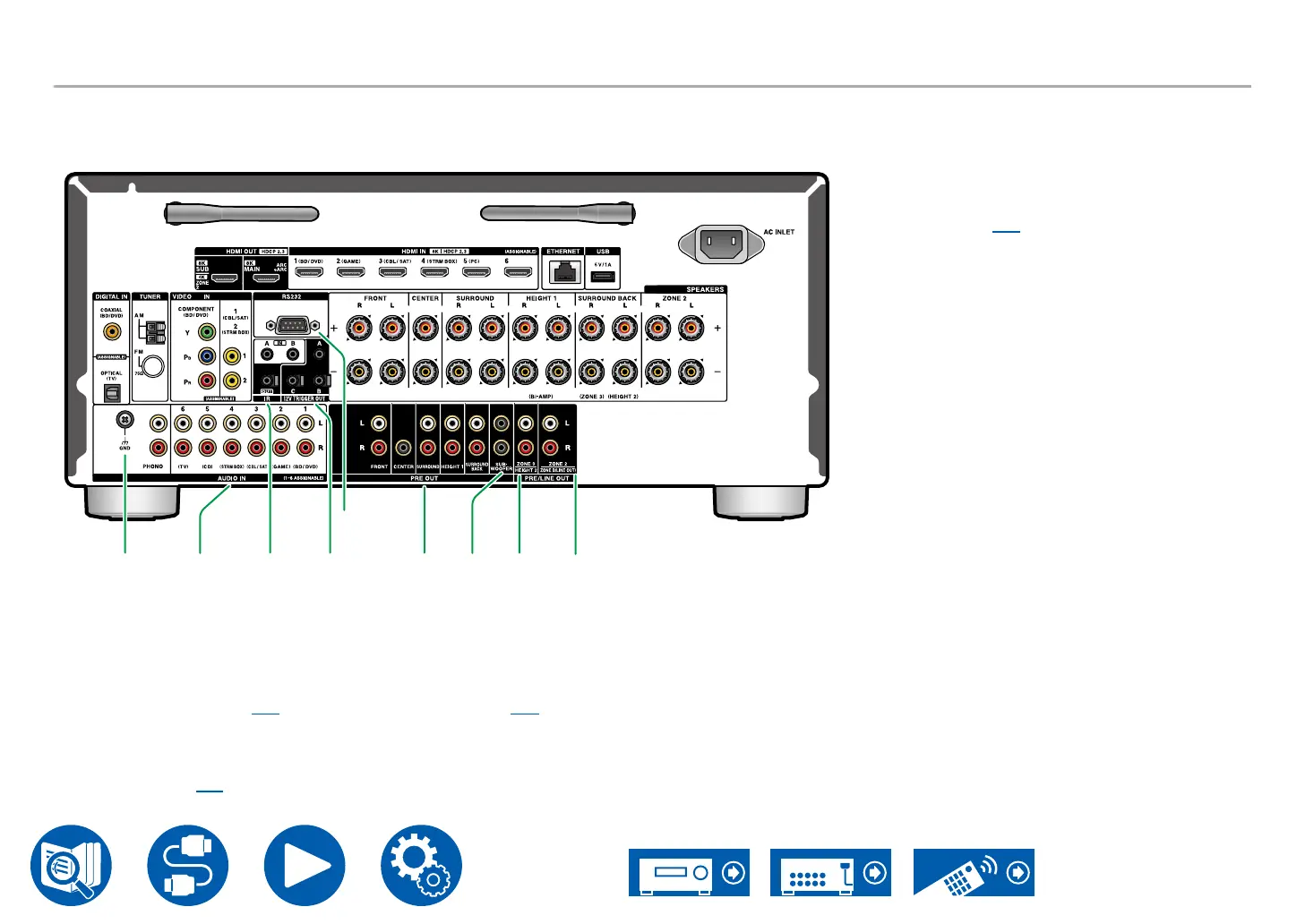

Rear Panel
KLMN P
QR S
O
K GND terminal: Connect the ground wire of the
turntable.
L AUDIO IN jacks: Input AV component audio
signals with an analog audio cable.
M IR IN A/B, IR OUT port: Connect a remote
control receiver unit. ( →p69)
N 12V TRIGGER OUT A/B/C jack: Connect a
device equipped with a 12V trigger input jack to
enable power link operation between the device
and this unit. ( →p70)
O RS232 port: Connect a home control system
equipped with an RS-232C port. For installing
a home control system, contact the specialized
stores.
P PRE OUT jacks: Connect a power amplier.
( →p55)
Q SUBWOOFER PRE OUT jacks: Connect a
powered subwoofer with a subwoofer cable.
Up to two powered subwoofers can be
connected. The same signal is output from each
SUBWOOFER PRE OUT jack.
R ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 3).
HEIGHT 2 PRE OUT jacks: Connect a power
amplier. ( →p55)
S ZONE 2 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 2).
ZONE B LINE OUT jacks: Simultaneously
output the same audio source as the speakers
(ZONE A) connected to this unit by connecting
this unit to wireless headphones, wireless
speaker transmitter, etc., using an analog audio
cable.
