14

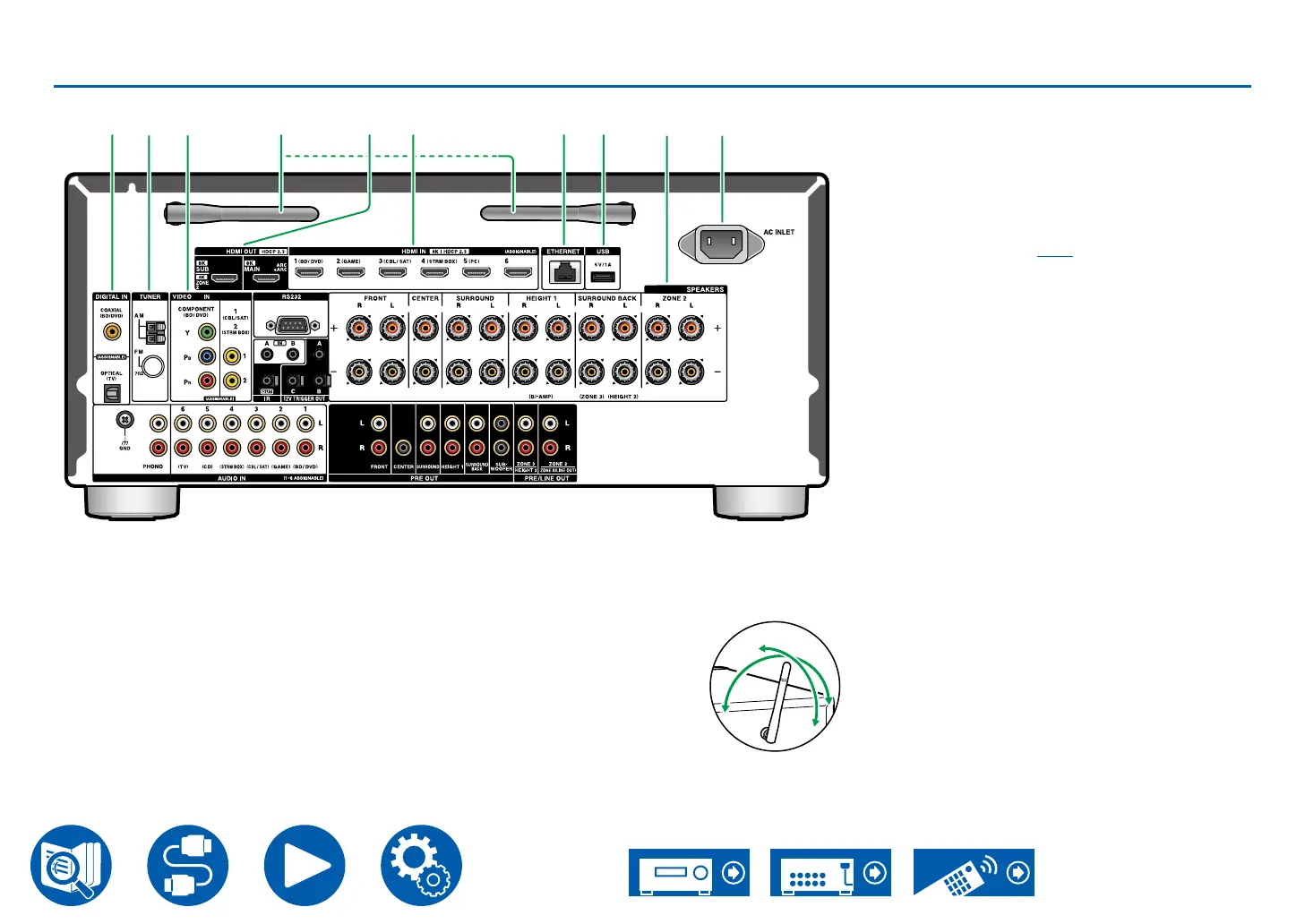

Rear Panel
ABCD 6 7 HIJE
A DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
B TUNER AM/FM terminal: Connect the supplied
antennas.
C COMPONENT VIDEO IN jacks: Input AV
component video signals with a component
video cable. (Compatible only with 480i or 576i
resolution.)
VIDEO IN jacks: Input AV component video
signals with an analog video cable.
D Wireless antenna: Used for
WI-Fi connection or when
using a BLUETOOTH enabled
device. Adjust the angles
according to the connection
status.
E HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
F HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
G ETHERNET port: Connect to the network with
an Ethernet cable.
H USB port: Connect a USB storage device to
play music les ( →p105). You can also supply
power (5 V/1 A) to USB devices with a USB
cable.
I SPEAKERS terminals: Connect speakers with
speaker cables. (North American models support
banana plugs. Use a plug 4 mm in diameter.) Y
plug connection is not supported.
J AC INLET: Connect the supplied power cord.
180°
90°
