Integra DRX-5.4 User Manual

7.1. 2c h
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
51
Speaker Connections

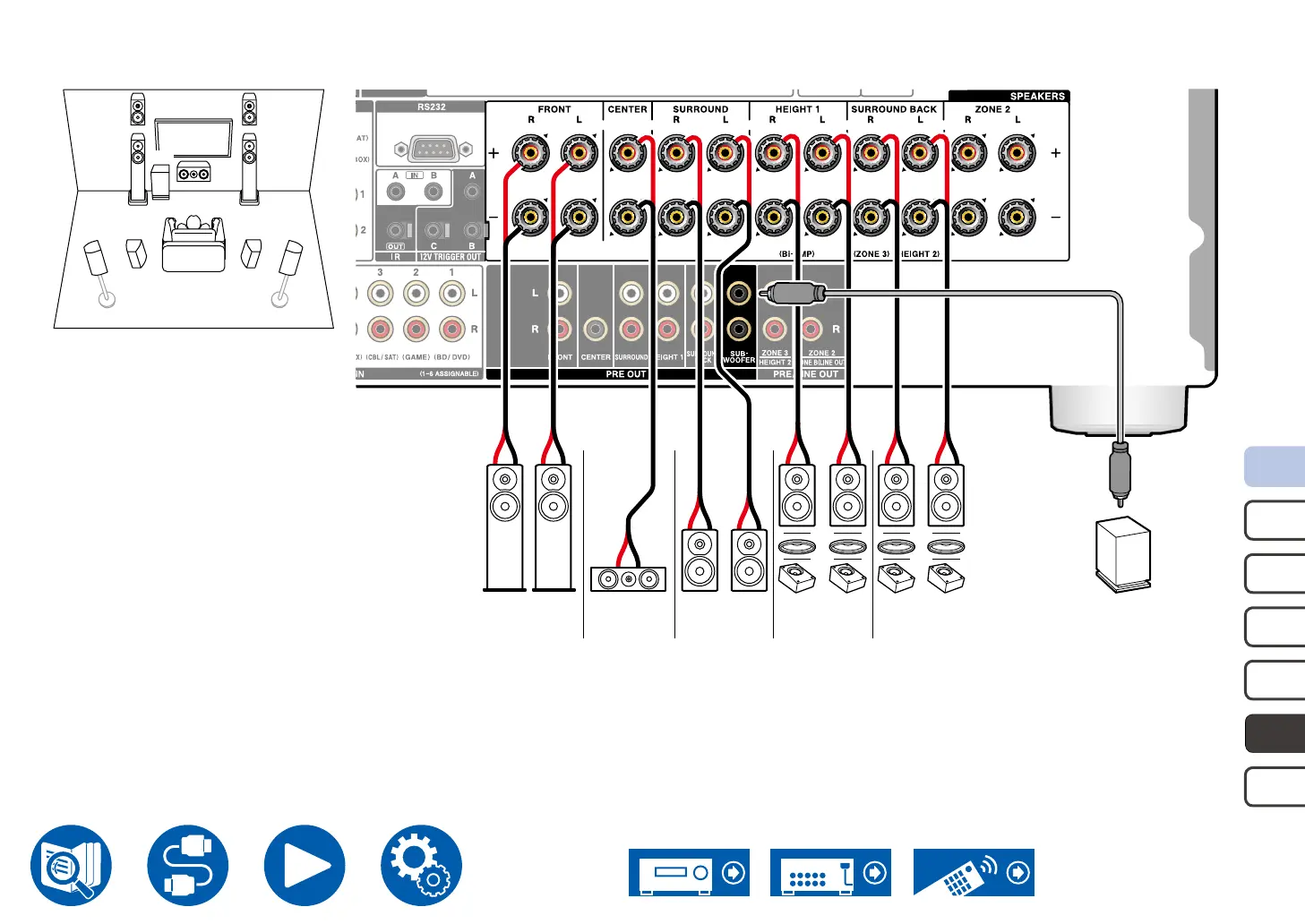

 5.1.4 Channel System
SL SR
FL FR
C
SW
HL1 HR1
HR2HL2
C
SR SLFR FL HR2 HL2HR1 HL1
SW
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
*1 *2
