Advanced speaker connections
En-61
Advanced speaker connections

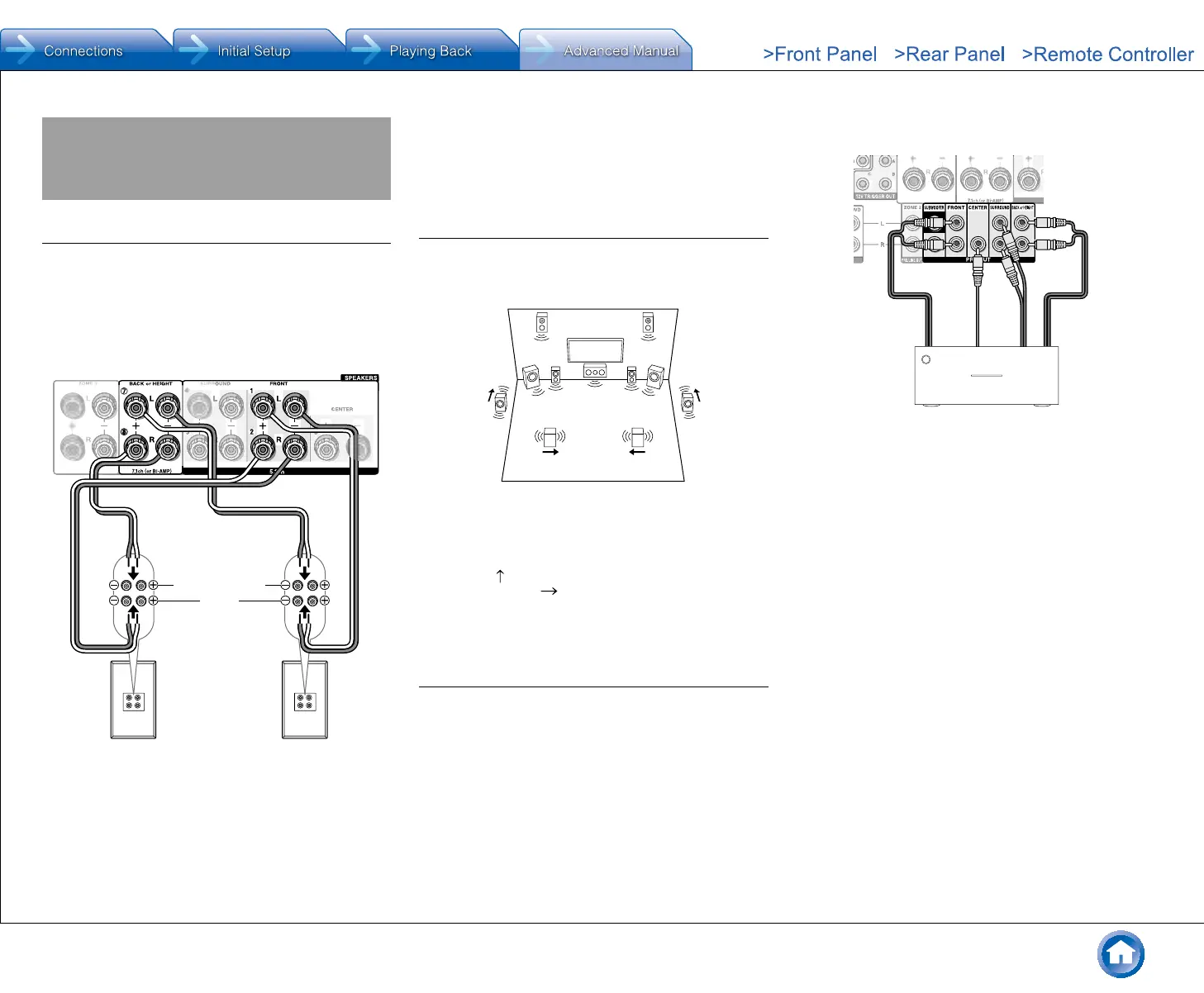

Connecting Bi-amp Speakers
It is possible to connect speakers supporting bi-amping to
improve quality of the bass and treble� Up to 5�1 ch will be
played in bi-amping�
¼ Connections
1� Connect as below using the FRONT terminals and
BACK or HEIGHT terminals�
Tweeter
(high pitched tone)
Woofer
(low pitched tone)
Front R Front L
2� Turn the unit on and make the bi-amping setting�
1 After pressing RCV on the remote controller, press
Setup�
2 With the cursors, select "2� Speaker" -
"Configuration" - "Bi-Amp"�
3 Select "Yes" with the cursors�
● Before bi-amping, be sure to remove the short-
circuit connector that connects the tweeter (treble)
jack and the subwoofer (bass) jack�
● Use speakers supporting bi-amping only� For
details, refer to the speakers' instruction manual�
Connecting Dipole Speakers
A dipole speaker is bidirectional speaker outputting the
same sound in two directions, for example forward and
backward�
aa
bb
TV
¼ Connections
An arrow for matching the phases () is marked on a
dipole speaker� Place the surround speakers (a) so that
their arrows ( ) point to the TV and the back speakers (b)
so that their arrows ( ) point to each other�
¼½ Phase: If the phases do not match due to mistake in speaker distance,
installation angle or positive/negative of wiring, sound image and sound
field may be unclear or hard of listening�
Connecting a Power Amplifier
You can connect a power amplifier to the unit and use the
unit as a pre-amplifier in order to produce a large volume
that cannot be output with the unit only� Connect the
speakers to the power amplifier� For details, refer to the
power amplifier's instruction manual�
¼ Connections
1� Connect as below using the PRE OUT terminals�
Power amplifier
● Set to suit the number of speaker channels connected�
– After pressing the RCV button, press the Setup
button on the remote controller� Select "2� Speaker"
- "Configuration" - "Speaker Channels" in order with
the cursors, and set the number of speaker channels�
