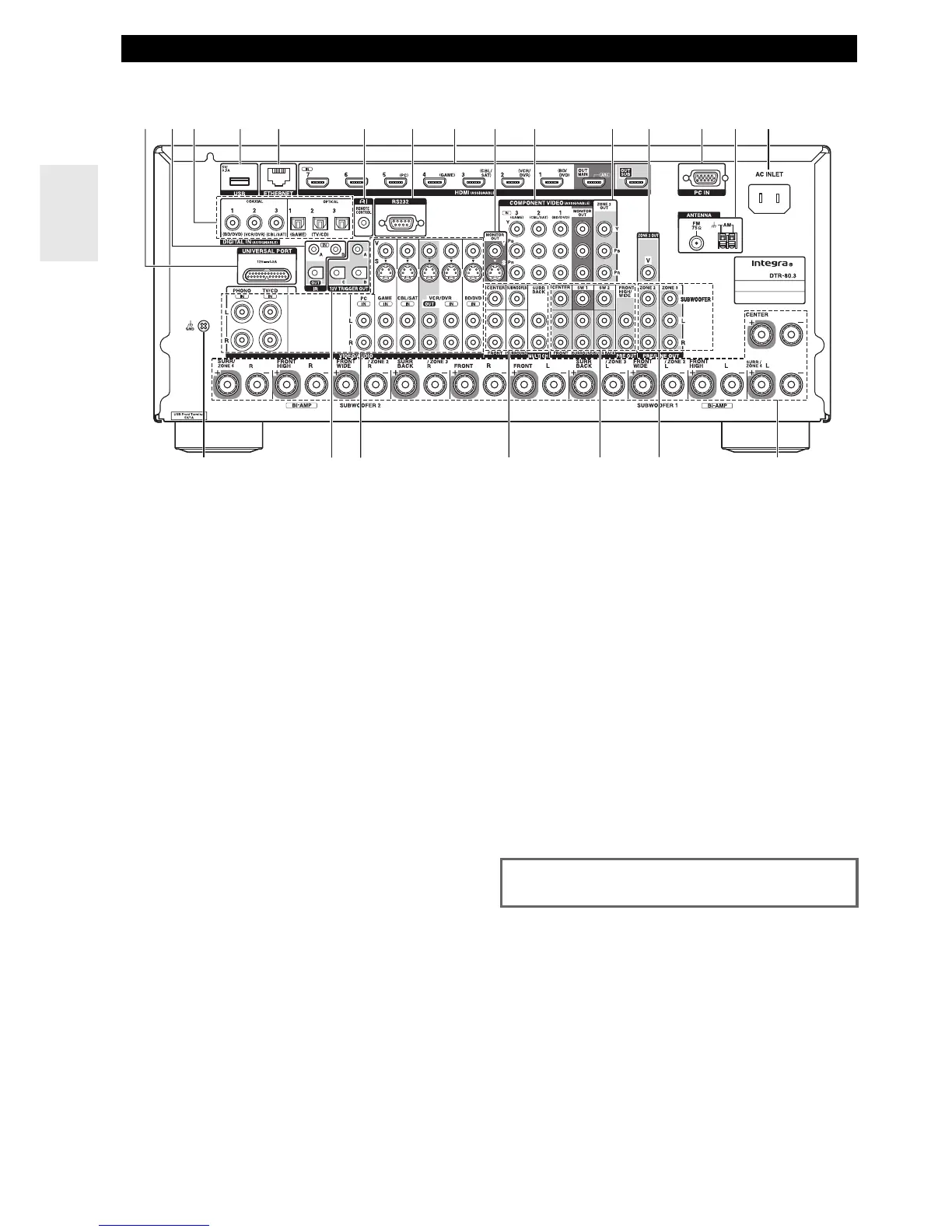

Integra DTR-80.3 - Rear Panel

10
En
Illustration based on DTR-80.3.
a UNIVERSAL PORT jack
b IR IN A/B and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 port
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k COMPONENT VIDEO ZONE 2 OUT jacks
l ZONE 2 OUT V jack
m PC IN jack
n FM ANTENNA jack and AM ANTENNA terminal
o AC INLET
p GND screw
q 12V TRIGGER OUT A/B/C jacks
r Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN and PHONO IN)
s MULTI CH input jacks
(FRONT L/R, CENTER, SURR
OUND L/R,
SURR BACK L/R and SUBWOOFER)
t PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2)
u ZONE 2 and ZONE 3 L/R/SUBWOOFER
PRE/LINE OUT jacks
v Speaker Terminals
(FRONT L/R, CENTER, SURR/ZONE 4 L/R,
SURR BACK/ZONE 3 L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)
Rear Panel
f g h j ki l nm
o
p
r s t
ed
u v
b
q
a c
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 21).
