6
The MLX light source delivers 300 was of cool white infrared (IR) filtered light. The lamp is housed in a lamp module that can
be easily serviced without special tools.
Set Up And Inspection Before Use
The light source comes with the hospital grade power cord packaged separately. Verify that both components are in good
condition.
This device should be used in environments that meet the operating environmental conditions in the specification section of
this manual.
Before turning power on to the light source, make sure the unit is plugged into any standard 100VAC to 240VAC 50-60Hz
(as appropriate) outlet. Grounding reliability is guaranteed only when connected to a “hospital grade” receptacle.
Allow a minimum of 2 inches (5.08 cm) clearance at the rear and sides of the unit for cooling air flow. Ensure that the unit is not
near air exhaust or against other equipment.
Operation

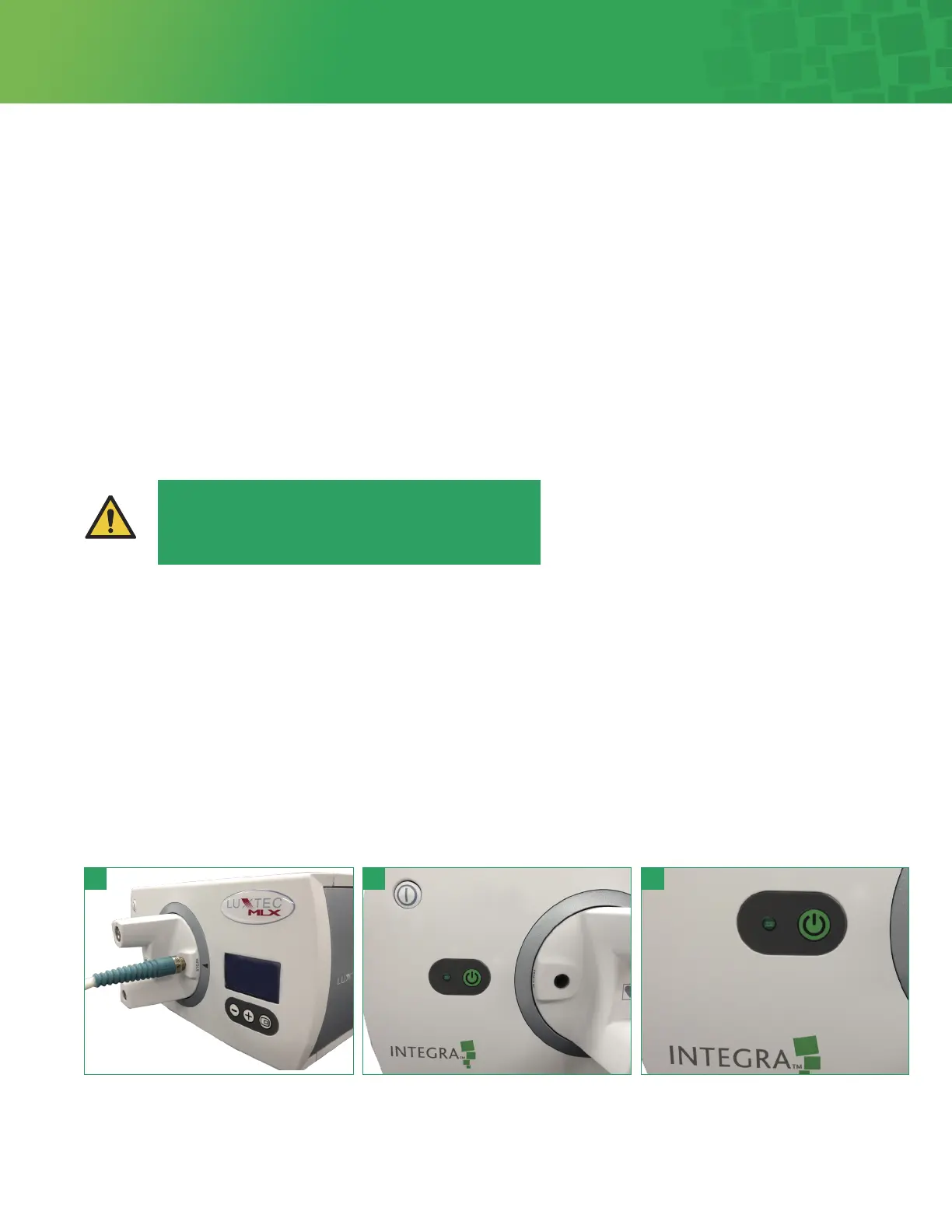

1. Insert a fiber optic cable in the proper port in the turret. The active port is indicated by a le facing arrow on the perimeter
of the turret (See Figure 1). Available ports are ACMI, Olympus, Storz and Wolf cable-compatible. All ports are identified
appropriately.
2. Press the Power Switch in the upper le corner of the front panel (See Figure 2).
3. When the Power Switch is pressed the Stand-by Light (Figure 3) will blink and there will be a 3 – 4 second delay before the
Xenon Lamp illuminates while the system does a self-diagnostic check.
4. Press the Stand-by Buon.
Overview
1 2 3
Warning
The MLX light source monitors air intake temperature
and will turn off if ambient temperature is > 40 C
