Intel Bay Trail Series

9

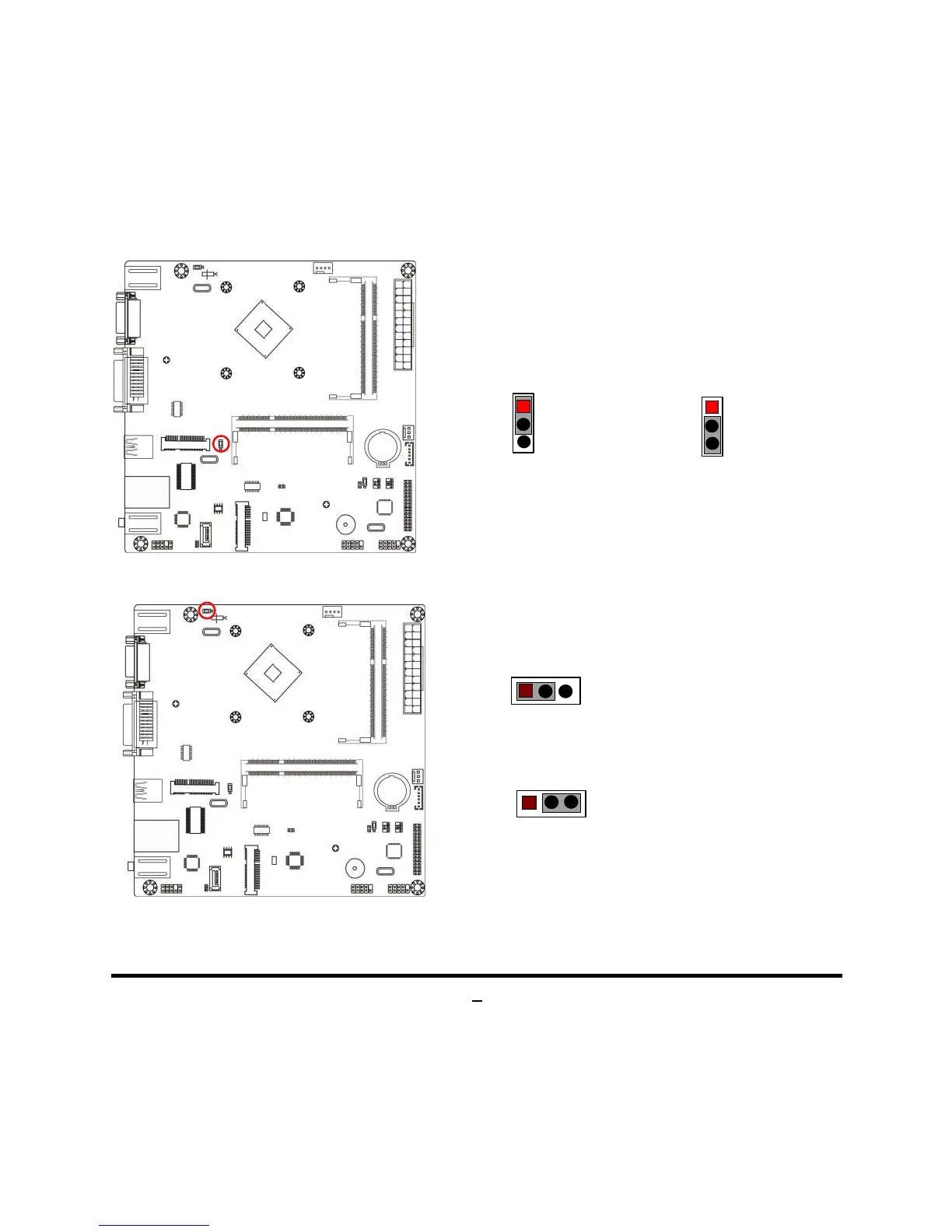

JP6 (3-pin):Mini-PCIE (MMPE) Slot VCC3.3V/3VSB Select
2-3 Closed：
MMPE = 3VSB；
JP6→MMPE Slot
1-2 Closed：
MMPE = +3.3V；
1
3
1
3
JP8 (3-pin): KB/MS Power on Function Select
2-3 Closed: KB/MS Power on Enabled.
JP8
1-2 Closed: KB/MS Power on Disable;
1
3
3
1
