Intel Bay Trail Series User Manual

30

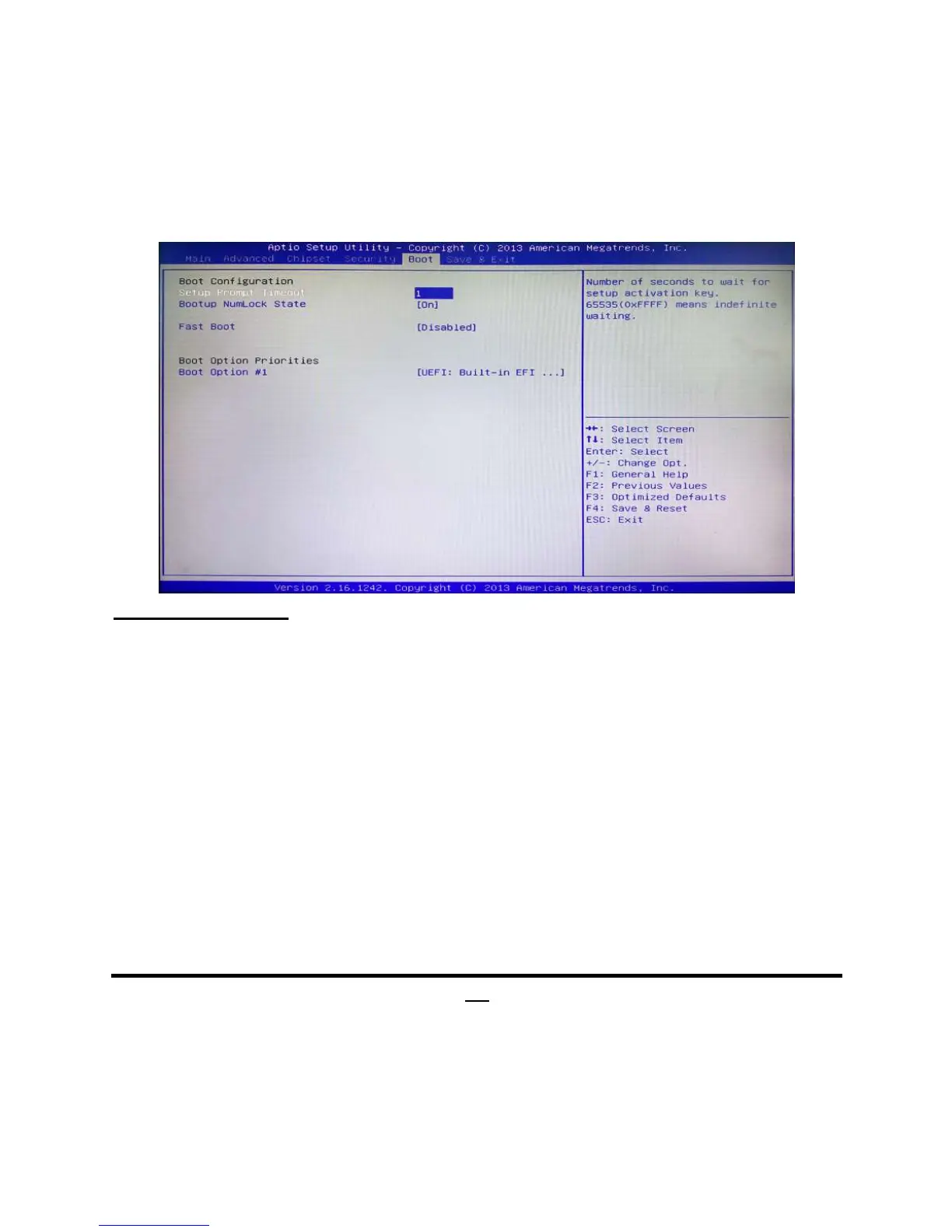

3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Fast Boot
The optional settings are: [Enabled]; [Disabled].
When set as [Enabled], user can make settings in the following items that appear:
VGA Support
The optional settings are: [Auto]; [EFI Driver].
*When set as [Auto], it will only install Legacy OpROM with Legacy OS and logo
will not be shown during POST. EFI driver will still be installed with EFI OS.
USB Support
The optional settings are: [Disabled]; [Full Initial]; [Partial Initial].
[Disabled]: All USB devices will NOT be available until after OS boot;
[Partial Initial]: USB mass storage and specific USB port/device will NOT be

Intel Bay Trail Series Specifications

General

Memory Type	DDR3L
Max Memory Size	8 GB
Graphics Output	HDMI, DisplayPort, VGA
USB Ports	USB 3.0, USB 2.0
SATA Ports	SATA 3.0
PCI Express Revision	2.0
TDP	4.5-10 W
Chipset	Integrated
